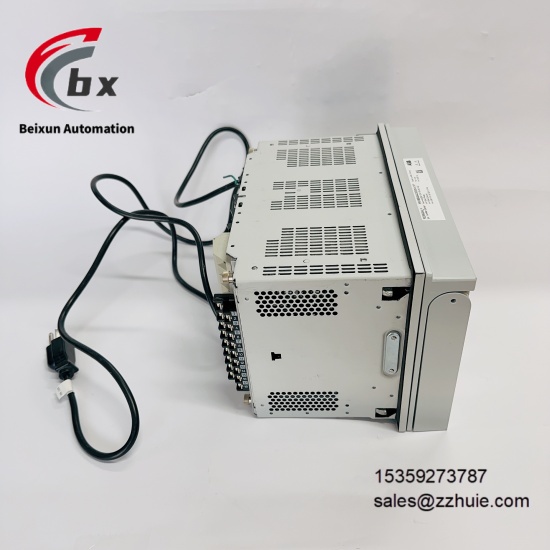

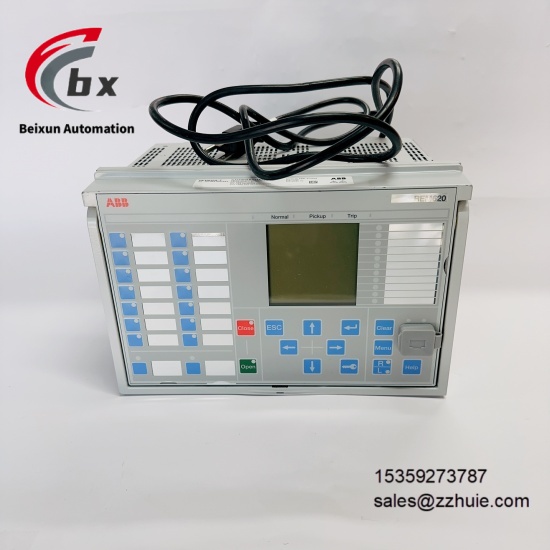

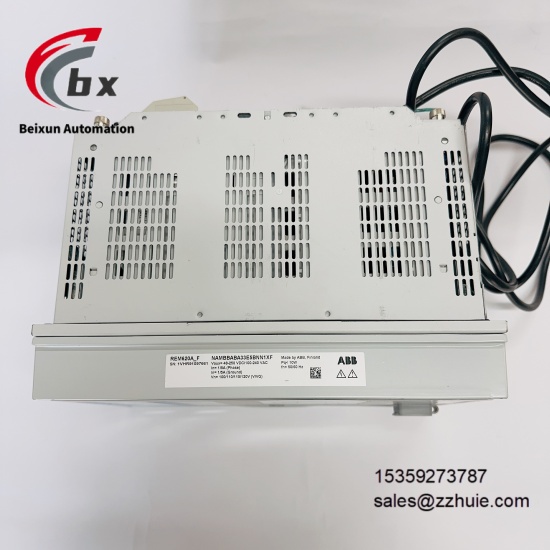

ABB REM620A_F NAMBBABA33E5BNN1XF Motor protection and control relay

ABB REM620A_F NAMBBABA33E5BNN1XF Motor protection and control relay

Specific Parameters​

Core and Function Parameters​

Product Type Motor Protection and Control Relay​

Manufacturer ABB​

Model REM620A_F NAMBBABA33E5BNN1XF​

Series Relion® 620 Series​

Protection Functions Over-current Protection, Overload Protection, Short-circuit Protection, Under-frequency Protection, Earth Fault Protection, Motor Differential Protection, Arc Flash Detection (AFD)​

Monitoring Functions Motor Temperature Monitoring, Operation Status Supervision, Fault Recording and Localization​

Input Interfaces Up to 14-channel RTD Input, Analog Input (4-20mA)​

Output Interfaces Programmable Relay Output, Digital Output​

Terminal Blocks Ring Terminal Blocks (all input and output channels)​

Communication Interfaces Ethernet Interface, Serial Communication Interface​

Supported Protocols IEC 61850 (Ed1/Ed2), Modbus, DNP3, IEC 60870-5-103, supports HSR/PRP Redundancy Protocols, GOOSE Messaging​

Synchronization Function Supports IEEE 1588 V2 Precision Time Protocol​

Operation Methods Local Programmable Buttons, Browser-based HMI, Remote Software Configuration​

Installation Methods DIN Rail Mounting, Panel Mounting​

Certification Standards CE, IEC Relevant Standards, RoHS​

Status Indication Large Graphical LCD Display, LED Status Indicators​

Electrical and Performance Parameters​

Rated Voltage 10kV-36kV (system voltage)​

Rated Current 1A-6000A (compatible with conventional instrument transformers or sensors)​

Breaking Capacity 10kA​

Measurement Accuracy Current Measurement ±0.2% full scale, Temperature Measurement ±0.1% full scale​

Response Time Fault Protection Action ≤10ms​

Communication Rate Ethernet up to 1Gbps, Serial Communication up to 115.2kbps​

Power Supply Voltage 24V DC/110V DC/220V DC (wide-range compatible)​

Power Consumption Typical 15W, Maximum 20W​

Isolation Level 3-way Isolation (Input-Output-Power), Isolation Voltage 2500V AC/1min​

Common Mode Rejection Ratio ≥90dB (50/60Hz)​

Physical and Environmental Parameters​

Overall Dimensions 145mm×190mm×240mm (L×W×H)​

Weight Approximately 1.8kg​

Operating Temperature Range 0°C to 85°C​

Storage Temperature Range -40°C to 85°C​

Relative Humidity 0%-95% (non-condensing, no dew)​

Protection Rating IP20 (per IEC 60529)​

Housing Material Flame-retardant ABS Plastic (UL94 V-0 Grade)​

Vibration Resistance 10-500Hz, 1.5G (30min per X/Y/Z axis)​

Shock Resistance 25G (11ms, 3 times per X/Y/Z axis)​

Product Performance​

Integrates multiple precise protection functions, covering fault scenarios during the entire motor operation stage, with fast fault action response and extremely high protection reliability​

14-channel RTD input combined with high-precision temperature measurement, real-time monitoring of motor windings and bearing temperature to prevent overheating damage​

Supports multi-protocol redundant communication and precise time synchronization, ensuring stable and uninterrupted data transmission to meet the needs of complex power grid dispatching​

Withdrawable plug-in design and ring terminal blocks, easy installation and disassembly, strong wiring reliability and high operation and maintenance efficiency​

Large graphical display and browser-based HMI, supporting custom interfaces and local/remote operation with excellent usage flexibility​

Wide voltage adaptation and industrial-grade isolation design, effectively resisting electromagnetic interference and maintaining stable performance in harsh industrial environments​

Supports function expansion and personalized configuration, enabling flexible customization of protection logic according to motor type and application scenario​

Fault recording and quick localization functions, facilitating operation and maintenance personnel to trace the cause of faults and shorten downtime​
