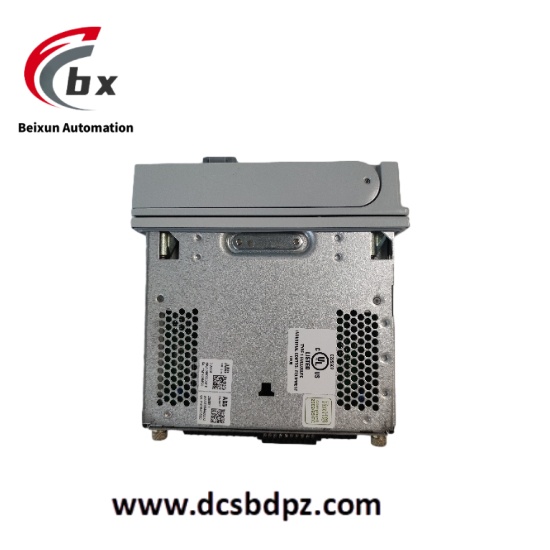

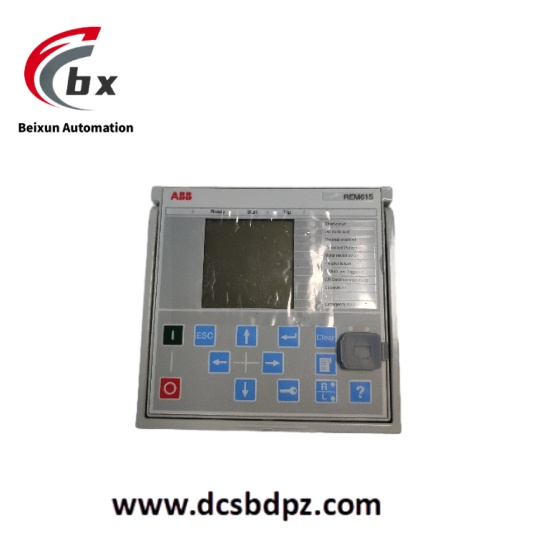

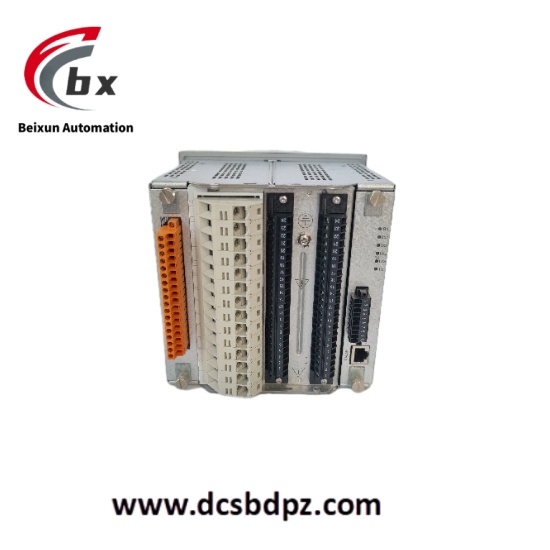

ABB REM615 HBMCAEAGANB6ANN1XG Digital motor protection relay
ABB REM615 HBMCAEAGANB6ANN1XG is a digital motor protection relay belonging to the ABB Relion series, designed specifically for protection, control and monitoring of medium and high voltage motors. The device integrates multiple protection functions, which can quickly detect and clear faults such as overload, short circuit, locked rotor, phase loss and grounding of motors. It also has real-time measurement, data recording and communication functions to ensure the safe and stable operation of motors. Its design meets industrial standards and can be directly installed in motor control cabinets or switchgear.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB REM615 HBMCAEAGANB6ANN1XG Digital motor protection relay
Specific Parameters
- Rated power supply voltage: 220V DC/110V DC (optional).
- Allowable range of power supply voltage: 85%-110% of rated voltage.
- Power consumption: Maximum 20W.
- Operating temperature range: -25°C to +70°C.
- Storage temperature range: -40°C to +85°C.
- Relative humidity: 5%-95% (non-condensing).
- Protection class: IP40 (device body).
- Rated current: 1A/5A (optional).
- Rated voltage: 100V (line voltage)/57.7V (phase voltage).
- Protection operation time: Short circuit protection ≤30ms, overload protection configurable (inverse time characteristic).
- Communication interfaces: 1 Ethernet interface (10/100Mbps), 1 RS485 interface (supporting IEC 60870-5-103, Modbus protocols).
- Analog inputs: 3 current inputs, 3 voltage inputs.
- Digital inputs/outputs: 12 digital inputs, 8 relay outputs.
- Measurement accuracy: Current/voltage ±0.2%, power ±0.5%.
- Dimensions: 180mm×140mm×120mm (length×width×height).
- Weight: 1.5kg.
Product Performance
- Comprehensive protection: Equipped with multiple protection functions such as overload, short circuit, locked rotor, phase loss and grounding, which can specifically defend against various motor faults and reduce the risk of equipment damage.
- Accurate measurement: Real-time monitoring of motor current, voltage, power, temperature and other parameters with high measurement accuracy, providing reliable data for operation status evaluation.
- Fast response: Fast fault detection and action speed, which can cut off the power supply in time before the fault expands, minimizing the impact of faults.
- Flexible control: Supports local and remote control, enabling motor start, stop, reset and other operations, with logic locking function to prevent misoperation.
- Reliable communication: Supports multiple power communication protocols, enabling access to substation automation systems or SCADA systems for data upload and remote configuration.
- Self-diagnosis: Built-in hardware and software self-inspection functions, which can monitor the operation status of the device and issue alarm signals when abnormalities occur, facilitating maintenance.
