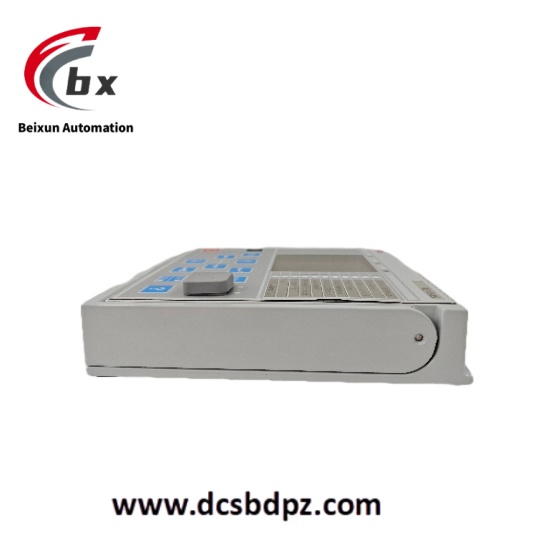

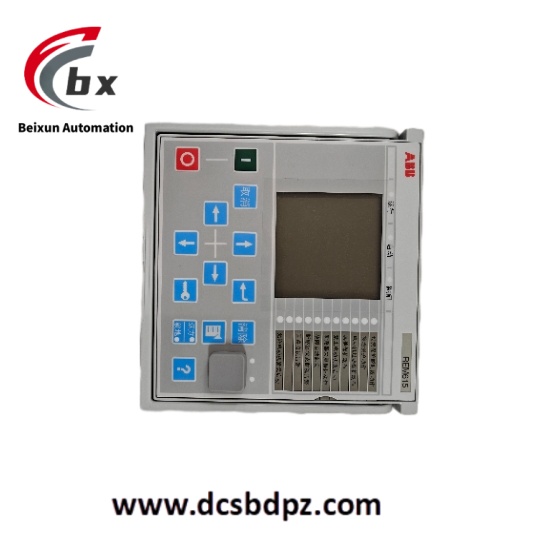

ABB REM615 Comprehensive protection and measurement device
ABB REM615 is a dedicated intelligent electronic device (IED) for motor protection and control. It belongs to the 615 protection and control series of ABB's Relion® product family and is mainly used in the manufacturing and process industries to protect, control, measure, and supervise asynchronous motors. The product adopts a withdrawable plug - in unit design, which is convenient for quick installation and testing. It has a large - sized graphical display, which supports local operation and can also be accessed through a convenient web - browser - based human - machine interface, and the display content can be customized.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB REM615 Comprehensive protection and measurement device
Specific Parameters
- Rated voltage: Up to 690V
- Rated current: Up to 6000A
- Dimensions:
- Width (frame): 177mm
- Width (case): 164mm
- Height (frame): 177mm (4U)
- Height (case): 160mm
- Depth: 201mm (153 + 48mm)
- Weight:
- Weight of complete IED: 4.1kg
- Weight of plug – in unit: 2.1kg
- Binary inputs:
- Operating range: ±20% of the rated voltage
- Rated voltage: 24…250V DC
- Current drain: 1.6…1.9mA
- Power consumption: 31.0…570.0mW
- Threshold voltage: 18…176V DC
- Reaction time: 3ms
- Signal outputs and IRF output:
- Rated voltage: 250V AC/DC
- Continuous contact carry: 5A
- Make and carry for 3.0 s: 10A
- Make and carry for 0.5 s: 15A
- Breaking capacity (L/R < 40 ms) at 48/110/220V DC: 1A/0.25A/0.15A
- Minimum contact load: 100mA at 24V AC/DC
- Power output relays:
- Rated voltage: 250V AC/DC
- Continuous contact carry: 5A
- Make and carry for 3.0 s: 15A
- Make and carry for 0.5 s: 30A
- Breaking capacity (L/R < 40 ms) at 48/110/220V DC: 1A/0.25A/0.15A
- Minimum contact load: 100mA at 24V AC/DC
- Communication protocols: Supports IEC 61850 editions 1 and 2 (including HSR and PRP, GOOSE messaging and IEC 61850 – 9 – 2 LE), IEEE 1588 v2, Modbus, DNP3 and IEC 60870 – 5 – 103 communication protocols
Product Performance
- Comprehensive protection functions: Provides a variety of protection functions including overload, earth fault, thermal overload, underload, broken conductor, single phasing, reverse power and voltage dip, etc., to ensure the safe operation of the motor.
- Diverse control functions: Covers motor starting, stopping, jogging, manual/automatic transfer, and load shedding control functions to meet the needs of different application scenarios.
- Accurate measurement and monitoring: Can accurately measure parameters such as motor current, voltage, power, energy, power factor, and frequency, and conduct real – time monitoring.
- Good communication capabilities: Facilitates data interaction with other devices through support for multiple communication protocols, enabling system integration and remote monitoring.
- Flexible configuration: Has ready – made standard configurations and can also be customized according to actual needs, allowing for quick and easy setup
