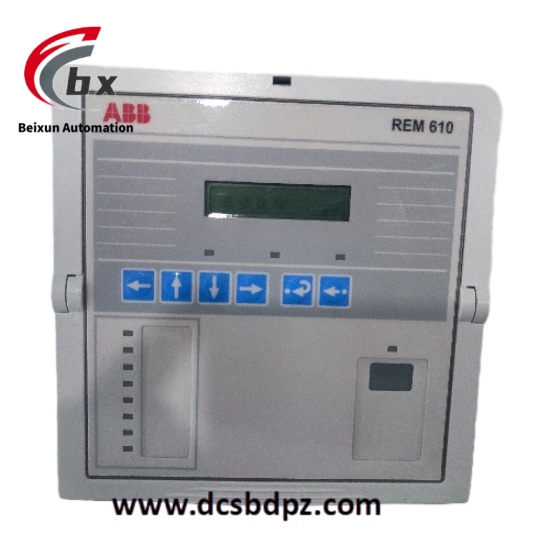

ABB REM610 Digital feeder protection relay
ABB REM610 is a digital feeder protection relay belonging to the ABB Relion series, designed for protection, control and monitoring of feeders in medium and low voltage distribution networks. The device integrates multiple protection functions, which can quickly detect and isolate faults such as short circuit, overload, grounding, overvoltage and undervoltage of feeders. It also has real-time measurement, event recording and communication functions to ensure the safe and stable operation of the distribution network. Its design meets industrial standards and can be directly installed in distribution switchgear or control cabinets.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB REM610 Digital feeder protection relay
Specific Parameters
- Rated power supply voltage: 220V DC/110V DC/230V AC (optional).
- Allowable range of power supply voltage: 85%-110% of rated voltage.
- Power consumption: Maximum 15W.
- Operating temperature range: -25°C to +70°C.
- Storage temperature range: -40°C to +85°C.
- Relative humidity: 5%-95% (non-condensing).
- Protection class: IP40 (device body).
- Rated current: 1A/5A (optional).
- Rated voltage: 100V (line voltage)/57.7V (phase voltage).
- Protection operation time: Short circuit protection ≤30ms, overload protection follows inverse time characteristic (configurable).
- Communication interfaces: 1 Ethernet interface (10/100Mbps), 1 RS485 interface (supporting IEC 60870-5-103, Modbus protocols).
- Analog inputs: 3 current inputs, 3 voltage inputs.
- Digital inputs/outputs: 12 digital inputs, 8 relay outputs.
- Measurement accuracy: Current/voltage ±0.2%, power ±0.5%.
- Dimensions: 170mm×130mm×110mm (length×width×height).
- Weight: 1.2kg.
Product Performance
- Comprehensive protection: Covers all types of faults in feeder operation, with configurable protection logic to adapt to different distribution network architectures.
- Accurate measurement: Real-time collection of current, voltage, power and other electrical parameters, and the measured data can be directly used for metering and network status analysis.
- Fast response: Adopts high-speed signal processing technology to ensure the timeliness of fault detection and protection actions, reducing the scope of fault impact.
- Reliable communication: Supports multiple industrial communication protocols, enabling seamless connection with distribution automation systems and SCADA systems for remote monitoring and control.
- Strong anti-interference: Complies with IEC 61000-4 series electromagnetic compatibility standards, maintaining stable operation in strong electromagnetic environments to avoid misoperation or refusal to operate.
- Comprehensive self-inspection: Has the function of self-inspection for hardware, software and input circuits, automatically alarms and records information when abnormal, simplifying maintenance processes.
