ABB REF615A_1G HAFNAEFCBGC1BQK11G Feeder protection relay

ABB REF615A_1G HAFNAEFCBGC1BQK11G Feeder protection relay

Specific Parameters

Brand ABB (Swiss Brand)

Product Series ABB REF615 Series Feeder Protection Relay

Product Type Industrial-Grade Medium and Low-Voltage Feeder Protection Relay

Model REF615A_1G HAFNAEFCBGC1BQK11G

Compatible System Feeder circuits in medium and low-voltage power distribution systems, voltage level 1kV-35kV

Supply Voltage 85V-265V AC/DC, rated power consumption ≤15VA

Measurement Accuracy Current ±0.2%, Voltage ±0.2%, Power ±0.5%

Operating Temperature Range -40℃ to +70℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, no condensation

Protection Level IP54 (Front Panel), IP20 (Back Panel)

Installation Method Panel Mounting, 19-inch Rack Mounting

Communication Protocols Supports IEC 61850, Modbus RTU/TCP, DNP3.0

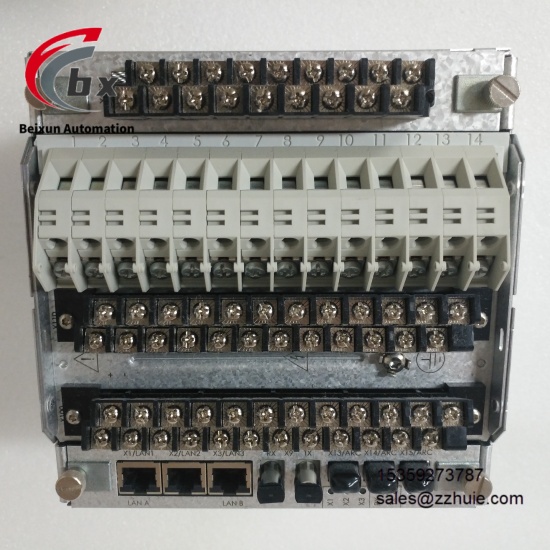

Communication Interfaces 2 Ethernet interfaces, 1 RS485 interface

Digital Input 8 passive contact inputs, 2 active inputs

Relay Output 4 trip outputs, 2 signal outputs, contact capacity 10A/250VAC

Fault Recording Supports 100 event records, maximum recording duration 60 seconds

Physical Dimensions 144mm×144mm×180mm (Width×Height×Depth)

Physical Weight 1.2kg

Origin Switzerland

Product Performance

Integrated with multiple fault protection functions, it can accurately identify fault types such as overload, short circuit and ground fault, with a trip response time of ≤50 milliseconds, effectively limiting fault expansion and reducing the risk of equipment damage.

±0.2% high-precision power measurement capability can real-time monitor key electrical parameters such as current, voltage and power, providing accurate data support for operation and maintenance and energy efficiency analysis of power distribution systems.

Compatible with multi-protocol communication and standardized interfaces, it can be seamlessly connected to intelligent power distribution automation systems to realize remote parameter setting, fault query and status monitoring, improving operation and maintenance efficiency.

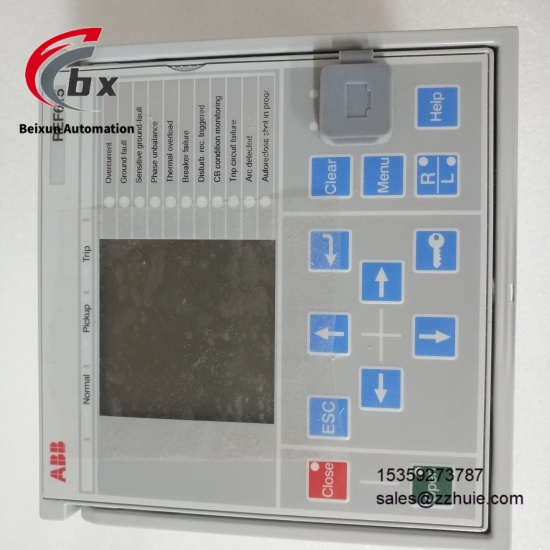

Modular hardware design facilitates on-site function expansion and component replacement. The graphical operation interface with Chinese display simplifies the debugging process and reduces the operation threshold.

Wide temperature tolerance of -40℃ to +70℃ and IP54 protection level can resist high temperature, low temperature, dust and humid environments, adapting to complex power distribution scenarios such as industrial plants and substations.

Equipped with fault recording and event logging functions, it can completely trace the changes of electrical parameters before and after faults, providing a reliable basis for fault cause analysis and shortening fault troubleshooting time.

Supports online parameter setting and self-diagnosis functions, enabling parameter adjustment and fault early warning without shutdown, ensuring continuous operation of the power distribution system and reducing shutdown losses.

Multiple anti-interference designs comply with IEC 61000 series standards, which can effectively resist electromagnetic interference and voltage fluctuations, ensuring the reliability and accuracy of protection actions under complex working conditions.
