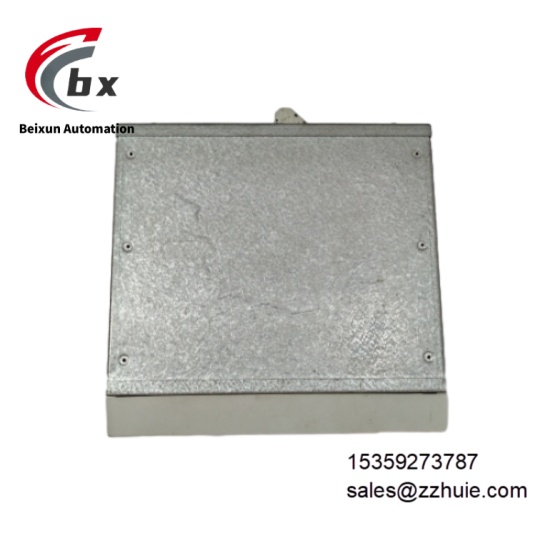

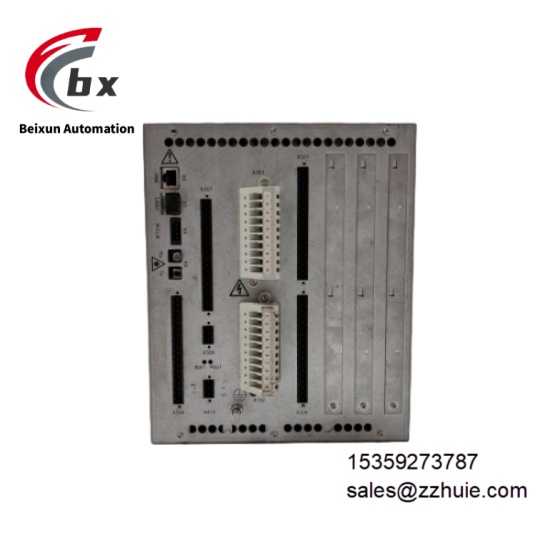

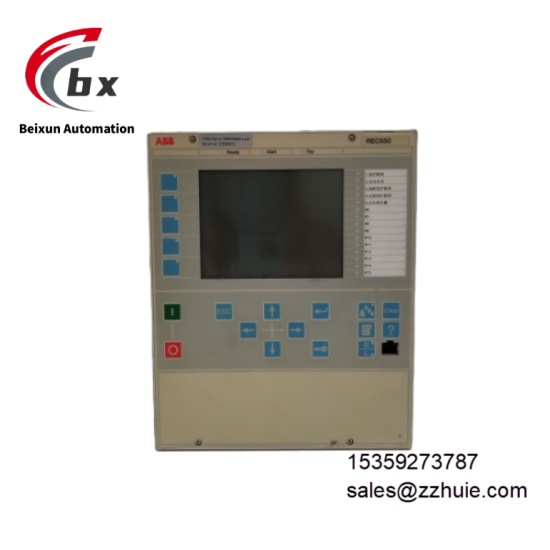

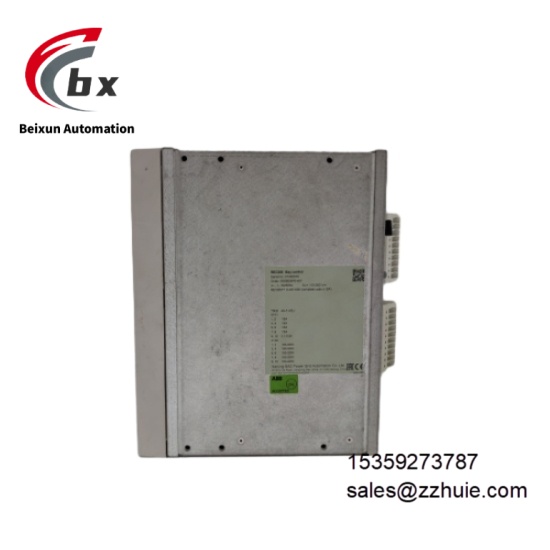

ABB REC650 1MRK008514-AA Control intelligent electronic devices

ABB REC650 1MRK008514-AA Control intelligent electronic devices

Specific Parameters

• Electrical ParametersSupply Voltage: Supports wide-range input of 48/60/110/125V DC or 100/110/120/220/240V AC (50/60Hz)Power Consumption: ≤30W under normal operation, ≤45W under maximum loadDigital I/O: 14 isolated digital inputs (24V DC), 9 isolated digital outputs (relay output, rated 250V AC/DC, 15A 3s current-carrying capacity)Analog Measurement: Supports 10 current inputs and 5 voltage inputs, with measurement range adapted to conventional power system rangesCommunication Interfaces: 2 Gigabit Ethernet, 1 RS-485, 1 USB local interface, 1 IRIG-B time synchronization interfaceSupported Protocols: IEC 61850 Ed 2.1 (including GOOSE, SV), Modbus RTU/TCP, DNP 3.0Isolation Level: Isolation voltage ≥2500V AC (1min) between input/output and system circuits, insulation resistance ≥100MΩ (500V DC)Protection Functions: Control circuit disconnection monitoring, relay output overcurrent protection, power reverse connection protection
• Environmental ParametersOperating Temperature: -40°C to 70°C (non-condensing)Storage Temperature: -40°C to 85°CRelative Humidity: 5% to 95% (non-condensing, continuous operation for 168 hours at 90% humidity and 40°C without failure)EMC Immunity: Complies with EN 60255-26 standard, ESD protection ±15kV (air discharge), ±8kV (contact discharge)Vibration Resistance: 10-500Hz, 1.5g acceleration (IEC 60068-2-6 standard, sinusoidal vibration, 2 hours for X/Y/Z axes each)Certification Standards: CE certification (EMC and safety), UL 61850 certification, compliant with IEC 61850 standard
• Mechanical ParametersDimensions: 220mm (W) × 265.9mm (H, 6U) × 249.5mm (D)Weight: Chassis weight <10kg, local HMI unit weight 1.3kgMounting Method: 19-inch standard rack mounting (6U height)Housing Material: Flame-retardant reinforced plastic (UL 94 V-0 grade)Indicators: 3 pages of dynamic tri-color LED indicators (15 per page), indicating device status, fault alarms, and I/O signals respectively

Product Performance

The module’s logic processing cycle can be configured as 5ms, 20ms or 100ms, supporting access of 8 merging units to meet process layer data acquisition requirements. Voltage measurement accuracy is ≤±0.5% full scale, current measurement accuracy ≤±1.0% full scale, frequency measurement range 45-65Hz with accuracy ±0.01Hz.

It adopts GOOSE communication for inter-bay interlocking, with interlocking response time <1ms. It supports inter-bay interlocking and equipment reservation operation functions to prevent misoperation. Event recording resolution is 1ms, capable of storing 1000 event records and 100 disturbance recording data, with maximum recording duration up to 3.4s.

Built-in intelligent diagnosis module can detect 20 types of faults such as power abnormality, communication interruption, and I/O channel failure, with diagnostic coverage rate ≥99%. Fault information is uploaded to the background system in real time via Ethernet. Mean Time Between Failures (MTBF) is ≥1,000,000 hours (25℃ environment), supporting online configuration download and parameter modification, with configuration update time ≤30 seconds.
