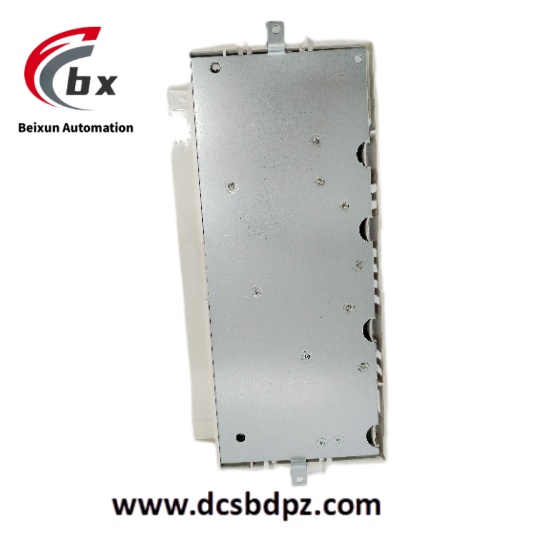

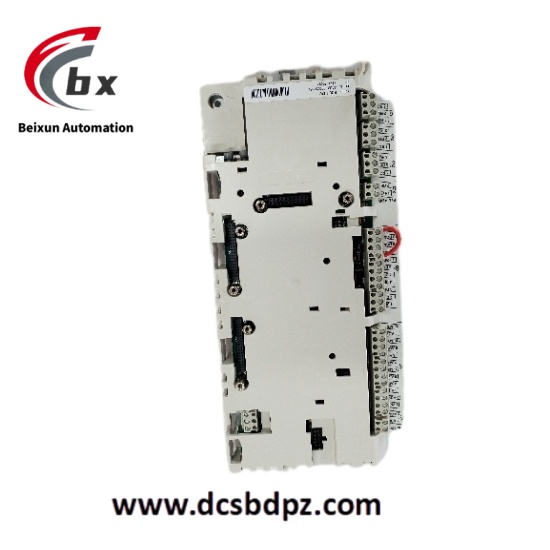

ABB RDCU-12C 3AUA0000036521 Relay output control module
ABB RDCU - 12C 3AUA0000036521 is a control unit for the ACS800 series of inverters. In ACS800 motor drive applications, it assigns different functions to analog and digital I/O channels, such as control, monitoring, and measurement (e.g., motor temperature). By providing additional analog and digital I/O connections, relay outputs, etc., this control unit can expand the I/O functionality of the ACS800 drive.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB RDCU-12C 3AUA0000036521 Relay output control module
Specific Parameters
- Analog inputs: 3, with differential input, common – mode voltage ±15V, galvanically isolated as a group. One has an input range of ±0(2) to 10V with a resolution of 12 bits; two have an input range of 0(4) to 20mA with a resolution of 11 bits.
- Analog outputs: 2, with an output range of 0(4) to 20mA and a resolution of 10 bits.
- Digital inputs: 7, galvanically isolated as a group (can be split into two groups), input voltage 24V DC, hardware filtering time 1ms.
- Digital (relay) outputs: 3, change – over contacts, supporting 24V DC or 115/230V AC, maximum continuous current 2A.
- Reference voltage output: ±10V ± 0.5%, maximum output current 10mA.
- Auxiliary power supply output: +24V ± 10%, maximum output current 250mA.
- Dimensions: 110mm in width, 100mm in height, 75mm in depth.
- Weight: Approximately 415g.
Product Performance
- Efficient data processing: Has data acquisition and processing functions, capable of real – time monitoring and control of the inverter’s operating status, effectively ensuring stable equipment operation.
- Flexible control: Supports multiple control methods such as multi – loop control, sequential control, batch control, and optimization control, meeting the complex needs of industrial automation.
- Multi – language programming: Supports multiple control languages such as function codes, C language, Basic Batch90, and Ladder, facilitating users to program and control according to actual needs.
- High compatibility: Supports Harmony Block and Rack I/O systems, provides a new high – fault – tolerance redundant interface HNER for Block, occupying only a single slot, improving system reliability and stability.
- Fast communication: Has a fast communication processing speed, can achieve one – to – one redundant peer – to – peer communication, is compatible with existing processors, and can be configured online, facilitating users to integrate and expand the system.
