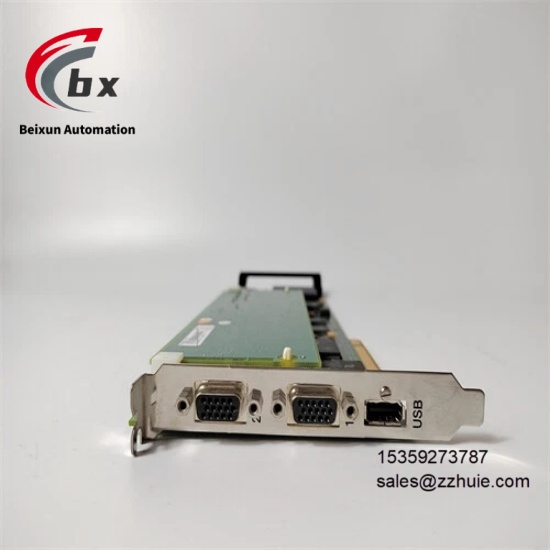

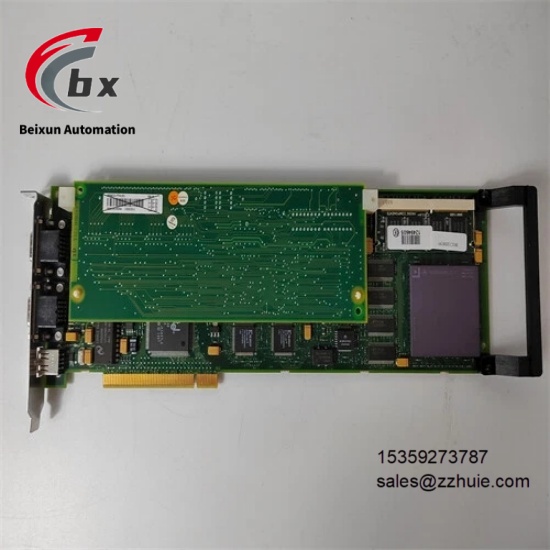

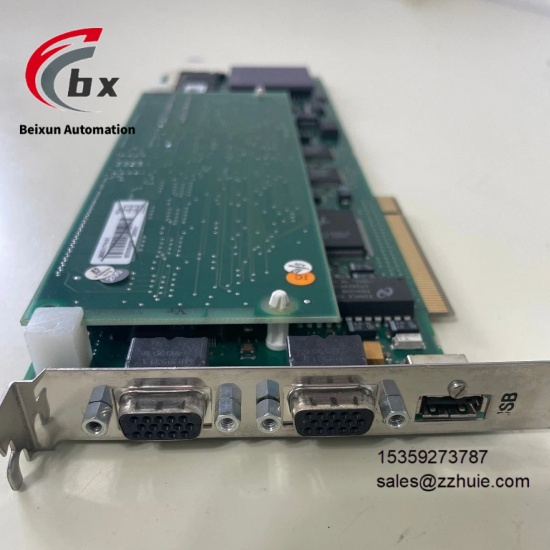

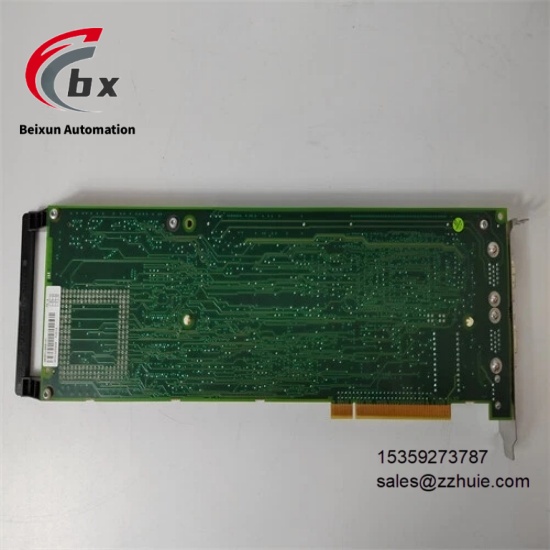

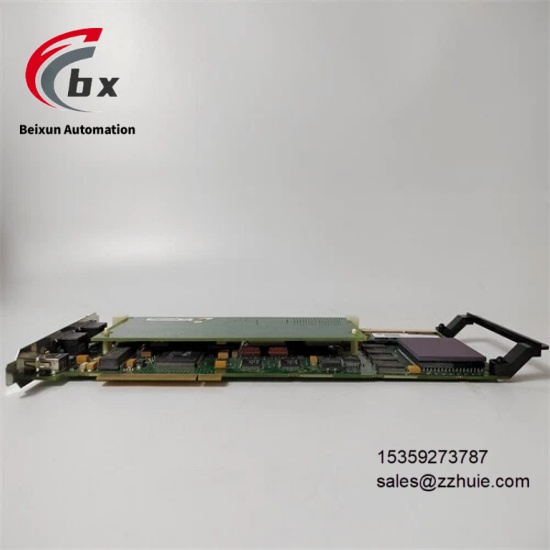

ABB PU519 3BSE018681R1 Real time accelerator (RTA) board

ABB PU519 3BSE018681R1 Real time accelerator (RTA) board

Specific Parameters

Brand ABB (ABB Group)

Product Series ABB Advant Series

Product Type Real-Time Accelerator (RTA) Board, Controller Module, ABB Original Spare Part

Model and Order No. ABB PU519 (Order No.: 3BSE018681R1)

Country of Origin Switzerland (Produced by ABB original factory)

Compatible Devices ABB AC450 Controller, Advant Station 520 OS Operator Station, Advant OCS Control System, Distributed Control System (DCS)

Core Functions Real-Time Data Processing, Control System Optimization, Accelerating Control Algorithm Execution, High-Speed Sampling

Bus Support Dual-Channel MB300 Bus, Transmission Rate 10Mbit/s

Processor High-Speed DSP/FPGA Processor

Operating Temperature Range -40℃ to +70℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Physical Dimensions 310mm×142mm×245mm

Physical Weight 0.4kg

Communication Interfaces Standard RS-232C Interface, Optional GPIB, USB, Printer Port Interfaces

Power Supply Voltage AC 100V~240V, 47~63Hz

Input Voltage DC 24V±20%

Output Voltage DC 24V

Maximum Output Current 1.5A

Product Material Industrial-Grade Flame-Retardant Plastic Housing, High-Temperature Resistant Insulation Material

Customizable No

Certification Standards Complies with CE, IEC Relevant Certification Standards

Warranty Period 12 Months

Product Performance

ABB PU519 (Order No.: 3BSE018681R1) is an original ABB device with strong adaptability, which can be seamlessly integrated into various ABB distributed control systems and automation equipment, with convenient installation and maintenance. The product has outstanding real-time processing capability and fast response speed, can quickly capture and analyze changes in process signals and feed them back to the control system in a timely manner, supports multi-channel data acquisition and processing, and improves system integration and data processing efficiency. Made of high-quality components, the product has a solid structure, strong anti-electromagnetic interference ability, can operate continuously and stably in harsh industrial environments, has a complete self-diagnosis function, can realize remote diagnosis and maintenance, and effectively improve the real-time performance and reliability of the control system.
