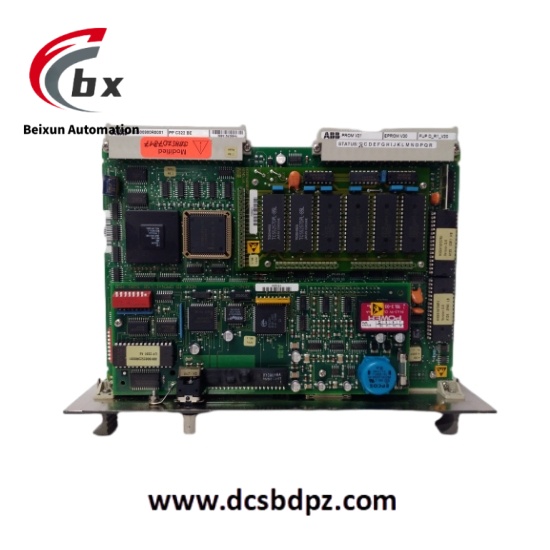

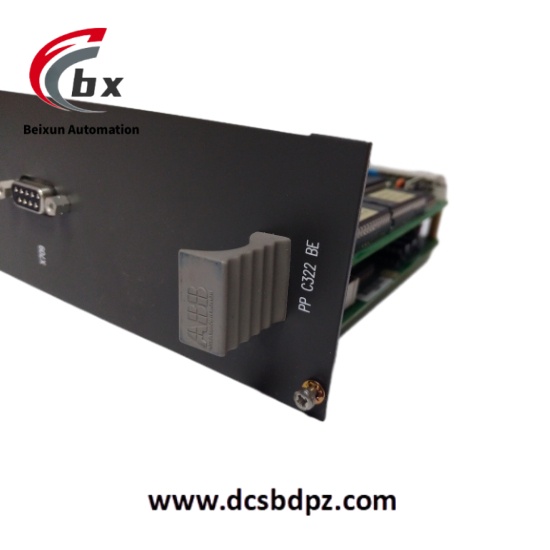

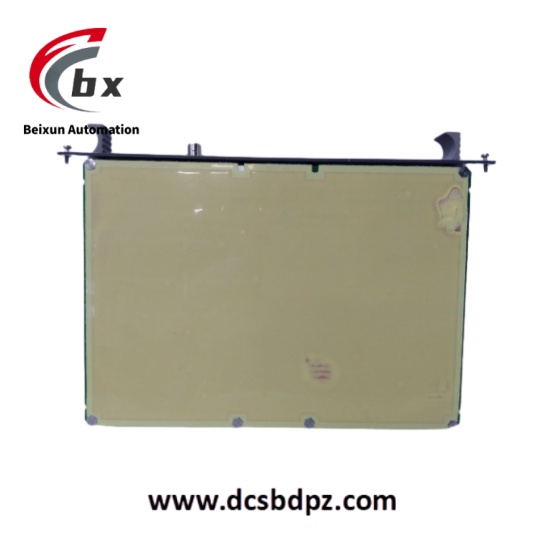

ABB PPC322BE HIEE300900R0001 Process Control Module
ABB PPC322BE HIEE300900R0001 is an industrial-grade process control module designed for closed-loop control of complex industrial processes. The module integrates data acquisition, logic operation and control output functions, and can connect various process sensors such as temperature, pressure and flow meters. It adjusts actuator parameters in real time through built-in PID algorithms to achieve precise control of industrial processes, suitable for continuous production scenarios requiring stable process parameters.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB PPC322BE HIEE300900R0001 Process Control Module
Specific Parameters
- Analog input channels: 8 channels (supports 4-20mA, 0-10V, thermocouple, RTD)
- Analog output channels: 4 channels (supports 4-20mA, 0-10V)
- Digital input channels: 16 channels (24V DC)
- Digital output channels: 8 channels (24V DC, 2A per channel)
- Control algorithms: PID, feedforward control, proportional control, integral separation control
- Sampling period: Minimum 10ms
- Control accuracy: ±0.2% full scale
- Power supply voltage: 24V DC±10%
- Power consumption: Maximum 18W
- Operating temperature range: -20°C to +60°C
- Storage temperature range: -40°C to +85°C
- Protection class: IP20
- Dimensions: 180mm×120mm×80mm
- Weight: 1.2kg
- Communication interfaces: PROFINET, Modbus RTU, EtherNet/IP
Product Performance
- High-precision process control: Control accuracy reaches ±0.2% full scale, combined with 10ms sampling period, it can quickly respond to process parameter fluctuations and stabilize temperature, pressure and other indicators within ±0.5% of the set value.
- Flexible algorithm adaptation: Supports multiple algorithms such as PID and feedforward control, and can customize control logic through dedicated software to adapt to different process requirements such as batch reaction and continuous stirring.
- Multi-signal integrated processing: 8 analog inputs and 16 digital inputs can collect signals from multiple types of sensors at the same time, realizing multi-parameter coordinated control and simplifying system wiring.
- Wide temperature stable operation: Performance does not 衰减 within the operating temperature range of -20°C to +60°C, and electromagnetic interference resistance meets EN 61000-6-2 standards, adapting to complex electromagnetic environments in factories.
- Convenient system linkage: Real-time communication with PLC and SCADA systems through PROFINET and other protocols, supporting remote parameter modification and status monitoring, improving the efficiency of production line automation integration.
