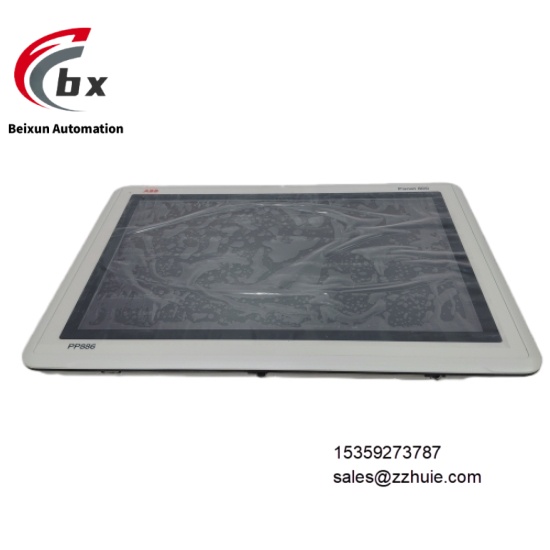

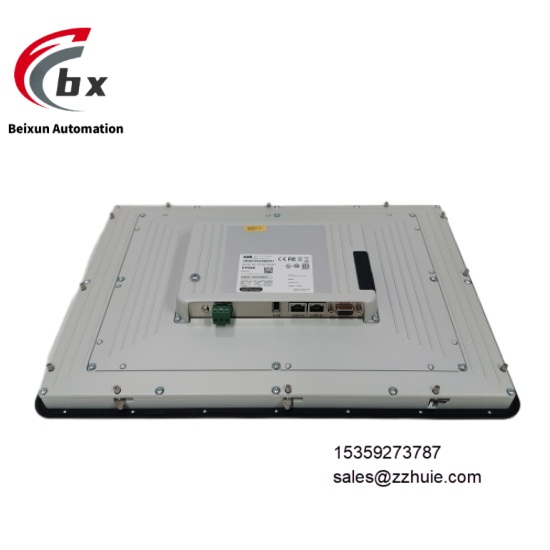

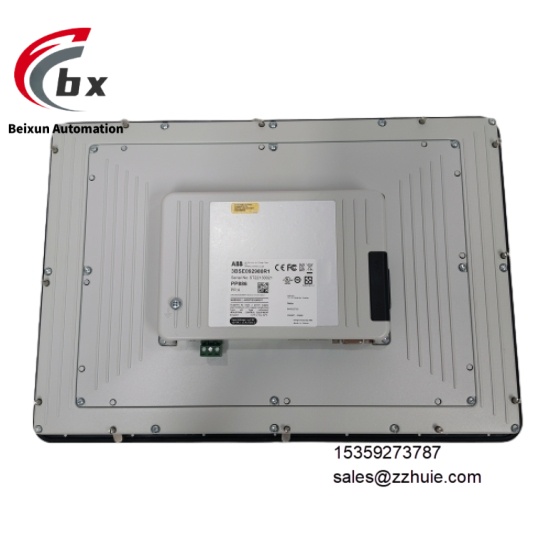

ABB PP886 3BSE092980R1 High performance touch panel

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC (18-32V DC wide-range input)
Processor: ARM9 architecture, 1GHz clock speed
Memory Configuration: 1GB main memory, 2GB solid-state drive (1.5GB available)
Display Parameters:
15.4-inch size, 1280×800 resolution (16:10 aspect ratio)
450cd/m² brightness, resistive touch interaction
Communication Interfaces:
Ethernet: 2×10/100Base-T shielded RJ45 ports
USB: 2×USB 2.0 ports (500mA output)
Serial Ports: 1×RS232, 1×RS422/485, 1×RS485 (when COM2 configured as RS485)
Real-Time Clock: Built-in independent clock module
Power Consumption: Typical 31.2W
Environmental Parameters
Operating Temperature: -10°C to 60°C
Storage Temperature: -20°C to 70°C
Relative Humidity: 5% to 85% (non-condensing, no dew formation)
Vibration Resistance: 1g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 15g acceleration, 11ms duration (compliant with IEC 60068-2-27)
EMC Compliance: EN 61000-6-2 (industrial environment), EN 61000-6-4
Mechanical Parameters
Dimensions: 410mm (W) × 286mm (H) × 61mm (D)
Cutout Dimensions: 394mm (W) × 270mm (H)
Installation Depth: 53mm (basic installation)/153mm (including clearance)
Weight: Approximately 3.85kg
Mounting Method: Panel-mount installation, supports VESA 75×75mm standard bracket
Protection Class: IP65 front, IP20 rear
Housing Material: Die-cast aluminum alloy with white powder coating (UL 94 V-0 flame retardant)

Product Performance

PP886 adopts a 1280×800 high-resolution TFT/LED display with 450cd/m² high brightness output, maintaining clear visibility even in strong light environments. The resistive touch screen supports gloved operation with single-point touch response time ≤200ms. The 1GHz ARM9 processor combined with 1GB memory enables smooth operation of complex graphical interfaces with 画面切换延迟 ≤500ms.

Based on Panel Builder 800 development tool, it supports multi-language configuration (including Chinese) in Microsoft Windows environment, providing rich industry template libraries that improve engineering development efficiency by over 40%. The open architecture is compatible with Profinet, Modbus and other multi-protocol communications, enabling seamless integration with ABB AC800M and third-party PLCs.

IP65 front protection design resists liquid splashing and dust intrusion. The die-cast aluminum housing withstands wide temperature environments from -10°C to 60°C, with mean time between failures (MTBF) ≥50,000 hours. Supports online simulation debugging function to verify application logic before deployment, reducing on-site commissioning time.
