ABB PP877 3BSE069272R2 Human machine interface touch panel

Specific Parameters

Electrical Parameters
Power Supply Voltage: 24V DC, supporting 18-32V DC wide-range input
Power Consumption: 9.6W

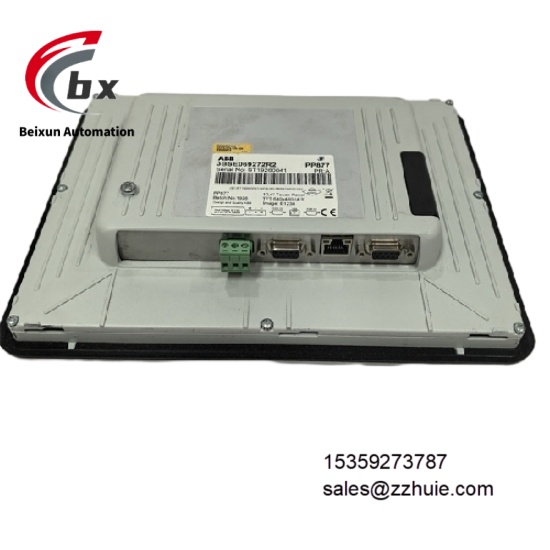

Communication Interfaces: 1×10/100 Base-T Ethernet (shielded RJ45), 2×combined serial ports (RS232, RS422/485), 1×USB 2.0 port (max 200mA)
Storage Configuration: 128MB DDR2 main memory, 80MB application storage, SD card slot (SDHC supported)
Processor: ARM9 architecture, 400MHz clock speed
Display Parameters

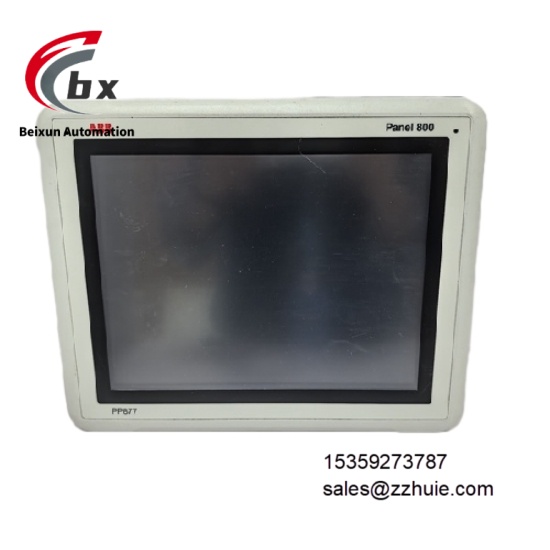

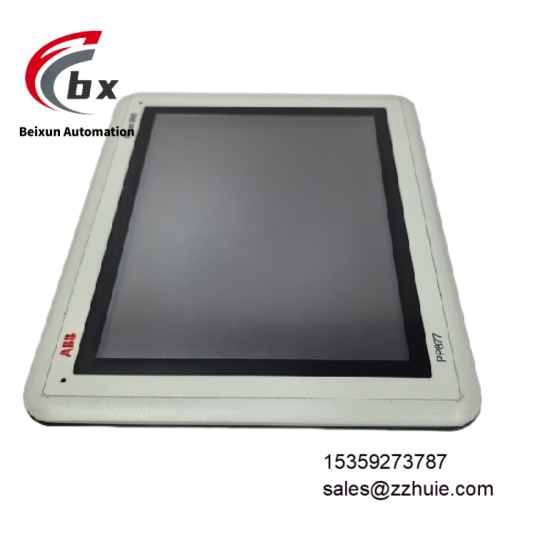

Display Size: 10.4 inches
Display Type: LED-backlit TFT-LCD
Resolution: 640×480 pixels (4:3 aspect ratio)
Brightness: 450 cd/m²
Touch Screen Type: Resistive
Environmental Parameters
Operating Temperature: -10°C to 60°C
Storage Temperature: -20°C to 70°C
Relative Humidity: 5%-85% (non-condensing, no dew formation)
Protection Class: IP66 (front), IP20 (rear)
EMC Immunity: Compliant with industrial-grade EMC standards
Mechanical Parameters
Dimensions (W×H×D): 280mm×228mm×51mm
Cut-out Dimensions (W×H): 262mm×209mm
Weight: Approximately 1.5kg
Mounting Method: Panel-mounted, compatible with VESA 75×75 mounting standard

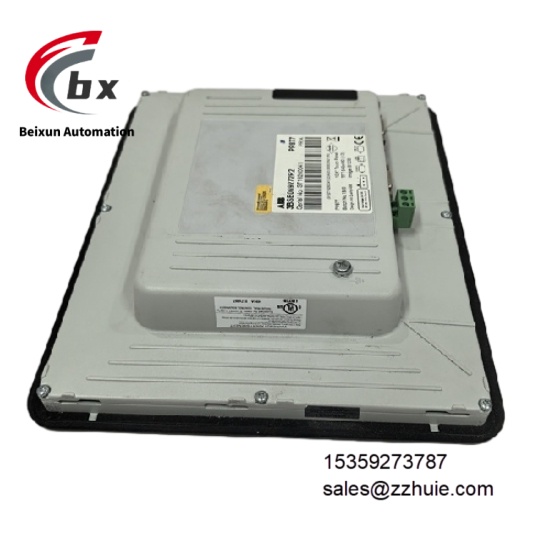

Housing Material: Die-cast powder-coated aluminum alloy

Product Performance

PP877 3BSE069272R2 is equipped with a high-performance ARM9 processor, with interface response time ≤200ms and data refresh rate ≤100ms, capable of displaying more than 1000 real-time data points simultaneously. The LED-backlit display has a brightness of 450 cd/m², maintaining clear visibility even in strong light environments, with a backlight lifespan ≥50,000 hours.

It supports multiple industrial communication protocols such as Modbus and Profinet, with Ethernet data transmission rate up to 100Mbps, enabling real-time data interaction with automation systems. Equipped with comprehensive self-diagnostic functions, it can monitor power status, communication links and storage device faults, with fault information synchronously fed back through interface pop-ups and status indicators.

Adopting a resistive touch screen, it supports single-point precise touch control, with operation response time ≤50ms, and can withstand more than 1 million touch operations. The housing is made of die-cast aluminum alloy, with vibration and shock resistance, adapting to dusty and high-humidity industrial field environments. It supports quick loading of HMI project files via USB or SD card, enabling configuration updates without special tools.
