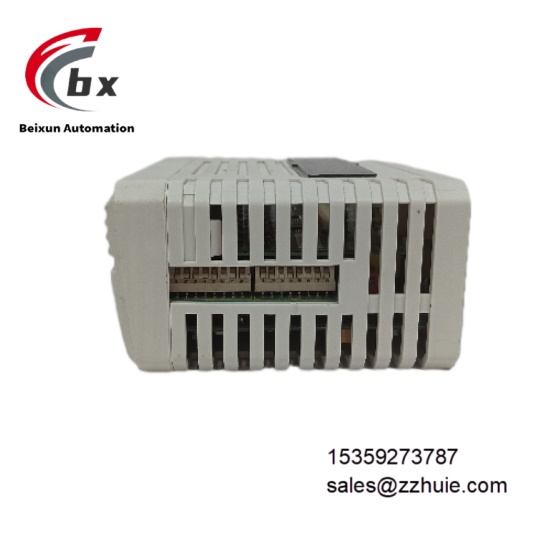

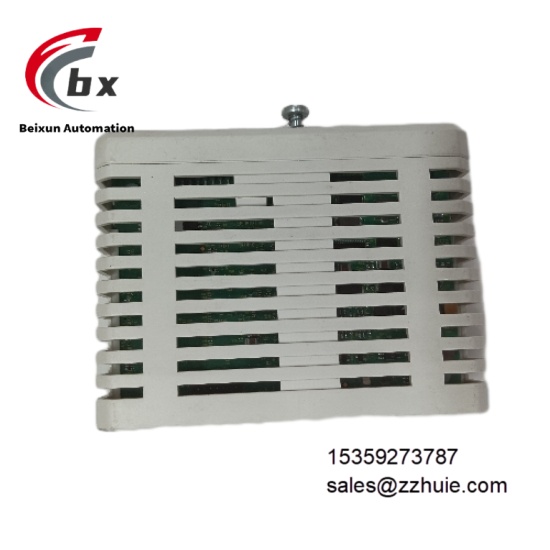

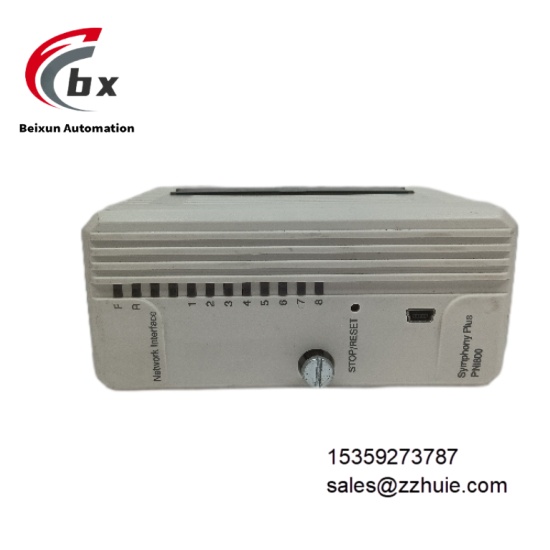

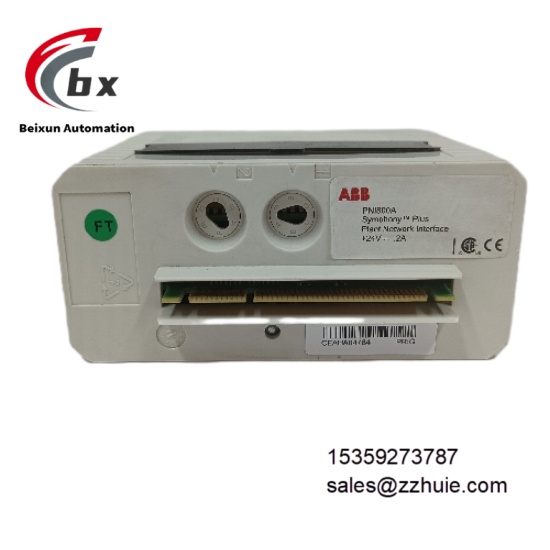

ABB PNI800A Ethernet communication module

Specific Parameters

Electrical Parameters
Communication Interfaces: 2 x 10/100 Mbps auto-negotiation Ethernet ports (RJ45, supporting auto MDI/MDI-X)
Supported Protocols: PROFINET IO Controller, Modbus TCP/IP (Client/Server mode), Ethernet/IP
Network Services: SNMP v1/v2c, DHCP, NTP, HTTP (Web Server), FTP (firmware update)
IP Configuration: Manual static configuration or DHCP auto-acquisition
Power Supply: Powered by AC 800M controller rack backplane bus
Bus Current Consumption: +5V DC bus ≤150mA
Power Dissipation: ≤3W under typical operating conditions
Signal Isolation: Electrical isolation between Ethernet ports and backplane bus, isolation voltage 500V AC (1 minute)
Environmental Parameters
Operating Temperature: -25°C to 70°C (non-condensing, normal startup from -25°C to 0°C)
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, continuous operation at 40°C)
EMC Immunity: Complies with EN 61326-1 industrial standard, common mode rejection ratio ≥120dB
Protection Class: IP20 (module itself, dependent on overall rack protection)
Certification Standards: CE, UL 508, ATEX Zone 2 (requires supporting safety facilities for explosive areas)
Mechanical Parameters
Dimensions: 120mm (H) × 45mm (W) × 115mm (D) (fits AC 800M standard extension rack slots)
Weight: Approximately 0.4kg
Mounting Method: Plug-in installation in AC 800M extension rack, supporting online hot swapping
Housing Material: Flame-retardant reinforced nylon (UL 94 V-0 grade, chemical corrosion resistant)
Indicators: Power Normal (PWR, green), Port Communication (LINK/ACT, independent bi-color LED per port), Fault Alarm (ERR, red)

Product Performance

Dual Ethernet ports support network ring topology construction for communication redundancy. Port data transmission rate auto-adapts to 10/100 Mbps, with throughput up to 200Mbps in full-duplex mode and data transmission delay ≤1ms, meeting real-time control requirements. The multi-protocol compatible design can simultaneously access PROFINET remote I/O, Modbus TCP intelligent instruments and Ethernet/IP devices, enabling seamless cross-brand system integration.

Built-in web server supports direct browser access to the configuration interface, allowing real-time viewing of port status, communication statistics and error logs. SNMP protocol supports access to industrial network management systems, realizing unified monitoring of IT and OT networks. The diagnostic system can real-time monitor port faults, protocol anomalies and bus communication interruptions, with fault information uploaded to the controller within 100ms and diagnostic coverage ≥99%.

Supports NTP time synchronization, with deviation from network clock ≤50ms, ensuring time consistency of cross-device event records. Industrial-grade hardware design can withstand low-temperature startup at -25°C and high-temperature operation at 70°C, with Mean Time Between Failures (MTBF) ≥500,000 hours, adapting to 24/7 continuous production scenarios.
