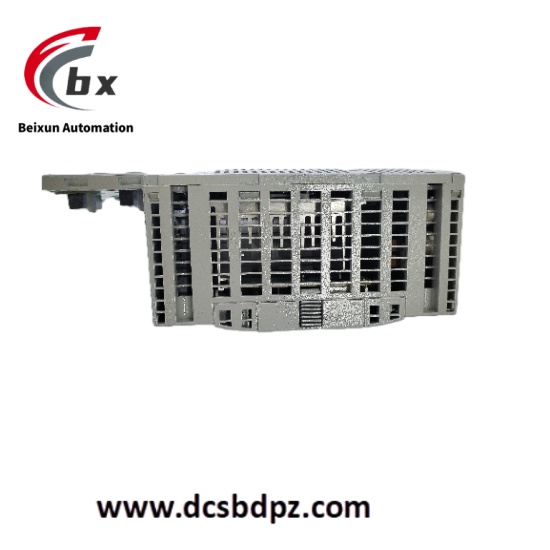

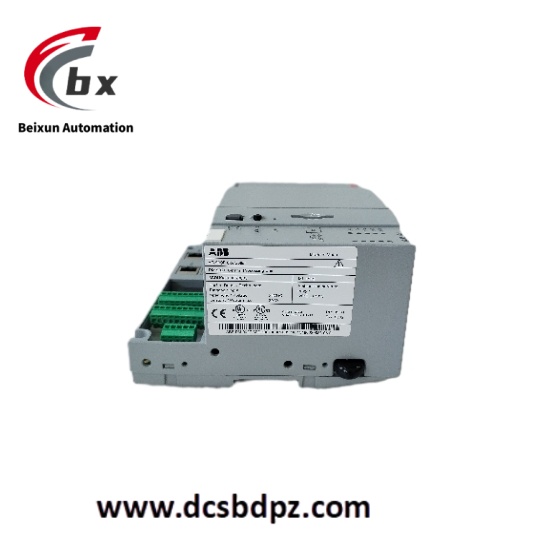

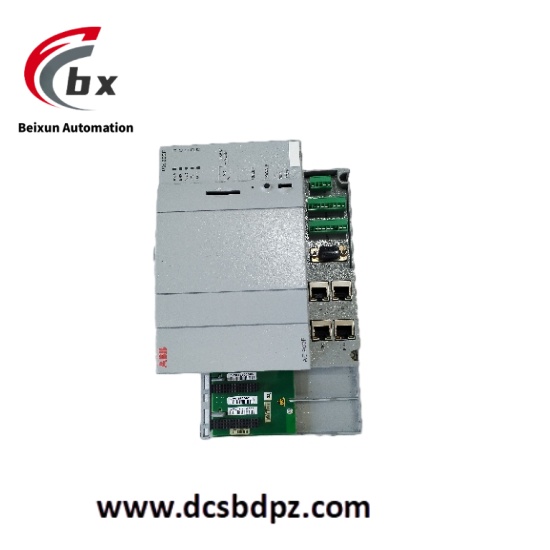

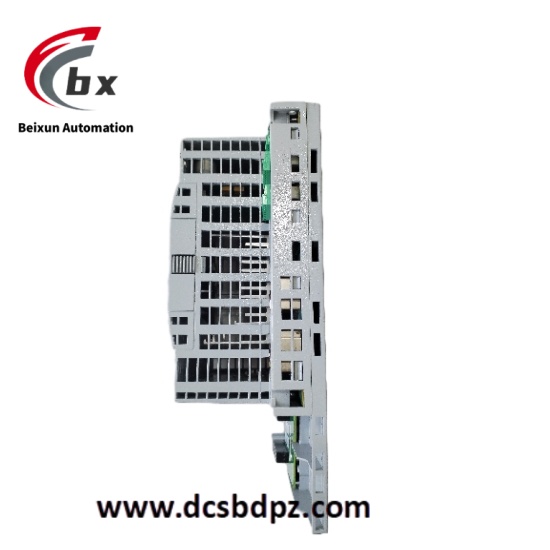

ABB PM902F 3BDH001000R0001 Modular process controller
ABB PM902F 3BDH001000R0001 is a modular process controller belonging to the ABB Symphony Plus series, designed for large-scale industrial process automation systems. The controller integrates data processing, logic control, process regulation and other functions, and can work with I/O modules, communication modules and operation stations in the system to realize precise control and real-time monitoring of complex industrial processes. Its design meets industrial-grade standards, supports redundant configuration, and is suitable for continuous production processes with high reliability requirements.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB PM902F 3BDH001000R0001 Modular process controller
Specific Parameters
- Rated power supply voltage: 24V DC.
- Power supply voltage range: 19.2V DC to 28.8V DC.
- Power consumption: Maximum 45W.
- Operating temperature range: 0°C to 55°C.
- Storage temperature range: -40°C to 70°C.
- Relative humidity: 5%-95% (non-condensing).
- Protection level: IP20.
- Processor: 32-bit dual-core processor with an operating speed of 800 MIPS.
- Program memory capacity: 16MB.
- Data memory capacity: 8MB.
- Communication interfaces: 2 Ethernet interfaces (10/100Mbps), 1 RS485 interface.
- Expansion capability: Supports up to 64 I/O modules.
- Redundancy support: Supports hot-swappable redundancy configuration with switching time ≤10ms.
- Dimensions: 220mm×180mm×100mm (length×width×height).
- Weight: 1.5kg.
Product Performance
- Efficient processing: Dual-core processor has strong computing power, can quickly execute complex control algorithms, meeting the real-time control requirements of large-scale industrial processes.
- Redundant reliability: Supports redundant configuration design, which can seamlessly switch to the standby controller when the main controller fails, ensuring uninterrupted system operation with a mean time between failures (MTBF) of ≥120,000 hours.
- Flexible expansion: Supports expansion of multiple types of I/O modules, which can increase input and output points according to process requirements, adapting to control scenarios of different scales.
- Stable communication: Realizes high-speed data interaction with upper computers and other devices through Ethernet and RS485 interfaces, supporting multiple industrial communication protocols.
- Strong anti-interference: Complies with EN 61000-6-2 industrial anti-electromagnetic interference standards, maintaining stable operation in complex electromagnetic environments.
- Convenient maintenance: Supports online programming and fault diagnosis, can monitor module status in real time and record fault information, simplifying system maintenance processes.
