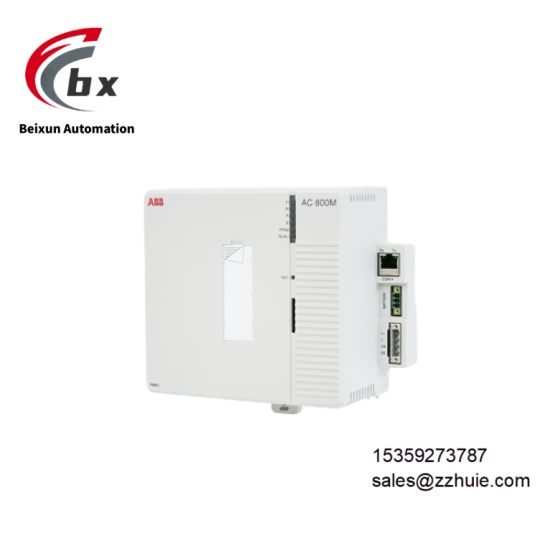

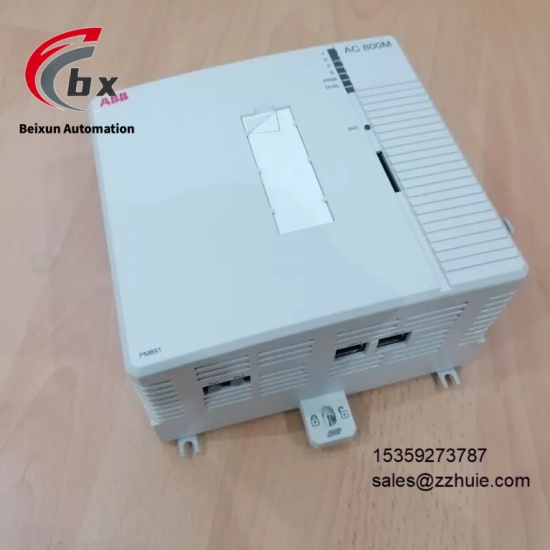

ABB PM891K01 3BSE053241R1 Redundant process main controller

ABB PM891K01 3BSE053241R1 Redundant process main controller

Specific Parameters

Brand ABB (ABB Group, Switzerland)

Product Series ABB AC 800M Series

Product Type Redundant Process Main Controller, DCS Core Computing Unit, Industrial Control Module, Original Spare Part

Model ABB PM891K01 3BSE053241R1

Country of Origin Switzerland (Produced by ABB original factory)

Compatible Devices ABB 800xA Distributed Control System, ABB S800 I/O Units, Various Industrial Automation Control Systems

Processor Industrial-grade MPC8270 Processor, Frequency 450MHz

Memory Configuration 256MB RAM, 16MB Firmware Storage Flash Memory

Control Cycle Minimum 1ms

I/O Expansion Capacity Supports CEX Bus to Connect 7 Groups of S800 I/O Unit Clusters, Up to 12 Units per Group

Communication Interfaces 2 RJ45 Redundant Ethernet Ports, 1 Isolated RJ45 Serial Port (COM4), CEX Communication Expansion Bus

Communication Protocols Modbus, Profibus, TCP/IP, EtherNet/IP, OPC UA

Redundancy Switching Time ≤100ms

Supply Voltage 24VDC, Adaptation Range 19.2-30VDC, Supporting Redundant Power Input

Rated Power Consumption Typical Operating Current 660mA, Maximum 750mA

Operating Temperature Range 0℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Physical Dimensions 280mm×245mm×105mm (Depth × Width × Height)

Physical Weight Approximately 2.1kg

Mounting Method Rack Mounting

Protection Type Anti-Electromagnetic Interference, EMC Certification Protection

Core Functions Process Control, Data Processing, Logic Operation, Dual-Machine Hot Standby Redundancy Switching, Fault Self-Diagnosis, Remote Monitoring

Product Material Industrial-Grade Metal Shell, Flame-Retardant Circuit Board

Customizable No

Certification Standards CE, IEC 61508 SIL 3, EMC Certification

Warranty Period 12 Months

Product Performance

ABB PM891K01 3BSE053241R1 is an original ABB module with strong adaptability. It can be seamlessly integrated into ABB 800xA Distributed Control System, with convenient rack mounting, support for hot swapping, and can stably realize high-precision control and redundancy backup of key industrial processes.

Equipped with a high-performance industrial-grade processor, it has fast operation speed and short control cycle, can quickly process complex control algorithms and large-scale industrial data, and a single module supports multi-task parallel processing, meeting the needs of large-scale program operation and complex control.

Adopting a 1:1 dual-machine hot standby redundancy architecture, the main and standby controllers synchronize data in real time through a dedicated redundant bus, which can switch seamlessly in milliseconds in case of failure, with a switching success rate of 100%, completely avoiding the risk of production suspension caused by single point of failure, and ensuring continuous and uninterrupted operation of the system.

Supports a variety of mainstream industrial communication protocols, can seamlessly integrate third-party equipment, has strong CEX bus expansion capability, can flexibly expand I/O points, adopts industrial-grade packaging design, has excellent anti-electromagnetic interference ability, can operate stably in harsh working conditions such as high temperature, high dust and strong electromagnetic interference for a long time, with built-in fault self-diagnosis function, convenient for operation and maintenance.
