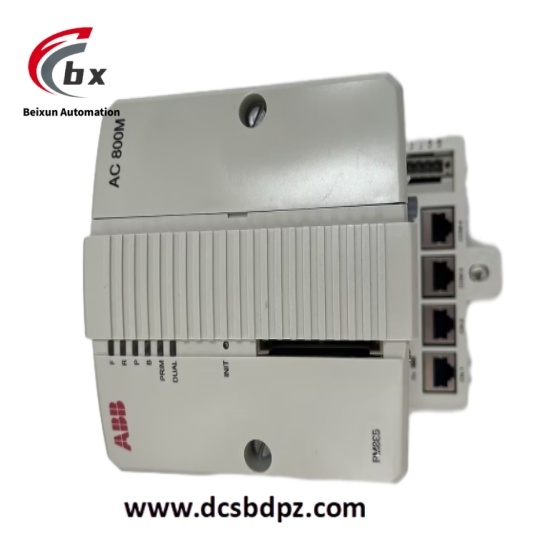

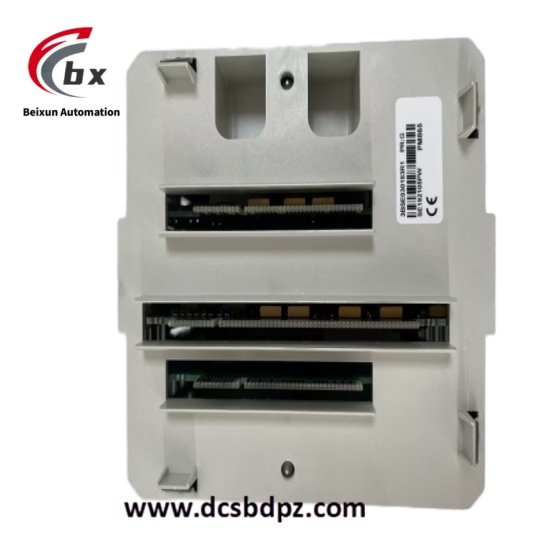

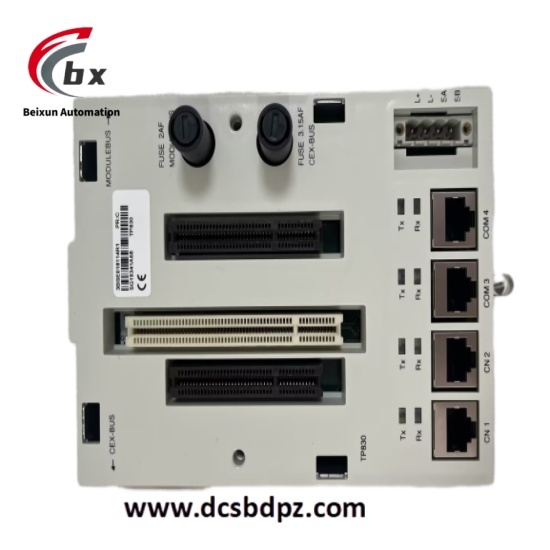

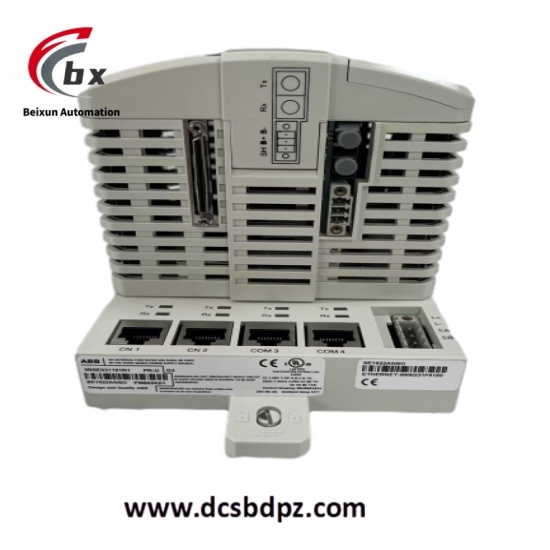

ABB PM865K01 3BSE031151R1 High performance processor unit

Specific parameters
Processor: MPC862P， The clock frequency is 96MHz.
Memory: 32MB.
Power supply: 24V DC (19.2-30V DC).
Communication interface: 2 RJ45 Ethernet ports, 2 RJ45 serial ports.
I/O cluster: There is one electrical and seven optical I/O clusters on the module bus of non redundant CPUs.
Size: 13.5cm × 11.9cm × 18.6cm.
Weight: Approximately 1.2kg.
Clock synchronization: Through the CNCP protocol, the clock synchronization accuracy between AC 800M controllers is 1ms.
Product Performance
Powerful processing capability: The integrated microprocessor and RAM memory enable fast data processing and storage, enabling real-time control of complex industrial processes with 1000 Boolean operations in just 0.17ms.
High safety and reliability: certified by SIL3, suitable for scenarios with extremely high safety requirements. Support CPU redundancy, when the main CPU fails, the backup CPU can immediately take over, ensuring high availability and continuity of the system.
Excellent communication capability: Equipped with redundant Ethernet communication ports and RS-232C communication ports, it can easily connect to local I/O or standard fieldbus, ensuring stability and real-time data transmission.
Flexible and convenient configuration: It has modularity and scalability, can be combined with SM81x modules, and achieves high integrity functions through SIL certification software. It can be flexibly configured and expanded according to specific customer needs.
Easy to maintain: The low-power design does not require an external fan, reducing maintenance workload. The unique sliding and locking mechanism makes the installation and removal of DIN rails simple and fast.
