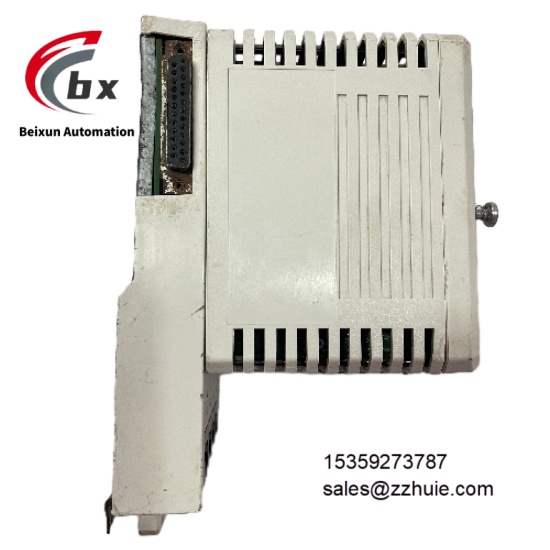

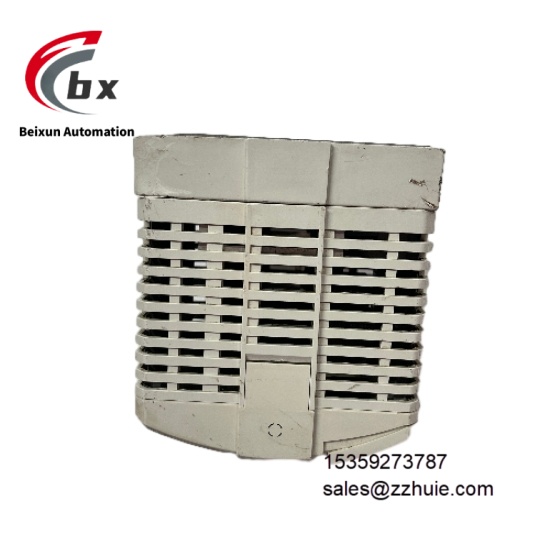

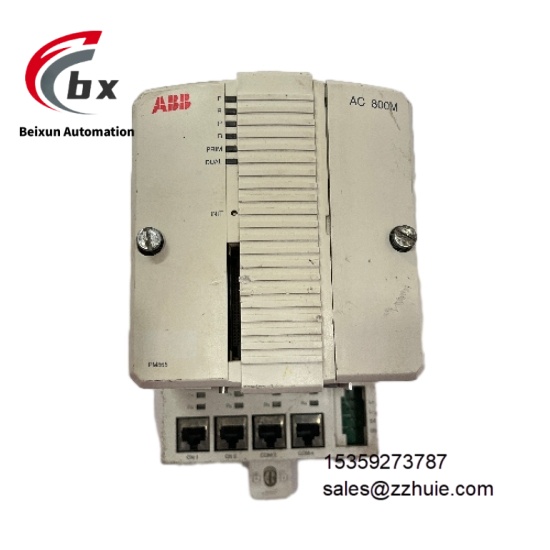

ABB PM865 3BSE030193R1 Residual process controller

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10%, supporting redundant power supply
Processor: PowerPC 750FX, 800MHz clock speed
Memory Configuration: 256MB DDR2 RAM, 512MB Flash (user program/data storage)
Communication Interfaces: 2×10/100/1000 Base-T Ethernet (PROFINET, EtherNet/IP supported), 1×RS485 (Modbus RTU), 1×USB 2.0 (maintenance port)
Redundancy Function: Controller redundancy, power redundancy, communication redundancy supported, switching time ≤1ms
Isolation Level: 2.5kV AC between power and signal (1 minute), 2kV AC between communication port and system (1 minute)
Protection Functions: Overvoltage protection, short circuit protection, reverse polarity protection, overheating protection
Power Consumption: ≤25W under normal operation, ≤45W in redundant mode
Environmental Parameters
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 (industrial grade), IEC 61000-4-2/4/6
Vibration Resistance: 10-500Hz, 1g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 15g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 40mm (W) × 175mm (H) × 280mm (D)
Weight: Approximately 1.8kg
Mounting Method: AC 800M standard rack mounting (compatible with UR21, UR22 racks)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant aluminum alloy (UL 94 V-0 grade)
Terminal Type: Backplane bus connection, front Phoenix terminals (power/communication)

Product Performance

PM865 3BSE030193R1 is equipped with an 800MHz high-performance processor, supporting more than 1000 control loops to run simultaneously, with logic operation cycle ≤1ms and PID control accuracy ±0.1%, which can quickly respond to dynamic changes in industrial processes. The redundant architecture adopts “hot standby” mode, with data synchronization delay between active and standby controllers ≤50μs, and non-disturbance switching in case of failure, ensuring continuous and uninterrupted control process.

Integrated with multi-protocol communication engine, the Ethernet transmission rate reaches 1Gbps, supporting PROFINET IRT real-time communication, with data interaction delay with I/O modules ≤100μs. It supports 5 programming languages (LD, FBD, SFC, etc.) of IEC 61131-3 standard, with maximum program capacity of 2MB, enabling complex sequence control and process regulation logic.

Built-in comprehensive self-diagnostic system, it can real-time monitor processor, memory, communication link and power status, with fault diagnosis coverage ≥99.9%, and fault information is uploaded to the monitoring system in real time via bus. Fully compatible with AC 800M series I/O modules such as AI810 and AO810, supporting online configuration download and firmware upgrade, enabling system maintenance without shutdown. The mean time between failures (MTBF) is ≥500,000 hours, meeting high-reliability industrial control requirements.
