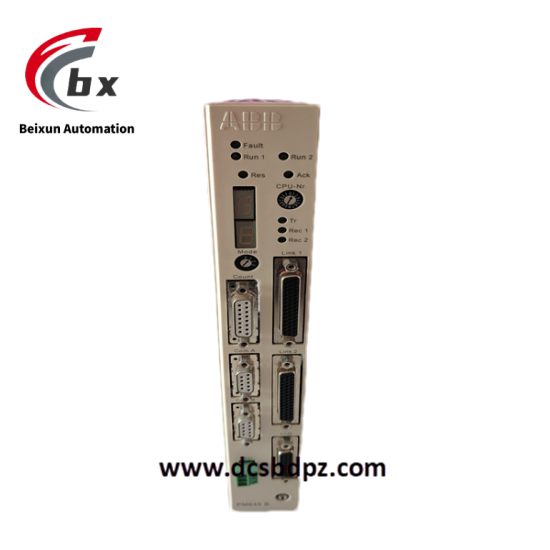

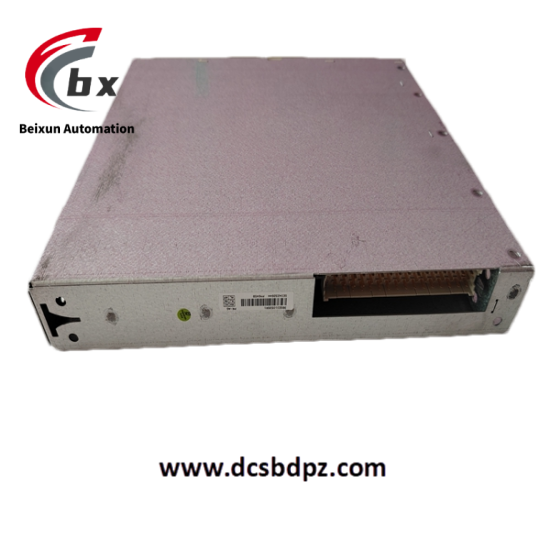

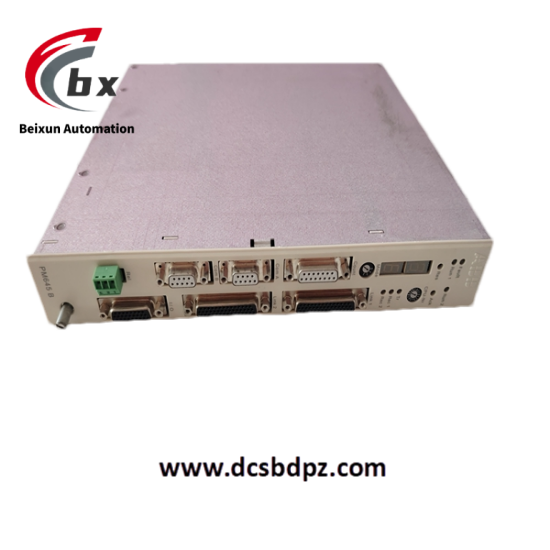

ABB PM645B 3BSE010535R1 processor module
ABB PM645B 3BSE010535R1 is a high-performance processor module of the AC 800M series, providing core computing and control functions for industrial automation control systems. This module can centrally manage I/O modules, execute logical control, process data, and coordinate communication. It supports multi-protocol data interaction and can seamlessly connect with field devices and upper-level monitoring systems. It is a core component of large-scale distributed control systems, widely adapting to automation needs in complex industrial scenarios.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB PM645B 3BSE010535R1 processor module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC (±10%)
- Power Consumption: Typical 15W, Maximum 20W
- Processor and Memory
- CPU: 32-bit RISC processor, 800MHz clock speed
- Program Memory: 128MB Flash
- Data Memory: 128MB RAM
- Communication Interfaces
- Integrated Interfaces: 2 Ethernet interfaces (10/100Mbps, supporting PROFINET, Modbus TCP/IP)
- Expansion Interfaces: Supports expanding FF H1, PROFIBUS DP and other buses via communication modules
- Operating Environment Parameters
- Operating Temperature Range: -25°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
- Physical Parameters
- Dimensions: 100mm×160mm×40mm
- Mounting Type: DIN rail mounting (35mm)
Product Performance
- High-Speed Computing Capacity: Equipped with an 800MHz clock speed processor and large-capacity memory, it supports real-time operation of complex control algorithms. A single module can process data from over 1000 I/O points, with a minimum control cycle of 1ms.
- Multi-Protocol Compatibility: Natively supports Ethernet-based protocols and is compatible with mainstream industrial buses via expansion modules, enabling integration of heterogeneous systems with devices from different brands without additional gateways.
- Redundancy Design Support: Supports redundant configuration of processors, power supplies, and communication links. It automatically switches in case of a single point failure, with a switching time ≤10ms, ensuring uninterrupted system operation.
- Strong Anti-Interference Ability: Certified for EMC (compliant with EN 61000-6-2/6-4), it can stably transmit data in industrial strong electromagnetic environments without signal loss or calculation deviation.
- Online Maintenance Function: Supports online program download and module hot-swap, allowing maintenance without interrupting system operation, reducing production downtime.
