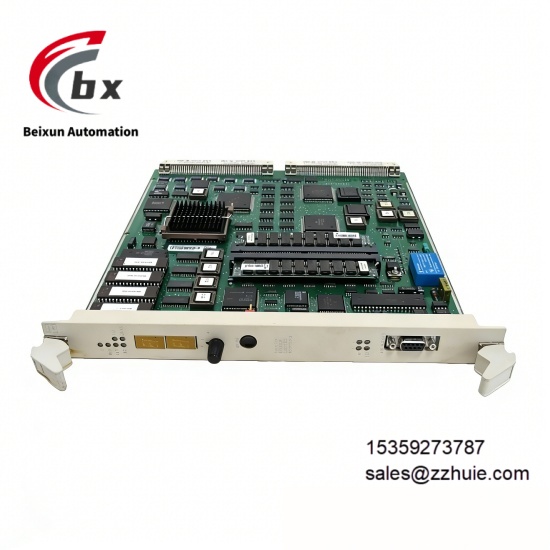

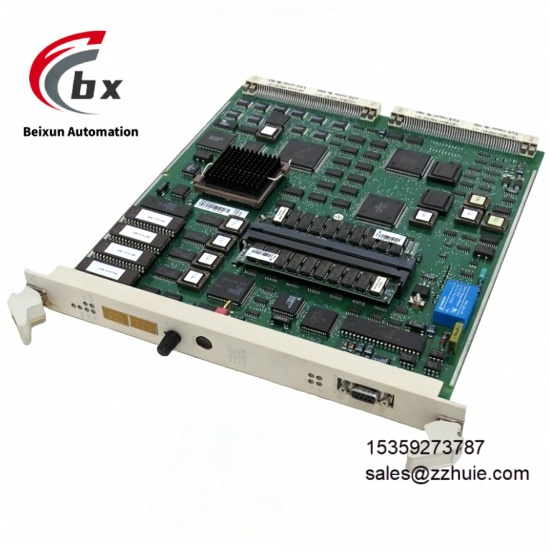

ABB PM510V08 3BSE008373R1 Programmable Logic Controller

ABB PM510V08 3BSE008373R1 Programmable Logic Controller

Specific Parameters

Operating Voltage 24VDC (18VDC-30VDC wide range adaptation)

Net Weight 0.53kg

Dimensions 120mm×100mm×75mm

Operating Temperature Range 0℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Processor 32-bit ARM Cortex-A9 Processor, 800MHz主频

Program Memory 16MB Flash

Data Memory 8MB RAM, supporting up to 32GB Micro SD card expansion

Digital Input 16 channels, adapted to 24VDC wet contacts, input current 4mA@24VDC

Digital Output 8 channels, relay output, output capacity AC 250V/2A, DC 24V/5A

Analog Input 4 channels, supporting 4-20mA current signal, 0-10V voltage signal, accuracy ±0.1% FS

Analog Output 2 channels, supporting 4-20mA current signal, 0-10V voltage signal, accuracy ±0.1% FS

Communication Interfaces 2 RS485 interfaces, 1 Ethernet interface, supporting Modbus RTU, Modbus TCP protocols

Power Consumption ≤15W

HS Code 8537101190

Product Performance

Computing Performance: Equipped with a 32-bit ARM Cortex-A9 processor with a main frequency of 800MHz, the Boolean operation speed is 0.01μs/instruction, and the floating-point operation speed is 0.1μs/instruction. It can quickly process complex logic control and process adjustment tasks, support real-time control of 1000 I/O points, and meet the multi-equipment collaborative control needs of small and medium-sized production lines.

Adaptability Performance: Equipped with 1 AC500 series standard expansion interface, it can seamlessly expand digital, analog I/O modules and special function modules, and can adapt to the needs of expanded production scale without replacing the main controller; it is compatible with IEC 61131-3 standard, supports five programming languages, and adapts to different programming habits and project needs.

Safety Performance: It has triple protection functions of overvoltage, overcurrent and short circuit, anti-interference performance complies with IEC 61000-4 standard, digital and analog I/O have high-level isolation from the system, and supports program password protection to prevent unauthorized modification and ensure safe operation of the system and associated equipment.

Stability Performance: Adopting industrial-grade high-quality electronic components, it has strong adaptability to wide temperature environments, can operate stably for a long time in the range of 0℃ to 60℃, non-volatile flash memory can ensure data is not lost after power failure, no frequent faults, high reliability, and meets the long-term stable operation needs of industrial scenarios.

Operation and Maintenance Performance: 35mm DIN rail clip-on installation, with pluggable terminals at the front, convenient for installation and disassembly; equipped with complete fault diagnosis function, intuitively displays fault types through LED indicators, matched with special programming software, simple debugging operation, and can realize remote diagnosis and maintenance, reducing operation and maintenance costs.
