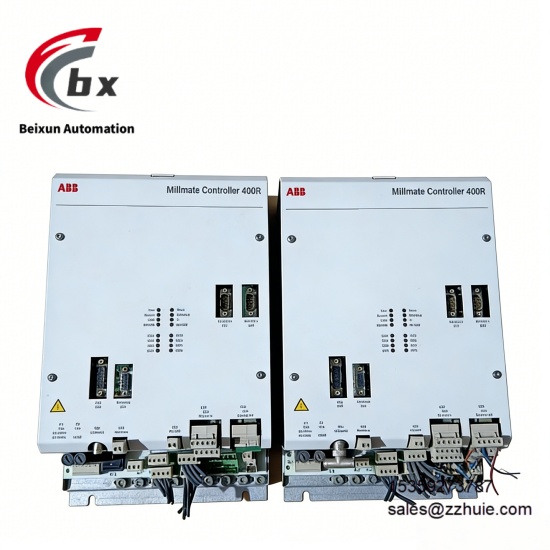

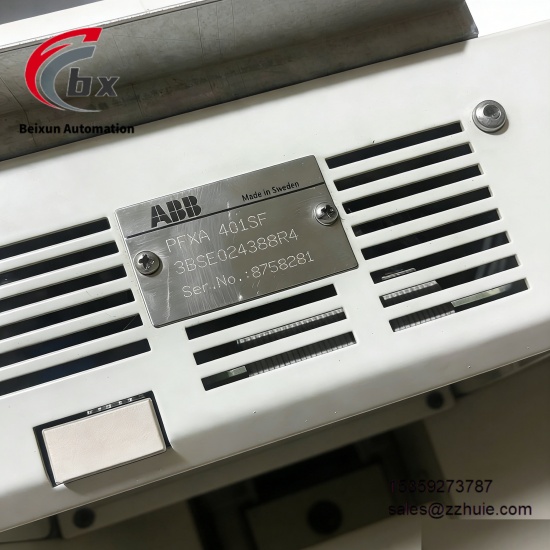

ABB PFXA401SF 3BSE024388R4 controller module
Specific Parameters
Dimensions 380mm×235mm×90mm
Weight 5kg
Operating Temperature Range 0℃ to +70℃
Storage Temperature Range -40℃ to +70℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20
Mounting Method DIN rail or wall-mounted installation, terminal wiring, supporting online maintenance
Power Supply Voltage 85-264V AC, supporting 9-36V DC redundant input
Power Consumption 140VA
Communication Interface 5 Ethernet ports, 2 RS-232 serial ports, supporting Modbus TCP and OPC UA protocols
Analog Input 2 channels, 0-10V differential input
Analog Output 4 channels, 0-10V voltage output or 0-20mA, 4-20mA current output
Digital Input 8 channels, 0/+24V, insulation 4+4
Digital Output 8 channels, 0/+24V, insulation 4+4
Speed Control Range 1:3000
Speed Response 100Hz
Control Precision 0.01%
Current Response 500Hz
Product Performance
Adaptability Performance: Seamlessly compatible with ABB MC 400 series systems, can work with Woodward easYgen-3400XT/3500XT controllers, compatible with ToolboxST PC, HMI and other equipment, with high integration efficiency.
Control Performance: Supports seamless switching between position, speed and torque modes, step response time 20ms, can achieve 150% high starting torque at low speed 0Hz, and has high-precision positioning control capability.
Communication Performance: Equipped with multiple Ethernet and serial ports, supports UDH network communication and Predix cloud connection, can realize efficient cross-system data interaction, and supports USB configuration recovery.
Safety Performance: Has overvoltage, undervoltage, overcurrent and short-circuit protection functions, complies with RoHS environmental protection directives, can operate stably for a long time in harsh industrial environments, and has a long trouble-free operation cycle.
Operation and Maintenance Performance: Modular design, clear terminal identification, convenient installation and maintenance, supports redundant communication design, can ensure continuous system operation under single-point failure, and is easy for spare part replacement.
