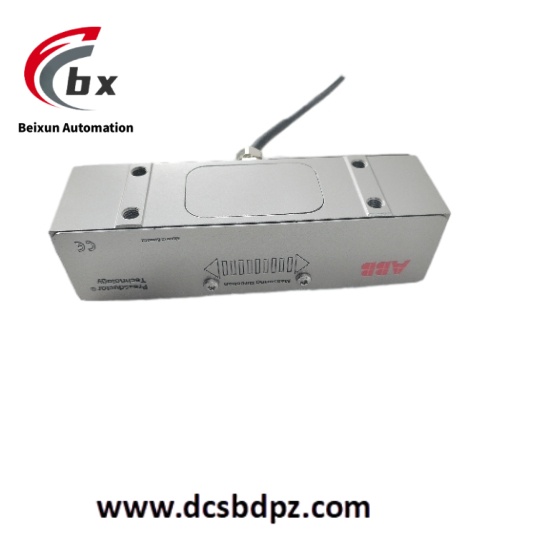

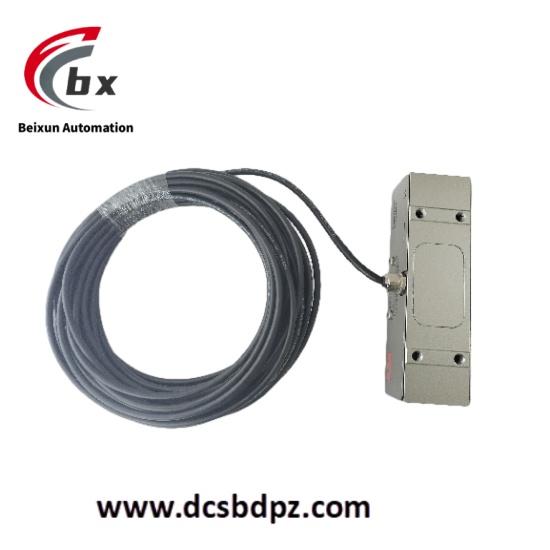

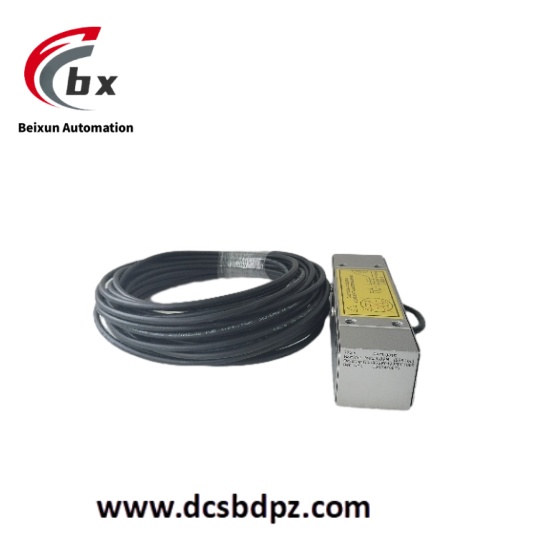

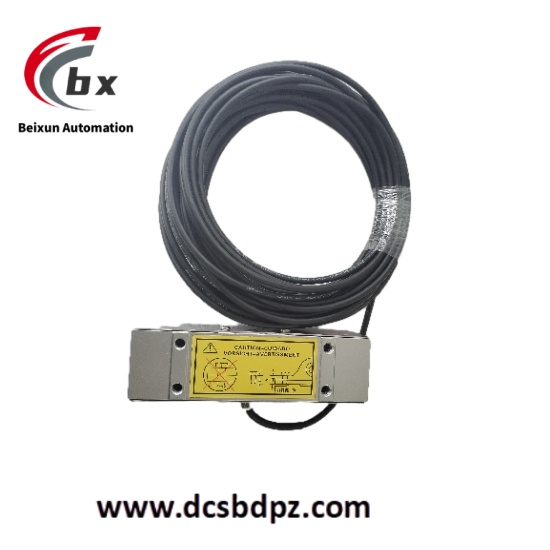

ABB PFTL301E 1.0KN 3BSE019050R1000 High performance tension sensor
ABB PFTL301E 1.0KN 3BSE019050R1000 is a high-performance tension sensor belonging to ABB industrial automation detection equipment series. The sensor detects object tension through built-in high-precision strain sensing elements, converts mechanical signals into standard electrical signals for output, and is suitable for automatic control in medium and low tension scenarios, providing accurate tension data support for winding equipment, film production lines, etc. Its structural design is adapted to the tension detection path of industrial production lines and can be directly installed on components such as guide rollers and tension frames.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB PFTL301E 1.0KN 3BSE019050R1000 High performance tension sensor
Specific Parameters
- Measurement range: 0-1.0kN.
- Output signal: 4-20mA DC.
- Supply voltage: 10-30V DC.
- Accuracy class: ±0.15%FS (full scale).
- Nonlinear error: ≤±0.08%FS.
- Repeatability error: ≤±0.04%FS.
- Response time: ≤1.5ms.
- Operating temperature range: -30°C to +80°C.
- Protection level: IP67.
- Material: Stainless steel (304).
- Connection method: M12 circular connector (with shielding).
- Dimensions: 45mm in width, 35mm in height, 110mm in length.
- Weight: 420g.
Product Performance
- High-precision tension detection: Optimized strain gauge layout and signal conditioning technology ensure the accuracy and stability of tension measurement, meeting the low tension control requirements of precision film and thin strip production.
- Fast dynamic response: 1.5ms response time can capture small tension fluctuations in real time, adapting to dynamic tension adjustment of high-speed production lines.
- Stable operation in wide temperature range: After temperature compensation in wide temperature range, it maintains measurement accuracy within -30°C to +80°C, adapting to extreme industrial environments.
- Strong environmental tolerance: Stainless steel material and IP67 protection level can resist dust, water immersion and general chemical corrosion, extending equipment service life.
- Convenient system integration: Standard output signal and shielded connector design can be directly connected to PLC, tension controller and other equipment, reducing system interference.
