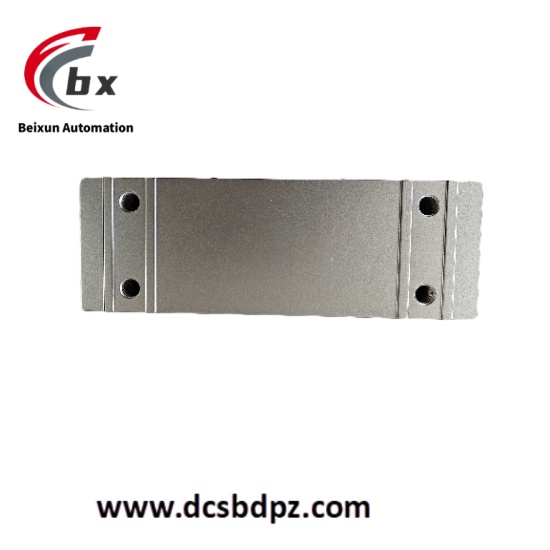

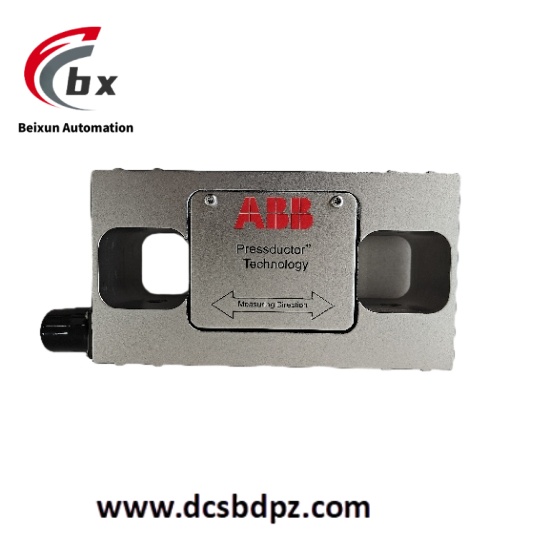

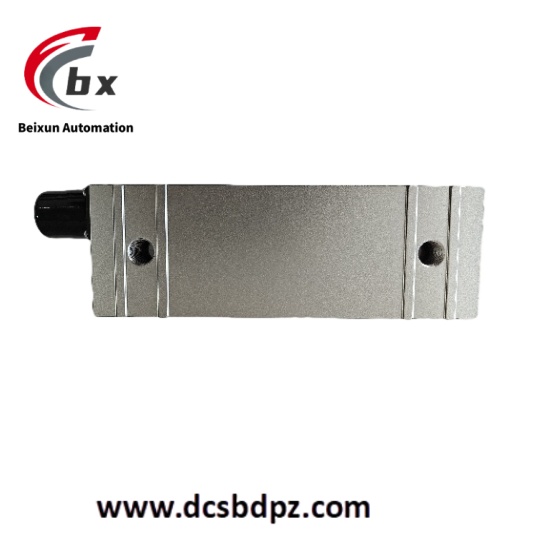

ABB PFTL101A 2.0KN 3BSE004172R1 Tension Sensor
ABB PFTL101A 2.0KN 3BSE004172R1 is a tension sensor belonging to ABB industrial automation detection equipment series. The sensor detects the tension value of objects through built-in strain sensing elements, converts the tension signal into standard electrical signals for output, and provides accurate data support for tension control in scenarios such as winding equipment and wire processing. Its structural design is adapted to the tension detection path of industrial production lines and can be directly installed on components such as guide rollers and tension arms.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB PFTL101A 2.0KN 3BSE004172R1 Tension Sensor
Specific Parameters
- Measurement range: 0-2.0kN.
- Output signal: 4-20mA DC.
- Supply voltage: 12-30V DC.
- Accuracy class: ±0.2%FS (full scale).
- Nonlinear error: ≤±0.1%FS.
- Repeatability error: ≤±0.05%FS.
- Response time: ≤2ms.
- Operating temperature range: -30°C to +85°C.
- Protection level: IP65.
- Material: Alloy steel (chrome-plated surface).
- Connection method: M12 square connector.
- Dimensions: 50mm in width, 40mm in height, 120mm in length.
- Weight: 500g.
Product Performance
- Accurate tension detection: High-precision strain gauges and signal processing circuits ensure the accuracy and stability of tension measurement, meeting the tension control needs of scenarios such as coil production and wire traction.
- Fast dynamic response: Millisecond-level response time can capture tension fluctuations in real time, adapting to dynamic tension adjustment of high-speed production lines.
- Strong environmental tolerance: Alloy steel material and IP65 protection level can resist dust, oil stains and slight water splashes in industrial environments, extending service life.
- Long-term stability: After temperature compensation, it maintains measurement accuracy in a wide temperature range, with annual drift ≤0.05%FS.
- Easy integration: Standard output signals and connector design can be directly connected to tension controllers, PLC and other equipment, simplifying system installation and commissioning.
