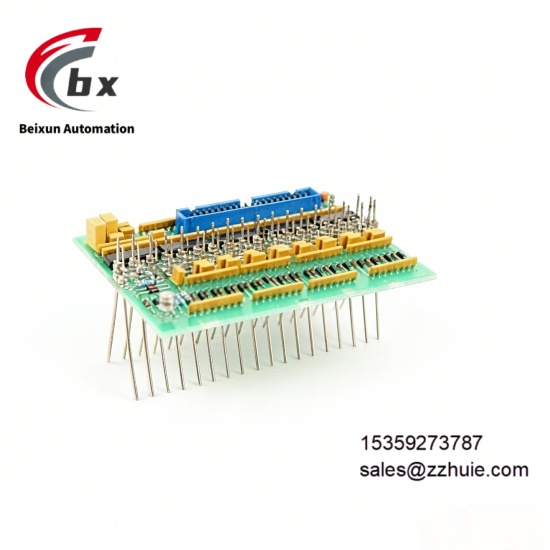

ABB PFSK113 7625013-S Security logic operation module
Specific Parameters
Rated Operating Voltage 24VDC
Digital Input Channels 16 Channels
Digital Output Channels 8 Channels
Safety Level SIL 3
Power Consumption 4W
Operating Temperature Range -40℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Dielectric Withstand Voltage 1500VAC
Mounting Type Standard DIN Rail Mounting, Cabinet Panel Fixed Mounting
Outline Dimension 225×100×40mm
Weight Approx.0.5kg
Protection Class IP20
Product Performance
Safety Logic Operation Performance: Equipped with special safety-level processing chip, supports all types of safety logic operations such as AND, OR, NOT, XOR, with accurate and error-free operation, can quickly execute complex safety interlock logic, fast response speed, can trigger safety protection action at the first time, adapting to the extreme safety control needs in high-risk working conditions.
Safety Protection Performance: Reaches SIL 3 international safety level standard, built-in multiple safety verification mechanisms and redundant design, eliminates operation errors and command mis-output, ensures safety control reliability from the hardware level, completely avoids equipment safety accidents caused by module faults, meets the compliance requirements of safety control in industrial high-risk scenarios.
Fault Diagnosis Performance: Integrates comprehensive self-diagnosis and online diagnosis functions, can monitor module operation status, channel status and circuit faults in real time, accurately locate fault points, quickly trigger safe shutdown and fault alarm under abnormal working conditions, facilitating operation and maintenance personnel to quickly troubleshoot and repair, minimizing the disposal time of potential safety hazards.
Signal Transmission Performance: 16 digital input and 8 digital output channels operate independently, no delay, no distortion and no conflict in signal acquisition and output, isolated from each other without interference, can stably connect various safety sensors, actuators and interlock equipment, ensuring stable and smooth transmission of safety signals throughout the whole process.
Anti-interference Stability Performance: Adopts industrial-grade strong anti-interference design, built-in multi-stage filtering, surge suppression and electromagnetic shielding circuits, can effectively resist various interferences such as power grid harmonics, high-voltage equipment start-stop impact and space electromagnetic radiation in industrial sites, no crash, maloperation and signal disorder during long-term operation, with full operation stability.
Environmental Adaptability Performance: Has ultra-wide temperature range operation adaptability, operating temperature covers -40℃ to +70℃, can work continuously and stably in extreme industrial environments such as extreme cold and high temperature, dust, vibration and moisture resistant, adapting to non-constant temperature control scenarios such as high-risk production workshops, outdoor industrial control cabinets and harsh working condition sites, trouble-free operation all-weather.
System Compatibility Performance: Perfectly adapts to ABB 800xA distributed control system and all PF series industrial control modules of the same series, supports seamless docking and networking with various safety control units and safety I/O modules, modular architecture can be flexibly integrated into existing safety control systems, complete system integration without additional debugging, compatible with mainstream safety control programming specifications.
Installation and Maintenance Performance: Supports standard DIN rail quick installation and cabinet panel fixed installation, standardized interface layout and clear identification, simple and efficient wiring and debugging process; the module is solid-state electronic design with no vulnerable mechanical parts inside, maintenance-free daily, module replacement without interrupting the overall safety system operation.
