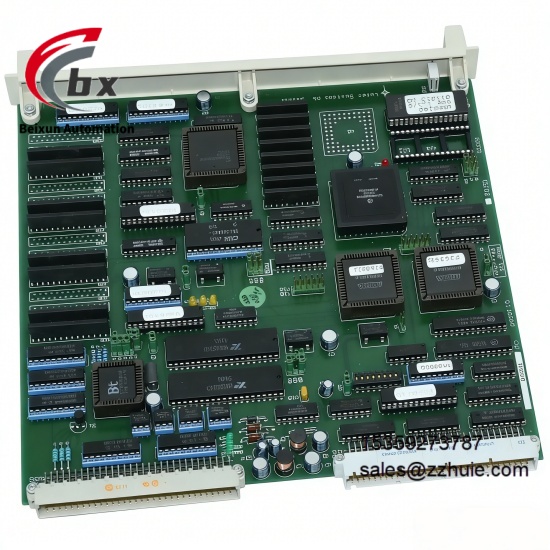

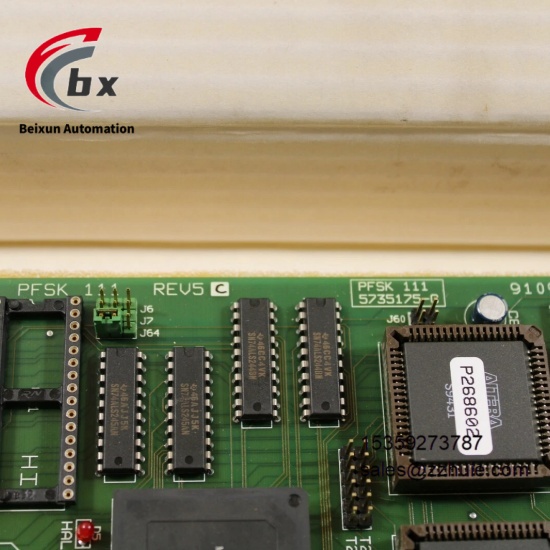

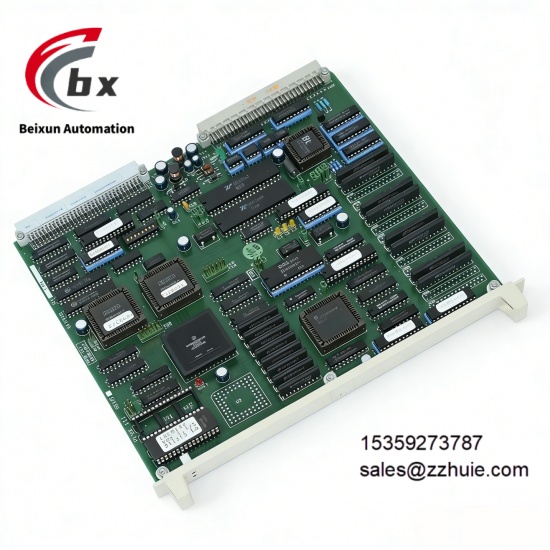

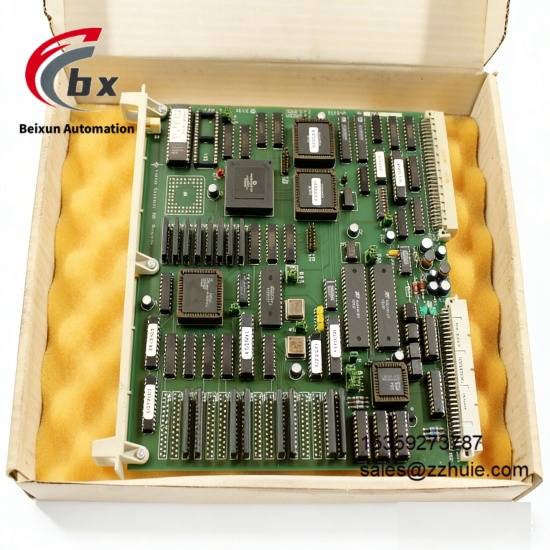

ABB PFSK111 5735175-C controller module
Specific Parameters
Rated Operating Voltage 24VDC±20%
Processor Main Frequency 200MHz
Operating Temperature Range -20℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Dielectric Withstand Voltage 1500VAC
Protection Class IP20
Mounting Type Standard DIN Rail Mounting, Cabinet Panel Fixed Mounting
Power Consumption ＜10W
Weight Approx.0.35kg
Product Performance
Control Operation Performance: Equipped with 32-bit high-performance ARM processor and built-in floating-point operation unit, with fast logic operation and data processing speed, can efficiently execute complex control algorithms and closed-loop regulation logic, no delay in control response, accurate command output, meeting the needs of high-precision process control and multi-equipment linkage control.
Signal Processing Performance: Supports synchronous acquisition and output of multiple types of digital and analog signals, with high signal acquisition accuracy, no drift and distortion, stable and smooth output signal, can adapt to various industrial sensors and actuators, perfectly matching the full-scenario signal interaction needs of industrial control systems.
Communication Compatibility Performance: Equipped with multiple standard industrial communication interfaces such as Ethernet, RS485 and CAN bus, supports mainstream industrial control communication protocols such as Modbus and CANopen, can realize stable data interaction with upper computer SCADA system, field I/O modules and other industrial control equipment, no packet loss and no delay in transmission.
Anti-interference Stability Performance: Adopts industrial-grade anti-electromagnetic interference design, internally integrated with multi-stage filtering and surge suppression circuits, can effectively resist various interferences such as power grid harmonics, equipment start-stop impact and space electromagnetic radiation in industrial sites, no crash, maloperation and signal disorder during long-term operation, with full operation stability.
Environmental Adaptability Performance: Extremely strong wide-temperature operation adaptability, can work continuously and stably in extreme industrial environments from -20℃ to +70℃, dust, vibration and moisture resistant, adapting to harsh working conditions without constant temperature control such as production workshops, industrial control cabinets and outdoor control cabinets, trouble-free operation all-weather.
System Compatibility Performance: Perfectly adapts to all series of mainstream industrial control platforms such as ABB 800xA, Lutec and P series, supports seamless docking and networking with the same series of PF modules, modular architecture can flexibly expand system functions, complete system integration without additional debugging, compatible with IEC 61131-3 standard programming logic.
Installation and Maintenance Performance: Supports DIN rail quick installation and panel fixed installation, standardized interface layout and clear identification, simple and efficient wiring and debugging process; the module is solid-state electronic design with no vulnerable mechanical parts inside, maintenance-free daily, convenient fault troubleshooting and module replacement, without interrupting the overall system operation during replacement.
Safety Protection Performance: Complete electrical isolation between control circuit and power supply circuit, built-in multiple protection mechanisms of overvoltage, overcurrent, short circuit and overheating, can quickly cut off fault circuit under abnormal working conditions, protect the module itself and back-end control equipment from damage, in line with international industrial safety certification standards.
