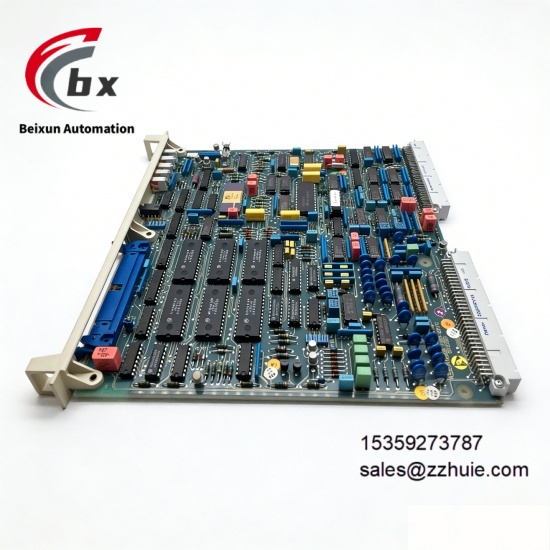

ABB PFSK106 YM322001-EC Channel control and signal transmission module
Specific Parameters
Rated Operating Voltage 24VDC
Number of Channels Multi-channel Independent Signal Channels
Signal Transmission Standard Compatible with Standard Industrial Analog and Digital Signals
Operating Temperature Range -20℃ to +60℃
Relative Humidity 5% to 95%, Non-Condensing
Dielectric Withstand Voltage 1500VAC
Mounting Type Standard DIN Rail Mounting, Cabinet Panel Fixed Mounting
Protection Class IP20
Weight Approx.0.7kg
Product Performance
Channel Management Performance: Equipped with a special industrial-grade channel control chip, realizing synchronous and precise management of multiple independent signal channels, fast channel switching response, no conflict and no delay in signal distribution, orderly coordinating multi-channel signal transmission and scheduling, meeting the collaborative signal interaction needs of multiple equipment and nodes.
Signal Transmission Performance: Supports compatible transmission of multi-channel standard industrial analog and digital signals, no packet loss, no distortion and no delay in the whole data transmission process, stable signal link transmission, can efficiently carry large-volume control data and monitoring data interaction, ensuring smooth signal transmission of the system.
Anti-interference Stability Performance: Built-in multi-stage signal filtering, electromagnetic interference suppression and surge protection circuits, can effectively resist various interferences such as power grid harmonics, equipment start-stop impact and space electromagnetic radiation in industrial sites, completely eliminating signal interruption, channel disorder and data distortion problems, and operating stably all-weather.
System Compatibility Performance: Perfectly adapts to ABB 800xA distributed control system, P series PLC and all PF series industrial control modules of the same series, supports seamless docking with various ABB control units, I/O modules and communication modules, completes system signal channel network construction without additional debugging, and is compatible with mainstream industrial control signal transmission standards.
Channel Monitoring Performance: Built-in real-time channel status monitoring unit, which can monitor the operation status, transmission rate and fault points of each signal channel throughout the whole process, quickly lock the fault channel and trigger status prompt under abnormal working conditions, facilitating operation and maintenance personnel to quickly troubleshoot faults and ensure the continuous operation of the channel system.
Environmental Adaptability Performance: Has excellent wide-temperature environmental adaptability, can operate continuously and stably for a long time in industrial site environments from -20℃ to +60℃, dust, vibration and moisture resistant, adapting to harsh working conditions without constant temperature control such as production workshops, industrial control cabinets and outdoor control cabinets, no signal transmission or channel management faults.
Installation and Maintenance Performance: Supports two mounting methods: standard DIN rail quick mounting and cabinet panel fixed mounting, with clear signal channel interface identification, standardized wiring, simple wiring and debugging process; the module is solid-state electronic design with no vulnerable mechanical parts inside, maintenance-free daily, and module replacement without interrupting the overall system operation.
Safety Protection Performance: Complete electrical isolation between signal channel circuit and power supply circuit, meeting power frequency withstand voltage safety standards, effectively blocking high and low voltage signal crosstalk and circuit breakdown risks, built-in multiple protection circuits of overvoltage, overcurrent and short circuit, protecting the module itself and back-end signal equipment from damage, improving the safety level of the overall signal management and control system.
