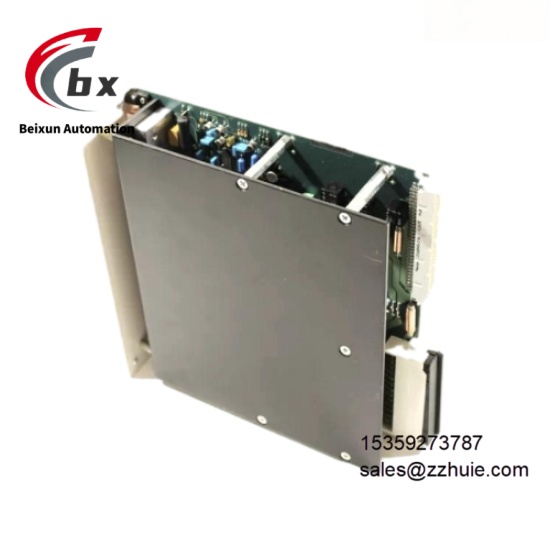

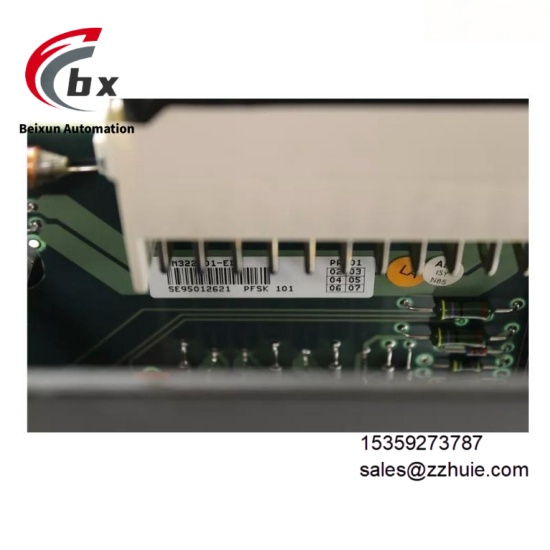

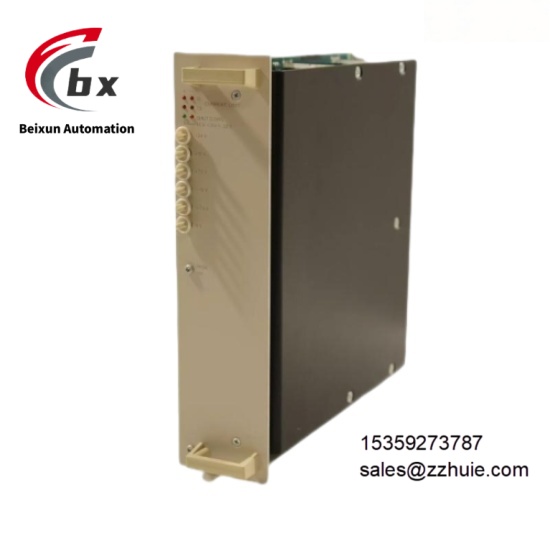

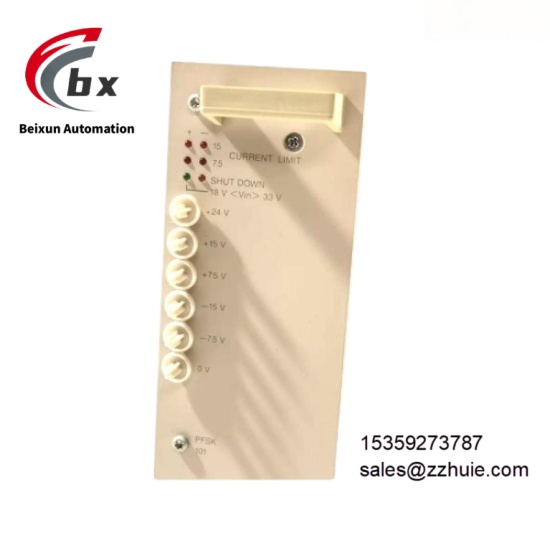

ABB PFSK101 YM322001-ED Communication interface module
Specific Parameters
Rated Operating Voltage 24VDC
Communication Protocol Standard ABB Industrial Control Special Protocol, MODBUS Compatible Protocol
Communication Interface Multi-channel Industrial Standard Communication Terminal Interface
Transmission Rate Adaptive High-speed Transmission Rate
Operating Temperature Range -10℃ to +60℃
Relative Humidity 5% to 95%, Non-Condensing
Dielectric Withstand Voltage 1500VAC
Mounting Type Standard DIN Rail Mounting, Cabinet Panel Fixed Mounting
Protection Class IP20
Weight Approx.1.2kg
Product Performance
Communication Transmission Performance: Equipped with industrial-grade special communication processing chip, supports high-speed data transmission and real-time signal interaction, no delay in transmission response, no data packet loss and no signal distortion, can stably carry large-volume control data and monitoring data transmission, meeting the collaborative communication needs of multiple equipment and nodes.
Anti-interference Stability Performance: Built-in professional communication signal filtering and electromagnetic interference suppression circuits, can effectively resist various interferences such as power grid harmonics, equipment start-stop impact and electromagnetic radiation in industrial sites, completely eliminate communication interruption, data disorder and signal mistransmission problems, and the communication link is stable and smooth all-weather.
System Compatibility Performance: Perfectly adapts to ABB 800xA distributed control system, Master series, P series PLC and all PF series industrial control modules of the same series, supports seamless docking with various ABB control units, I/O modules and power supply modules, completes system communication network construction without additional debugging, and is compatible with mainstream industrial control communication protocols.
Link Monitoring Performance: Built-in real-time communication link monitoring unit, can monitor communication status, data transmission rate and link faults in real time, accurately locate fault points, quickly trigger early warning prompts under abnormal working conditions, facilitating operation and maintenance personnel to quickly troubleshoot faults and ensure continuous operation of the communication system.
Environmental Adaptability Performance: Has excellent wide-temperature environmental adaptability, can operate continuously and stably for a long time in industrial site environments from -10℃ to +60℃, dust, vibration and moisture resistant, adapting to harsh working conditions without constant temperature control such as production workshops, industrial control cabinets and outdoor control cabinets, no communication interruption faults.
Installation and Maintenance Performance: Supports two mounting methods: standard DIN rail quick mounting and cabinet panel fixed mounting, with clear communication interface identification, standardized wiring, simple wiring and debugging process; the module is solid-state electronic design with no vulnerable mechanical parts inside, maintenance-free daily, and module replacement without interrupting the overall system operation.
Safety Protection Performance: Complete electrical isolation between communication circuit and power supply circuit, meeting power frequency withstand voltage safety standards, effectively blocking high and low voltage signal crosstalk and circuit breakdown risks, built-in overvoltage and overcurrent protection circuit, protecting the module itself and back-end communication equipment from damage, improving the safety level of the overall communication system.
