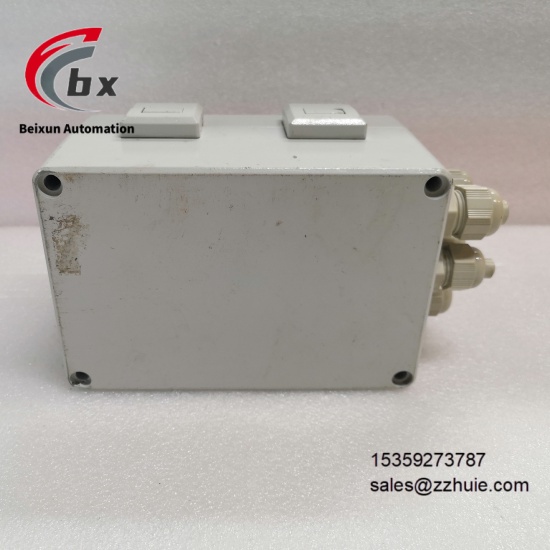

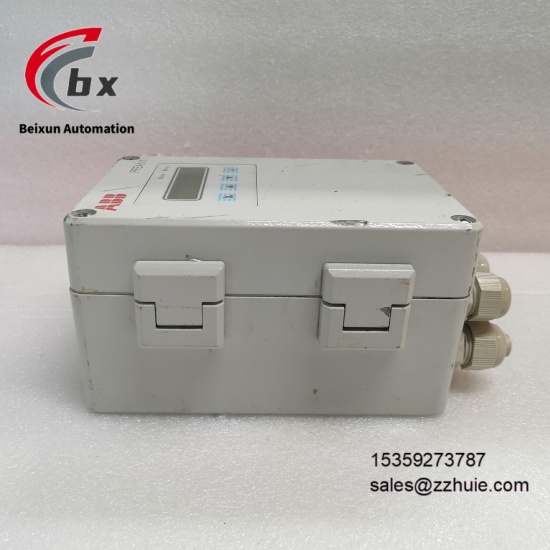

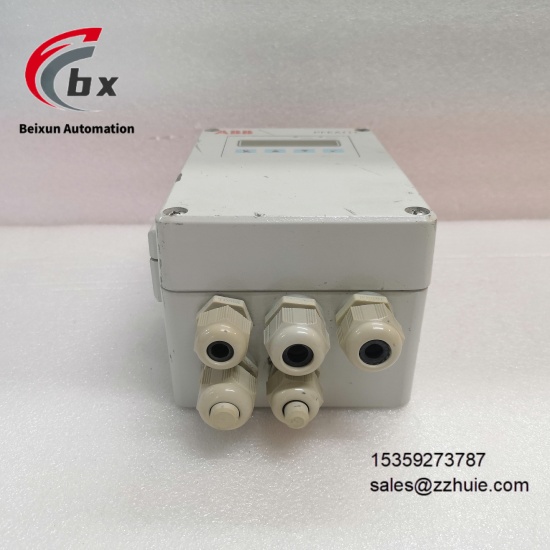

ABB PFEA111-65 3BSE028140R0065 High precision tension control module

ABB PFEA111-65 3BSE028140R0065 High precision tension control module

Specific Parameters​

Core and Function Parameters​

Product Type Industrial-grade Tension Control Module​

Manufacturer ABB​

Model PFEA111-65, Part Number 3BSE028140R0065​

Series PFEA Tension Control Series​

Core Functions Tension Measurement, Tension Setting, Closed-loop Tension Regulation, Actuator Control, Tension Alarm​

Compatible Sensors Strain Gauge Tension Sensors, Tension Transmitters (4-20mA Signal Output)​

Compatible Actuators Magnetic Particle Brakes, Magnetic Particle Clutches, Servo Drives, Pneumatic Brakes​

Input Interfaces 2-channel Analog Input (4-20mA, for tension sensor signals), 2-channel Digital Input (DI)​

Output Interfaces 2-channel Analog Output (4-20mA, for actuator control), 2-channel Digital Output (DO, for alarm/interlock)​

Communication Interface RS485 Interface​

Supported Protocols Modbus RTU Protocol​

Control Algorithm PID Closed-loop Control Algorithm (parameters configurable)​

Tension Setting Methods Local Potentiometer Setting, Panel Button Setting, Remote Communication Setting​

Protection Functions Over-tension Protection, Under-tension Protection, Sensor Open Circuit Protection, Power Fault Protection​

Diagnostic Functions Sensor Signal Abnormality Diagnosis, Actuator Fault Diagnosis, Module Self-fault Self-test​

Display Mode 4-digit LED Numeric Display (actual tension value, set value, parameter value)​

Operation Methods Panel Button Operation, Remote Communication Control​

Installation Method DIN Rail Mounting (35mm standard rail)​

Certification Standards CE, UL, RoHS, IEC 61010-1​

Status Indication Power Normal (Green LED), Operation Status (Yellow LED), Alarm Status (Red LED), Communication Normal (Blue LED)​

Electrical and Performance Parameters​

Power Supply Voltage 24V DC (allowable fluctuation range 18-30V DC)​

Power Consumption Typical 5W, Maximum 8W​

Input Signal Range Analog Input 4-20mA (corresponding to tension 0-full scale, full scale configurable)​

Output Signal Range Analog Output 4-20mA (corresponding to actuator control 0-100%)​

Tension Control Accuracy ±0.5% Full Scale​

Control Response Time ≤10ms​

Digital Input Type NPN/PNP Switchable (dry contact/wet contact compatible)​

Digital Output Capacity 2A/AC 250V, 2A/DC 30V (relay contacts)​

Communication Rate 1200bps-19200bps (configurable)​

Isolation Level 3-way Isolation (Input-Output-Power), Isolation Voltage 2500V AC/1min​

Common Mode Rejection Ratio ≥85dB (50/60Hz)​

Physical and Environmental Parameters​

Overall Dimensions 45mm×175mm×120mm (Width×Height×Depth)​

Weight Approximately 300g​

Operating Temperature Range 0°C to 60°C​

Storage Temperature Range -20°C to 85°C​

Relative Humidity 5%-95% (non-condensing, no dew)​

Protection Rating IP20 (per IEC 60529)​

Housing Material Flame-retardant ABS Plastic (UL94 V-0 Grade)​

Vibration Resistance 10-500Hz, 1.5G (30min per X/Y/Z axis)​

Shock Resistance 25G (11ms, 3 times per X/Y/Z axis)​

Electromagnetic Compatibility Complies with IEC 61000-4-2/3/4/6 Standards​

Product Performance​

±0.5% full scale tension control accuracy + ≤10ms fast response time, ensuring stable tension during coiled material processing with high product quality consistency​

Multiple signal input/output interfaces, compatible with mainstream tension sensors and actuators, adapting to different process requirements with strong compatibility​

Configurable PID parameters, supporting local/remote dual setting methods, adapting to static and dynamic tension control scenarios with excellent operational flexibility​

RS485 + Modbus RTU communication, seamlessly accessing PLC/DCS systems to realize centralized monitoring and parameter modification with high operation and maintenance efficiency​

Integrates multiple protection and fault diagnosis functions, real-time alarm for over/under tension, precise positioning of fault points with high system safety​

Compact DIN rail mounting design, occupying little space, easy to install and disassemble, adapting to dense control system integration​

Wide operating temperature range of 0°C to 60°C + industrial-grade anti-interference design, maintaining stable control performance in complex workshop environments​

High-brightness LED numeric display, clear status indicators, facilitating on-site operators to observe and debug in real time​
