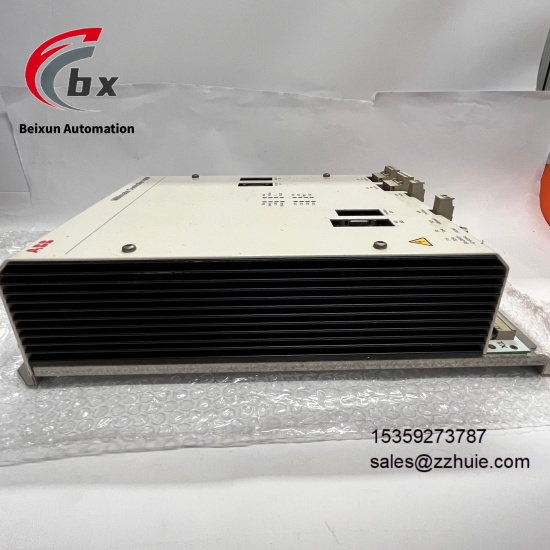

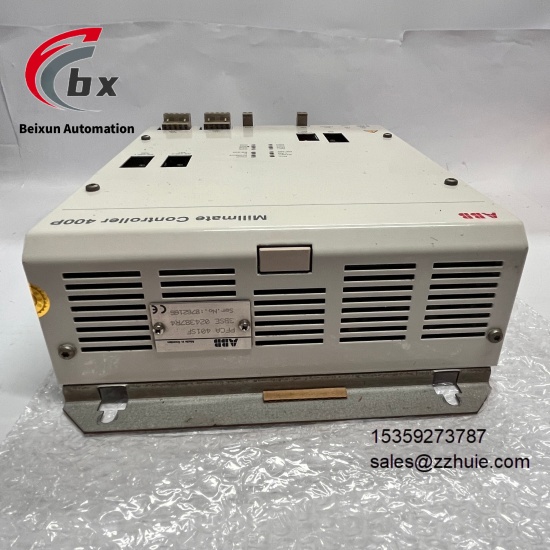

ABB PFCA401SF 3BSE024387R4 Tension control and process control unit
Specific Parameters
Electrical Parameters
Operating Voltage 85-264V AC/DC, supporting wide-range stable inputPower Consumption 140VA, controllable operating energy consumptionAnalog Inputs 4 channels, supporting 0-10V differential input, compatible with tension sensor signalsAnalog Outputs 4 channels, configurable to 0-10V voltage signal or 0-20mA/4-20mA current signalDigital Inputs 8 control signal inputs, supporting 0/+24V voltage level, opto-isolated designDigital Outputs 8 control signal outputs, supporting 0/+24V voltage level, 4+4 isolated groupsCommunication Protocols Compatible with VIP protocol and Modbus-RTU protocol, supporting industrial network linkageCommunication Interfaces Equipped with 1 Ethernet port and 2 RS-232 serial ports, meeting multi-device interconnectionControl Accuracy Speed control accuracy 0.01%, tension control error ≤±0.5% of full scaleResponse Time Step response 20ms (0-90%), no delay in signal processingProtection Features Built-in overvoltage protection, overcurrent protection, opto-isolation protection, electromagnetic shielding protectionCertification Standards Compliant with UL, CE, RoHS, REACH certification standards, meeting industrial safety specifications
Mechanical Parameters
Overall Dimensions 380mm×235mm×90mm, compact structure suitable for industrial control cabinet installationWeight 5kg, stable design ensuring operational reliabilityMounting Method 35mm DIN rail mounting, compatible with standard industrial installation layoutHousing Material Industrial-grade high-strength engineering plastic, with impact resistance and dustproof performanceConnection Method Plug-in terminals, supporting 26-14AWG wires, tool-free solid wire/stranded wire accessProtection Rating IP20, suitable for indoor industrial control environmentsStatus Indication Equipped with power, operation, fault and communication status LED indicators for visual status monitoring
Environmental Parameters
Operating Temperature 0℃ to 70℃, no performance derating over the entire temperature rangeStorage Temperature -40℃ to 70℃, meeting extreme storage and transportation requirementsRelative Humidity 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance Complies with IEC 60068-2-6 standard, 2g acceleration at 5Hz-500Hz frequency rangeShock Resistance Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration)EMC Compliance Complies with EN 55014-1, EN 55014-2 standards, meeting anti-external electromagnetic interference requirements
Product Performance
Excellent control accuracy: 0.01% speed control accuracy and low tension error ensure consistency of production processesEfficient signal processing: 20ms step response for rapid response to sensor signal changes and control commandsRich interface configuration: Multi-channel analog/digital I/O, compatible with various sensors and actuatorsStrong communication compatibility: Multi-protocol support and multi-interface design for seamless connection to industrial control systemsConvenient installation and wiring: Tool-free plug-in terminals save 60% wiring time and reduce deployment costsHigh space utilization: Compact design saves 75% panel space compared with traditional installationsComprehensive self-diagnostic capability: Integrates sensor testing and fault monitoring functions for real-time fault feedbackHigh operational stability: Industrial-grade materials and multiple protection designs adapt to complex industrial working conditionsCompliant environmental performance: Complies with RoHS directives to meet green production requirements
