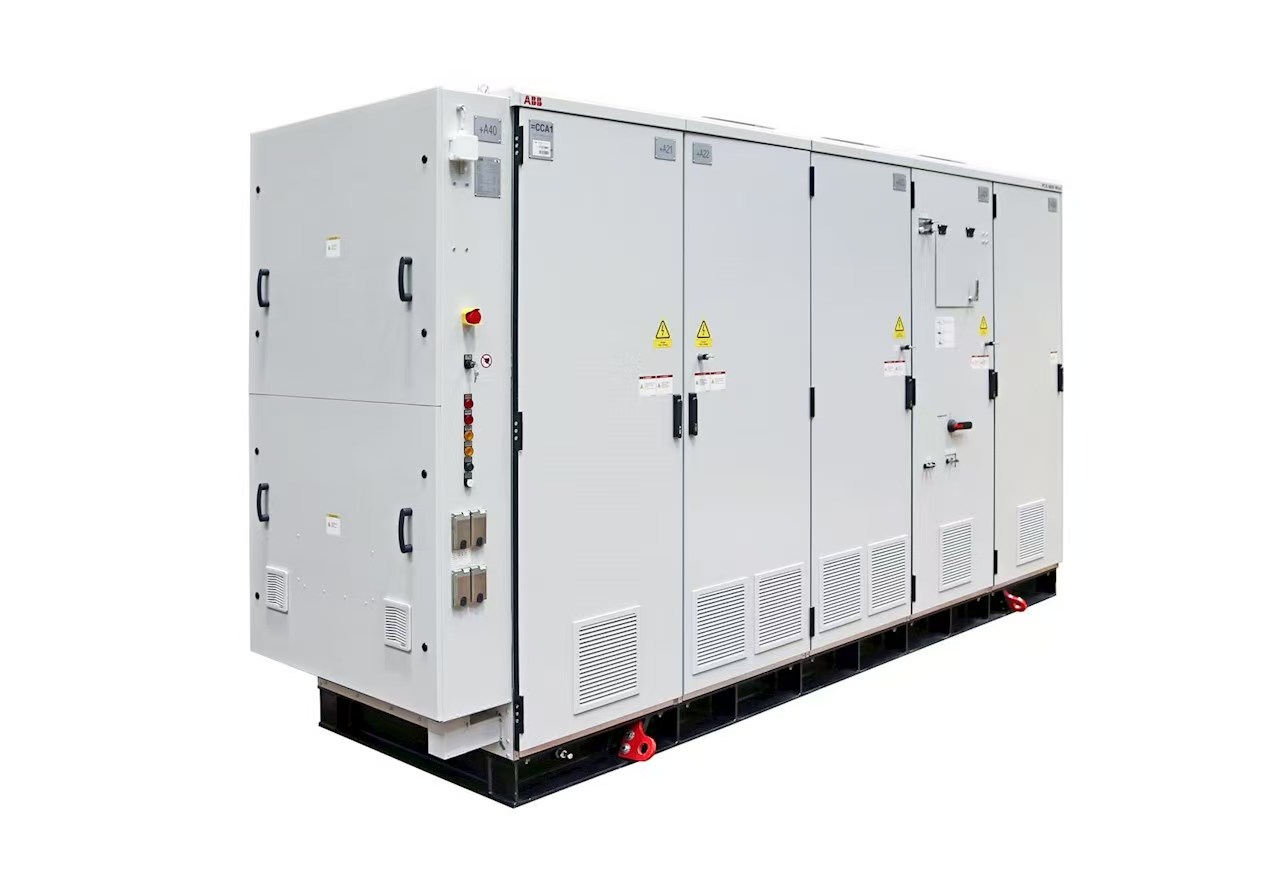

ABB PCS6000 Medium Voltage Power Conversion Integrated Equipment

Specific Parameters

Core Electrical Parameters
Input Voltage: 3.3kV, 6kV, 10kV, 11kV (±10% grid fluctuation tolerance, compliant with IEC 60038)
Input Frequency: 50Hz/60Hz (±5% fluctuation tolerance)
Output Voltage: 0 to rated input voltage (continuously adjustable, voltage resolution 0.1V)
Output Frequency: 0 to 120Hz (frequency accuracy ±0.01Hz, acceleration/deceleration ramp 0.1-100Hz/s adjustable)
Power Range: 2.5MW-100MW (3.3kV class: 2.5MW-20MW; 6kV class: 5MW-40MW; 10kV/11kV class: 10MW-100MW)
Conversion Efficiency: ≥98.5% (at rated load, including total system loss; ≥98% at 50% light load)
Power Factor: ≥0.95 (rated load); ≥0.90 (no-load)
Output Total Harmonic Distortion (THD): ≤5% (no external filter required, compliant with IEEE 519-2014)
Overload Capacity: 110% rated load for 1 minute; 150% rated load for 1 second

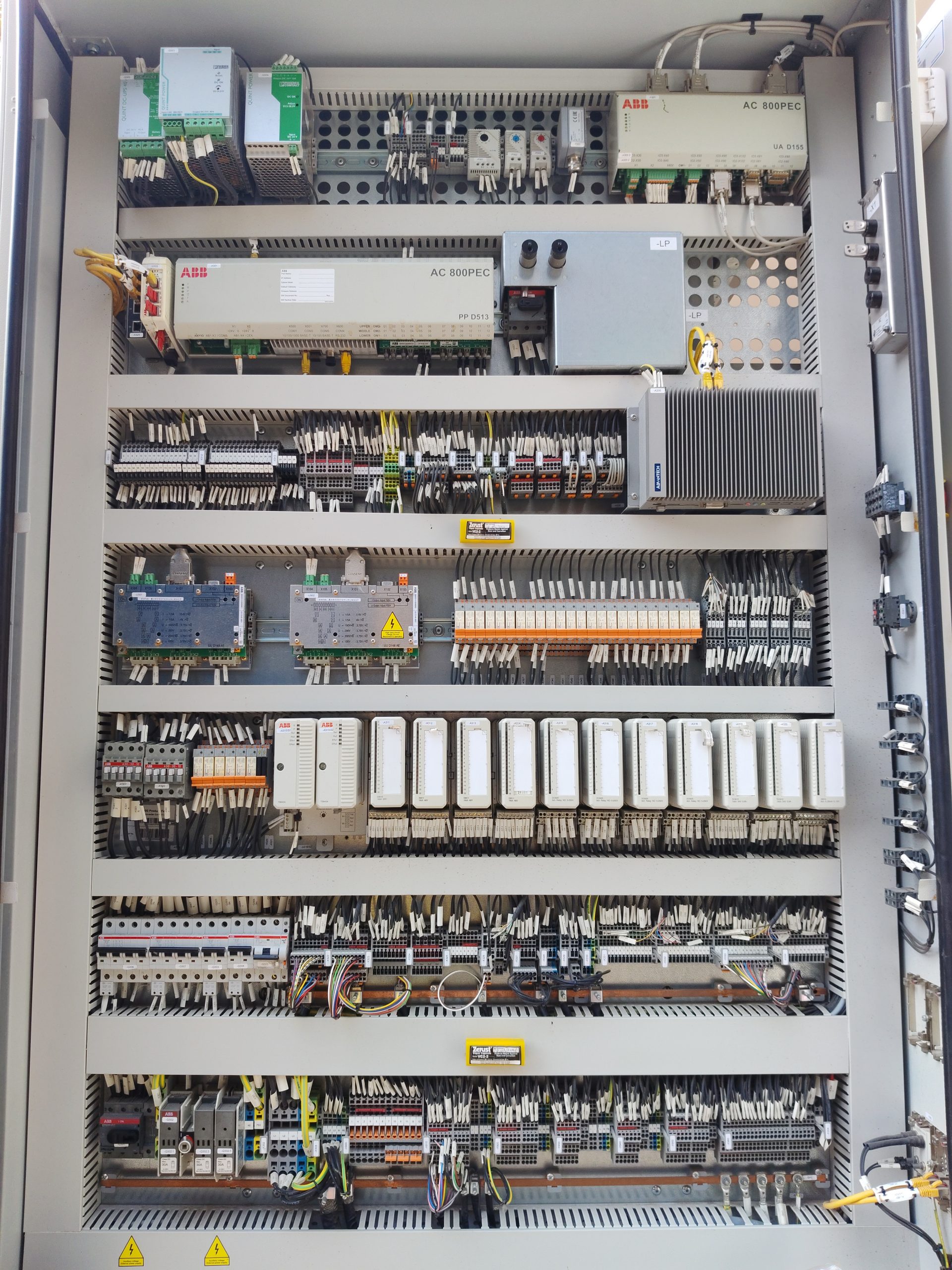

System Configuration Parameters

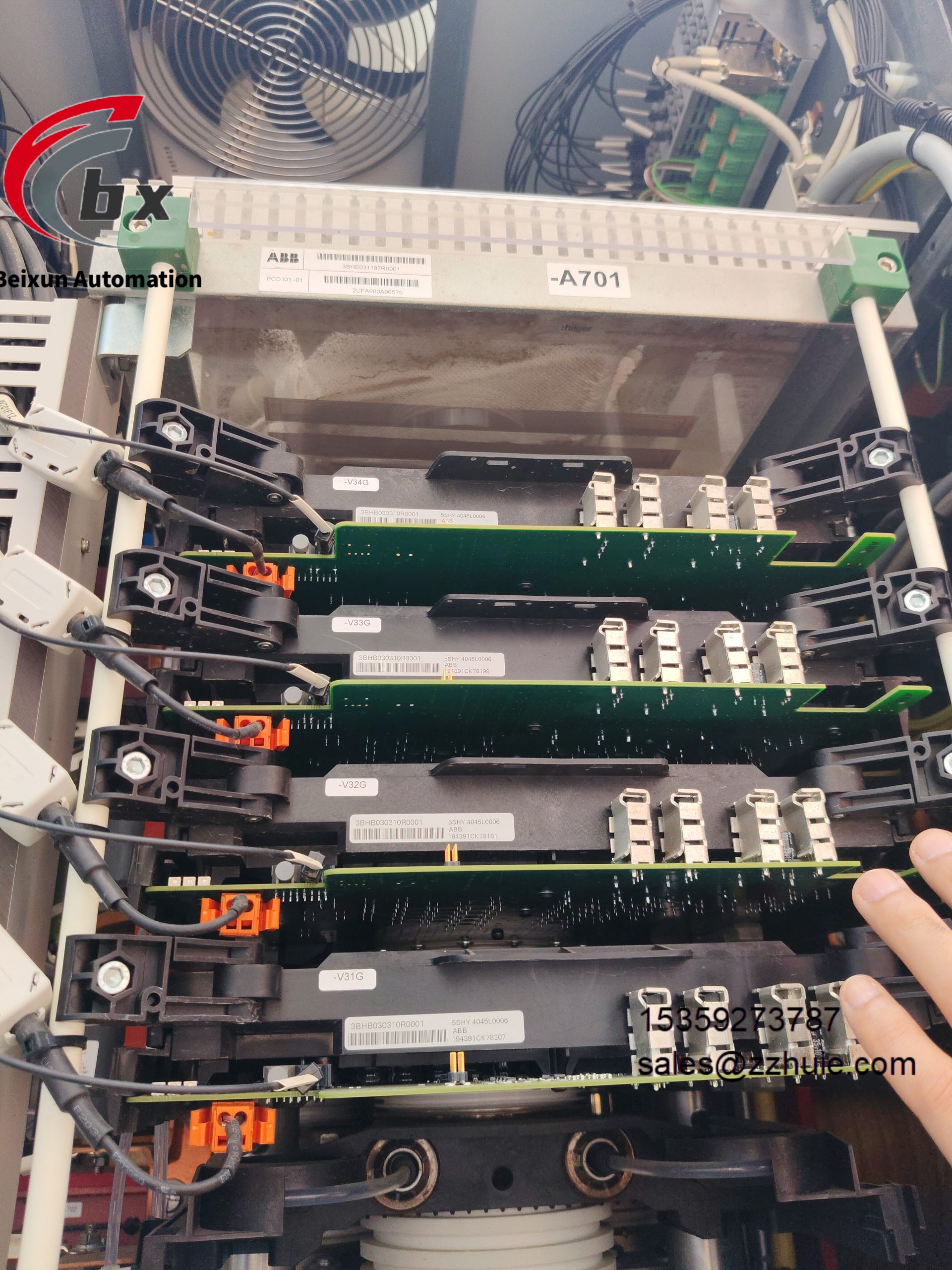

Power Devices: IGBT (model FF450R12ME4) for 2.5MW-40MW; IGCT (model 5SHX14H4500) for 40MW-100MW

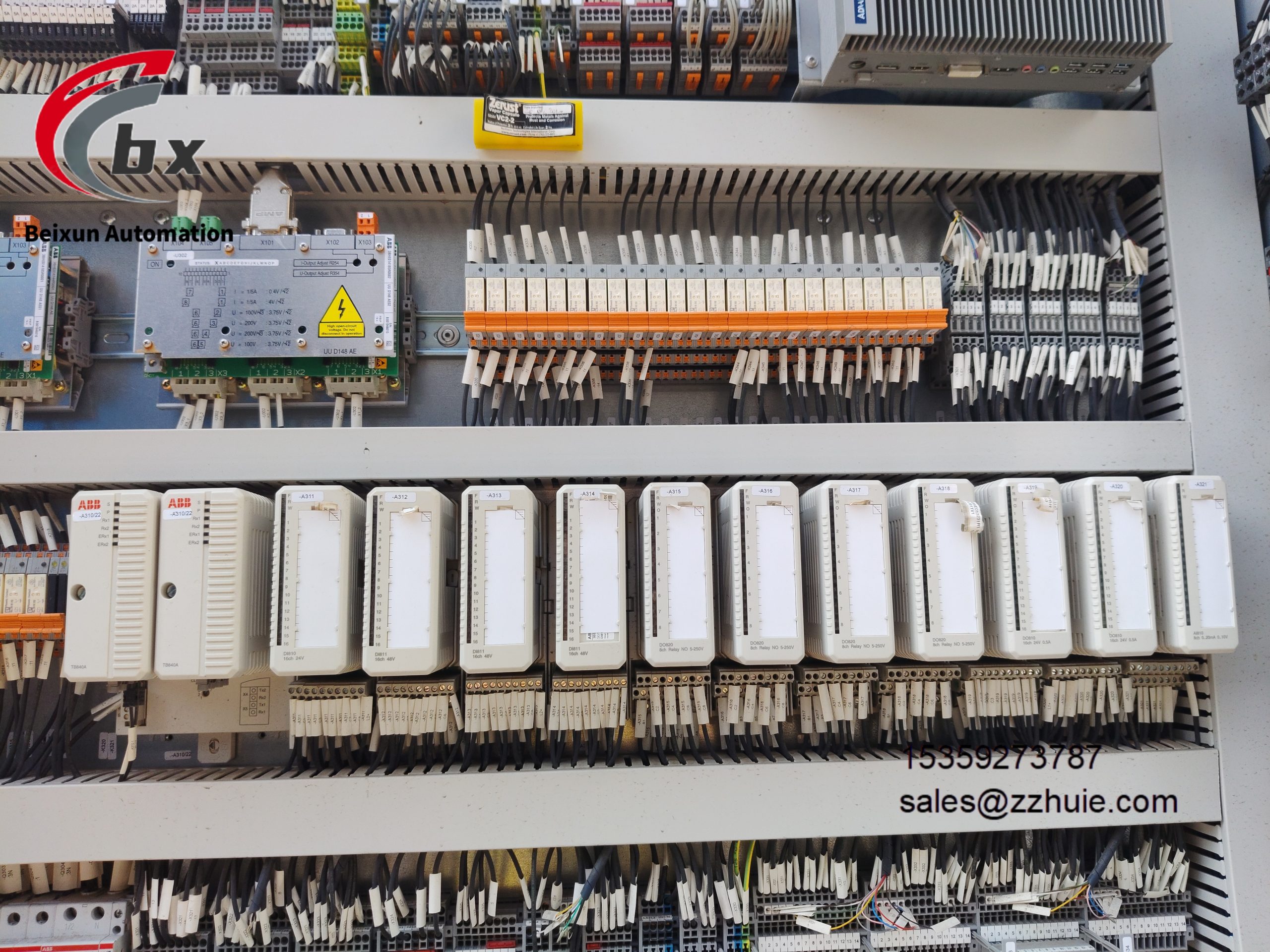

Control Unit: Dual-core DSP (TMS320F28335) + FPGA (XC7K325T), operation speed ≥150MIPS
Cooling System: Forced air cooling (airflow 800-1500m³/h, wind pressure ≥200Pa) for 2.5MW-20MW; Water cooling (flow 10-30m³/h, inlet-outlet temperature difference ≤8°C) for 20MW-100MW

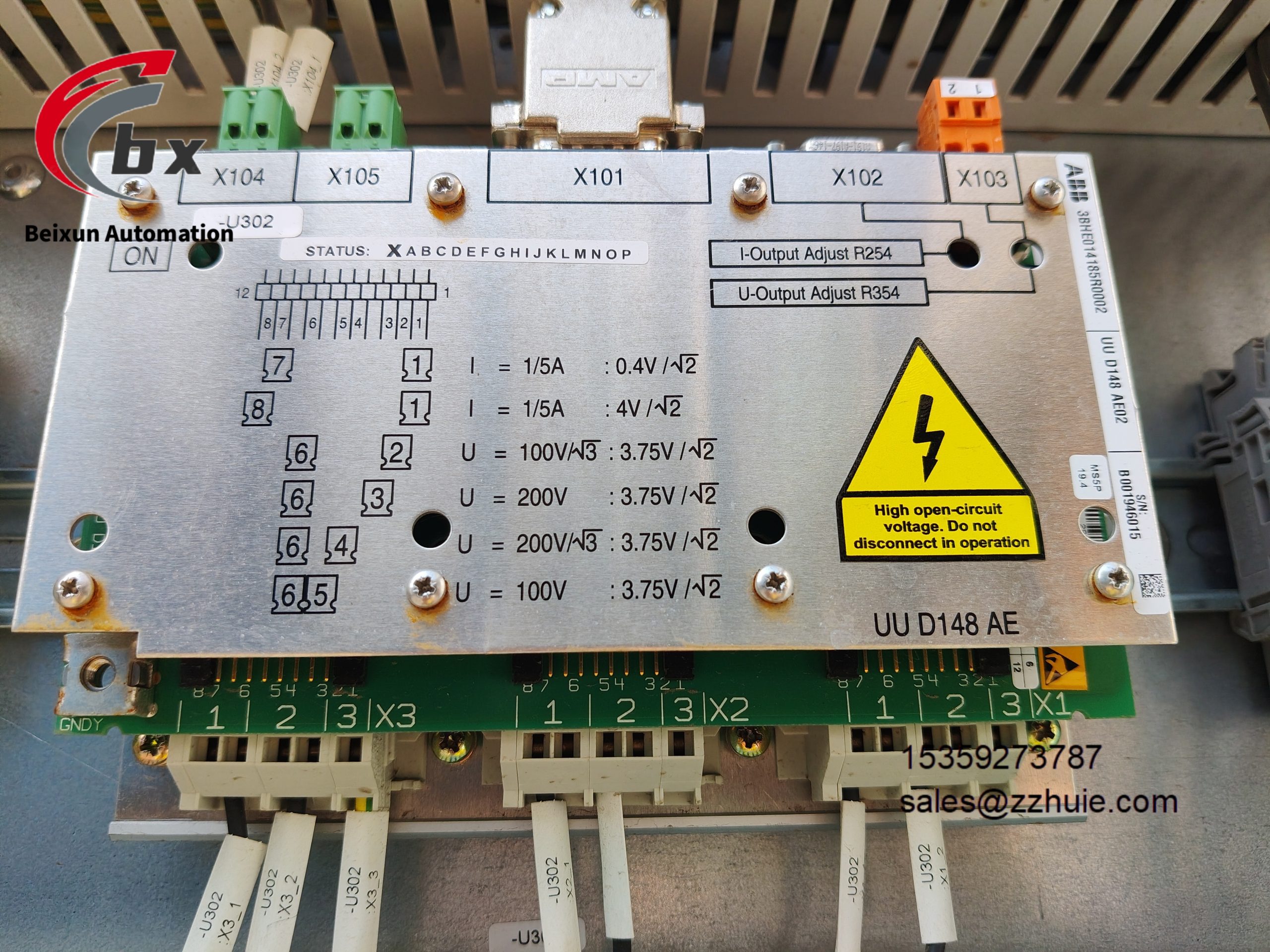

Incoming Module: Integrated vacuum circuit breaker (rated current 630-3150A, breaking capacity 31.5kA) + input filter
HMI: 10.4-inch color touch screen, supporting Chinese/English switching, real-time display of operating parameters and fault codes
Auxiliary Power: AC 220V/380V±10%, output DC 24V/10A, backup battery life ≥4 hours
Environmental Adaptation Parameters
Operating Temperature: -10°C to 40°C (no derating); 40°C to 50°C (2% rated power derating per 1°C increase); -25°C to -10°C (low-temperature preheating kit required)
Relative Humidity: ≤95% (non-condensing, ambient temperature ≤35°C); linearly reduced to ≤60% from 35°C to 40°C
Altitude: ≤1000m (no derating); 1000m-3000m (1% rated power derating per 100m increase)
Protection Class: IP21 for main system; IP54 protection kit (with rain cover and dust seal) optional for outdoor installation
Vibration Resistance: ≤5g (10-2000Hz, compliant with IEC 60068-2-6); Shock Resistance: ≤10g (11ms half-sine wave)
EMC: Compliant with IEC 61800-3 Category C2, radiated emission ≤40dBμV/m (at 10m)

Product Performance

The integrated equipment adopts parallel redundant design of power modules; when a single module fails, the system automatically switches to redundant operation mode, with Mean Time Between Failures (MTBF) ≥100,000 hours. The control unit supports Direct Torque Control (DTC) with torque response time <2ms and speed control accuracy ±0.1% of rated speed, enabling rapid motor start-stop and dynamic load adjustment. The intelligent cooling system is equipped with temperature sensors, automatically adjusting cooling intensity according to power module temperature, reducing energy consumption by 15%-20% compared with fixed cooling mode.

The system integrates multiple protection mechanisms: overvoltage (120% rated voltage instantaneous trip), overcurrent (150% rated current trip in 1 second), overload (110% rated load trip in 1 minute), overheating (power module temperature ≥95°C trip), ground fault (zero-sequence current ≥500mA trip), phase loss and over/under frequency protection, ensuring safety of equipment and motors. Communication interfaces support Profibus DP/PA, Modbus RTU/TCP, EtherNet/IP, Profinet IO and OPC UA protocols, enabling remote monitoring, parameter configuration and fault diagnosis, as well as industrial internet platform access.

In addition, the integrated equipment supports parallel operation of multiple units, achieving power expansion to over 100MW through current sharing control technology, adapting to large-scale industrial drive scenarios. It also has grid voltage dip withstand capability, maintaining operation for more than 150ms when voltage drops to 60% of rated value, ensuring production continuity.
