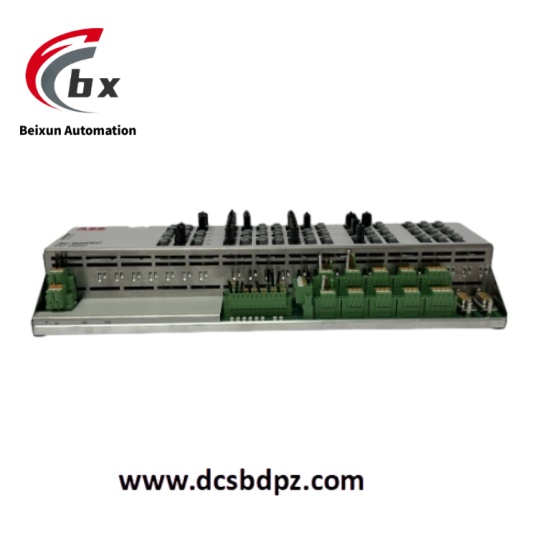

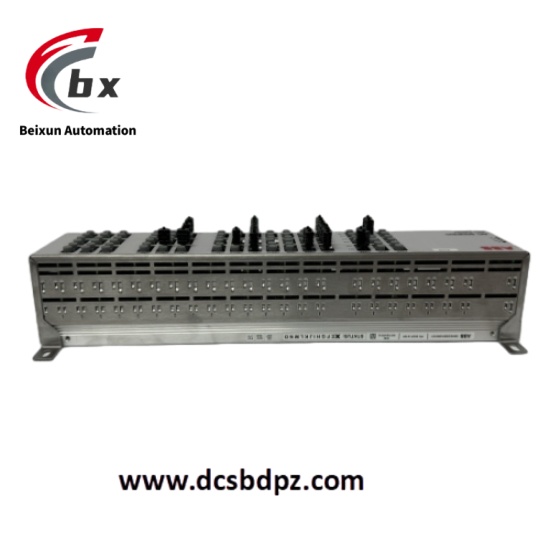

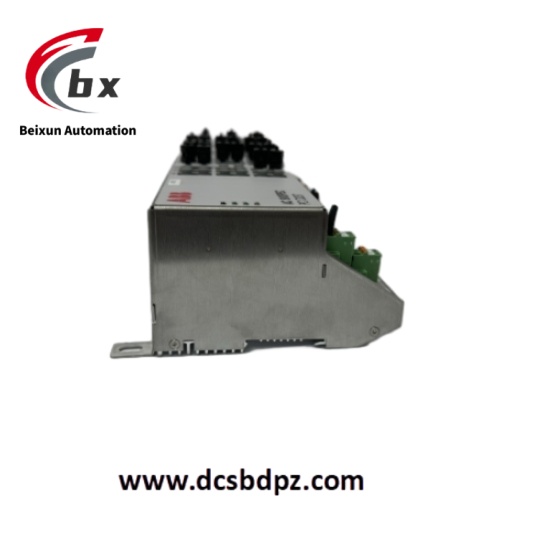

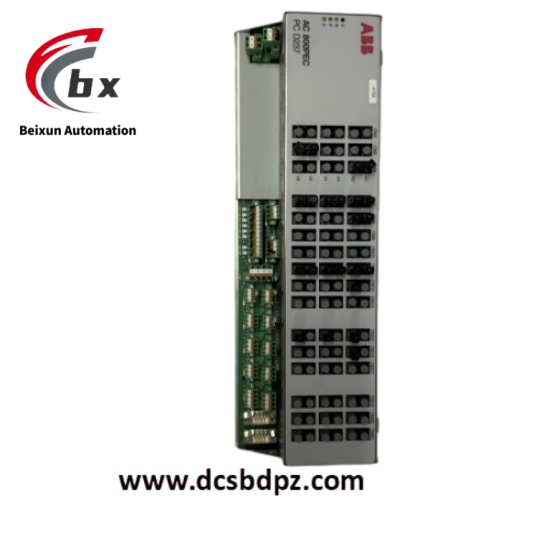

ABB PCD237A101 3BHE028915R0101 Current sensor module
The ABB PCD237A101 3BHE028915R0101 is a versatile module. It can be used as a high - performance current sensor module for accurately measuring and monitoring electrical currents, suitable for various electrical applications such as motor control, power generation, and power transmission. Meanwhile, it can also be used as a relay module. It has a high - density relay configuration, capable of controlling multiple relay channels simultaneously. The relay switching time is fast, and it can complete channel switching in the microsecond level. It also supports relay switching operations of high voltage and high current. This module is based on the PXI bus architecture and has flexible channel configuration capabilities. Channel mapping and configuration can be carried out through software. In addition, it can be integrated with NI's software platforms and toolkits, such as LabVIEW, LabWindows/CVI, and MeasurementStudio.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB PCD237A101 3BHE028915R0101 Current sensor module
Specific Parameters
- Input voltage: 24V DC
- Output voltage: DC 24V
- Input channels: Analog input, digital input
- Output channels: Analog output, digital output
- Communication ports: Ethernet, serial, USB
- Communication protocols: Modbus TCP/IP, Modbus RTU, DNP3
- Processor: ARM Cortex
- Memory: Flash and RAM
- Power supply: 24VDC
- Operating temperature range: -20°C to 60°C
- Enclosure protection level: IP65
- Net weight of product: 0.2 kg
Product Performance
- Accurate measurement and control: When used as a current sensor module, it can accurately measure and monitor electrical currents. As a relay module, the fast switching time helps to improve the test speed and accuracy, especially in applications that require rapid switching of multiple signal paths. The low current leakage and contact resistance ensure the reliability and accuracy of signal transmission.
- Flexible configuration and integration: Based on the PXI bus architecture, it has flexible channel configuration. Channel mapping and configuration can be carried out according to different requirements through software. Moreover, it can be integrated with a variety of NI software platforms and toolkits, allowing users to flexibly customize and expand system functions according to actual situations.
- Environmental adaptability and reliability: With an IP65 enclosure protection level, it can resist a certain degree of dust and water splashing. The operating temperature range is -20°C to 60°C, enabling it to adapt to various industrial environments. After strict testing and verification, it has good reliability and stability, ensuring long – term stable operation.
