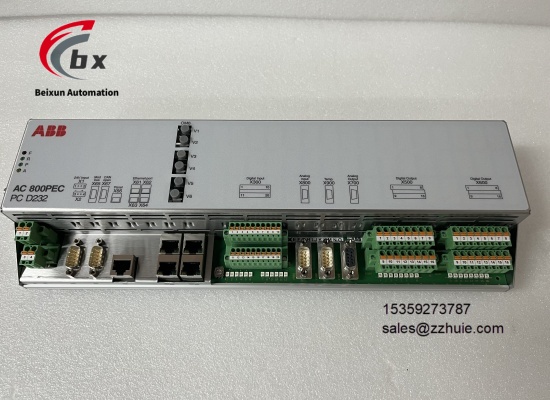

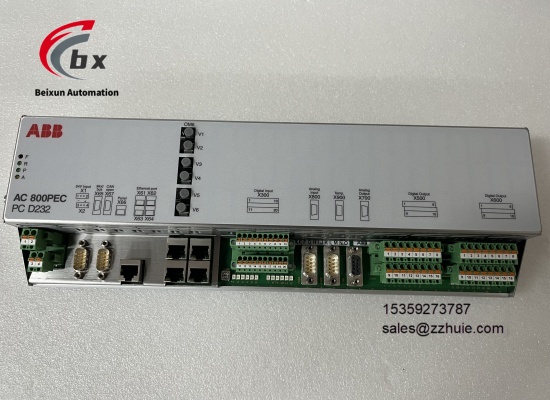

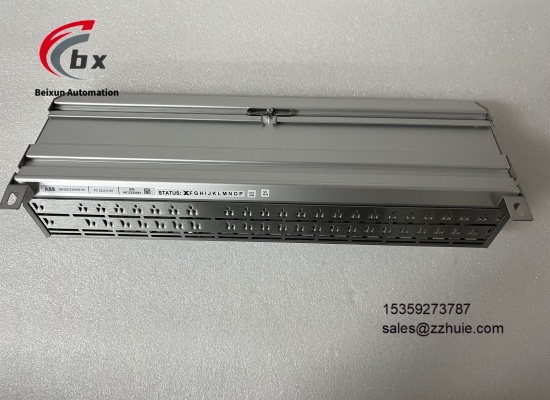

ABB PCD232A101 3BHE022293R0101 controller module

ABB PCD232A101 3BHE022293R0101 controller module

Specific Parameters

Brand ABB

Product Series PCD200 Series Controller Module

Product Type High-performance Industrial Controller Module

Model PCD232A101 3BHE022293R0101

Input Voltage DC 9~36V Typical value DC 24V

Power Consumption Less than 4W

Operating Temperature Range -40℃ to 70℃

Storage Temperature Range -40℃ to 85℃

Communication Interfaces Supports Modbus TCP/IP, Ethernet/IP, RS232/485 protocols

Processing Speed 550μs

Output Frequency 100Hz

Program Capacity 300

Data Capacity 200

Memory Capacity 128-256Mbyte DDR Memory

I/O Points 24

Protection Level IP67

Dimensions 100mm×150mm×50mm

Weight Approximately 1.5kg

Installation Method Modular Installation

Product Performance

Adopts modular design, compact structure, easy to install and maintain

Processing speed up to 550μs, with high-speed data processing capability, capable of efficiently executing complex control logic

Supports multiple communication protocols, rich in communication interfaces, and can be seamlessly integrated with various industrial equipment

IP67 high protection level, adaptable to harsh industrial environments, and can operate stably in the wide temperature range of -40℃ to 70℃

High reliability, supports remote diagnosis and maintenance, greatly reducing operation and maintenance costs

Supports multiple programming languages and development environments, and can flexibly customize control schemes according to actual needs

Equipped with complete safety protection functions, capable of resisting external interference and attacks, ensuring the safety of industrial control processes

Output frequency up to 100Hz, fast control response, ensuring control accuracy and stability
