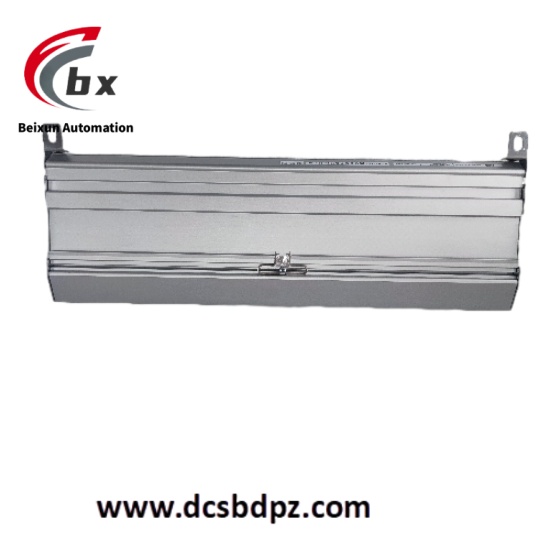

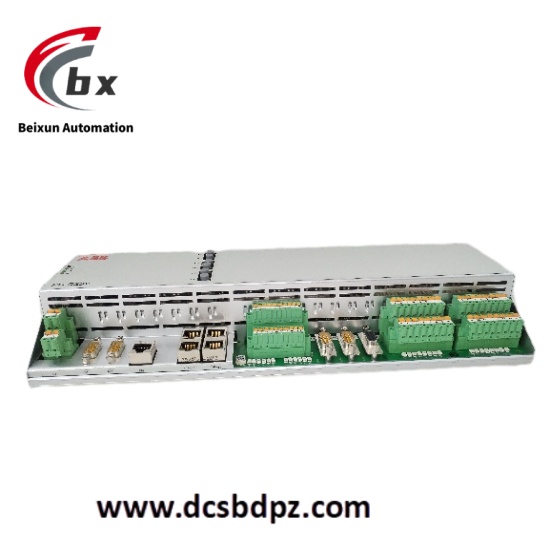

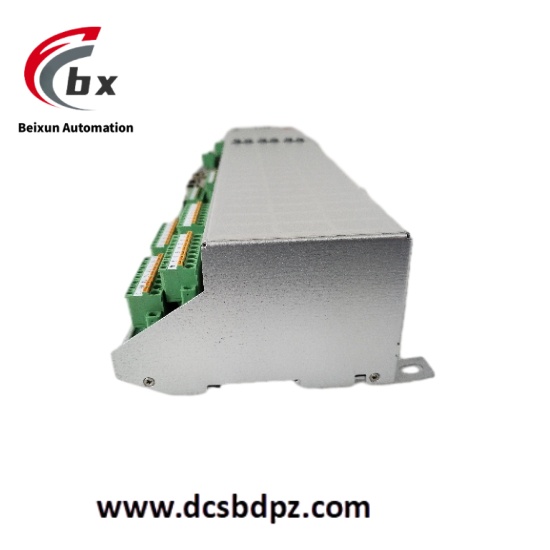

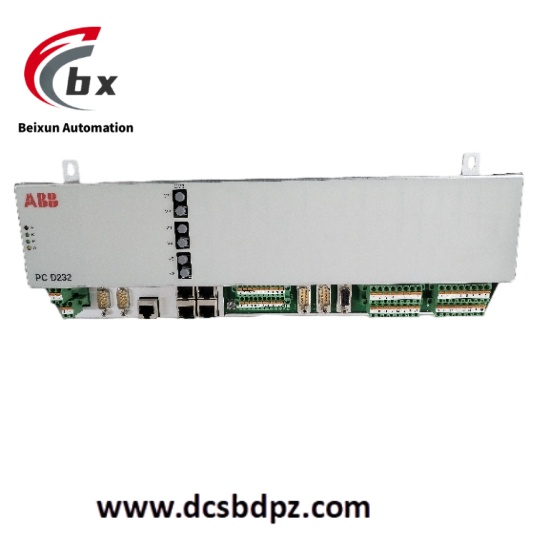

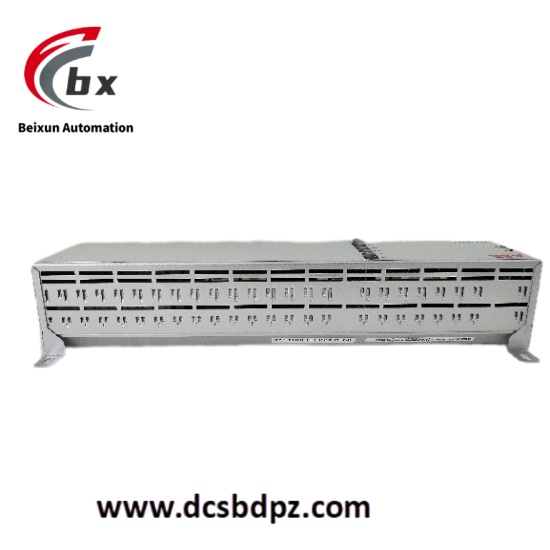

ABB PCD232A 3BHE022293R0101 Process Control Unit
ABB PCD232A 3BHE022293R0101 is a process control unit and an important part of the ABB Symphony Plus control system. This unit is used to receive various process signals from industrial sites, process them through built-in control algorithms, and output control commands to actuators to realize automatic management of the production process. Its design meets industrial-grade standards and can work in coordination with I/O modules, communication modules, etc. in the system to build a complete process control system.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB PCD232A 3BHE022293R0101 Process Control Unit
Specific Parameters
- Processor: 32-bit RISC processor with an operating speed of 100 MIPS.
- Memory capacity: 32MB program memory, 16MB data memory.
- Digital input/output: 32 digital inputs (24V DC), 32 digital outputs (relay output, 250V AC/5A).
- Analog input/output: 16 analog inputs (4-20mA), 8 analog outputs (4-20mA).
- Operating voltage: 24V DC (allowable fluctuation range ±10%).
- Power consumption: Maximum 35W.
- Operating temperature range: 0°C to 55°C.
- Storage temperature range: -40°C to 70°C.
- Relative humidity: 5%-95% (non-condensing).
- Communication interface: 2 Ethernet interfaces (10/100Mbps), 2 RS485 interfaces.
- Dimensions: 210mm×160mm×100mm (length×width×height).
- Weight: 2.5kg.
Product Performance
- High-speed processing: The 32-bit processor has a fast operating speed, can efficiently execute complex control algorithms, and meets the high real-time requirements of process control.
- Rich interfaces: Integrates multiple I/O interfaces and communication interfaces, which can directly connect various sensors, actuators and upper computers, simplifying the system wiring process.
- Stable and reliable: Uses industrial-grade components and redundant design, can work stably for a long time in a wide temperature environment, with a mean time between failures (MTBF) of ≥120,000 hours.
- Excellent anti-interference: Passes EMC certification, has excellent electromagnetic compatibility, and can effectively resist electromagnetic interference in industrial environments.
- Flexible programming: Supports IEC 61131-3 standard programming languages (ladder diagram, function block diagram, etc.), facilitating users to carry out program development and debugging.
