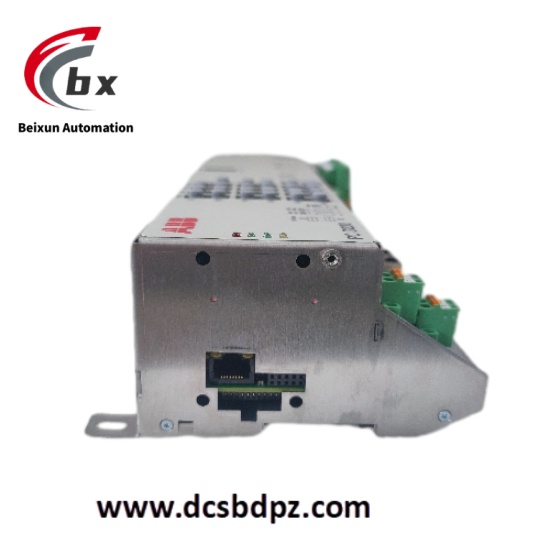

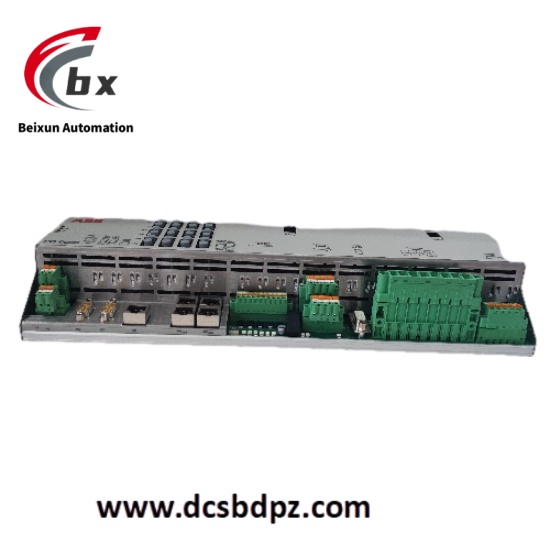

ABB PCD230A101 3BHE022291R0101 Process Control Unit
ABB PCD230A101 3BHE022291R0101 is a process control unit, which is a core component of the ABB Symphony Plus control system. This unit collects various process signals from industrial sites, processes them using built-in control algorithms, and outputs control commands to actuators to realize automatic control of the production process. Its design meets industrial-grade standards and can work with I/O modules, communication modules, etc. in the system to build a complete process control system.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB PCD230A101 3BHE022291R0101 Process Control Unit
Specific Parameters
- Processor: 32-bit RISC processor with an operating speed of 80 MIPS.
- Memory capacity: 16MB program memory, 8MB data memory.
- Digital input/output: 16 digital inputs (24V DC), 16 digital outputs (relay output, 250V AC/5A).
- Analog input/output: 8 analog inputs (4-20mA), 4 analog outputs (4-20mA).
- Operating voltage: 24V DC (allowable fluctuation range ±10%).
- Power consumption: Maximum 25W.
- Operating temperature range: 0°C to 55°C.
- Storage temperature range: -40°C to 70°C.
- Relative humidity: 5%-95% (non-condensing).
- Communication interface: 2 Ethernet interfaces (10/100Mbps), 1 RS485 interface.
- Dimensions: 210mm×160mm×100mm (length×width×height).
- Weight: 2.3kg.
Product Performance
- Efficient computing: The 32-bit processor has high-speed data processing capability, can quickly execute complex control algorithms, and meets the real-time requirements of process control.
- Rich interfaces: Integrates multiple I/O interfaces and communication interfaces, which can directly connect various sensors, actuators and upper computers, simplifying system wiring.
- Stable operation: Uses industrial-grade components and redundant design, can work stably for a long time in a wide temperature environment, with a mean time between failures (MTBF) of ≥100,000 hours.
- Strong anti-interference: Passes EMC certification, has good electromagnetic compatibility, and can resist electromagnetic interference in industrial environments.
- Flexible programming: Supports IEC 61131-3 standard programming languages (ladder diagram, function block diagram, etc.), facilitating users to carry out program development and debugging.
