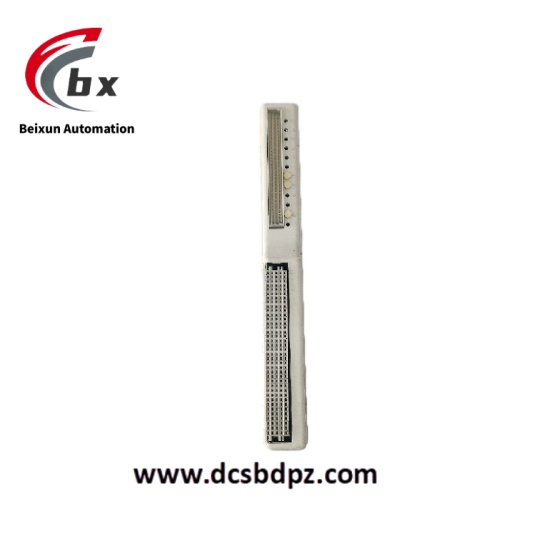

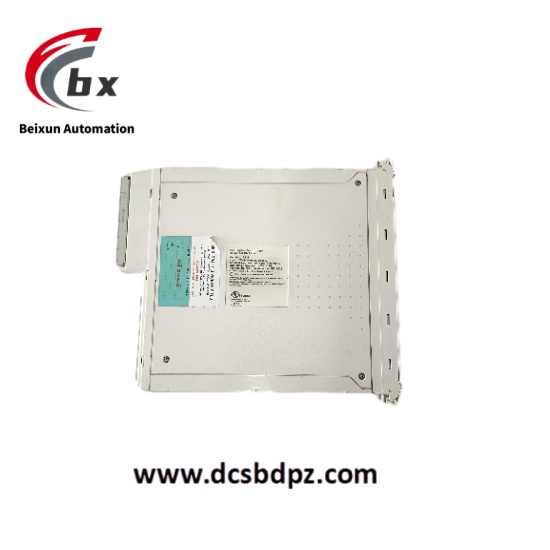

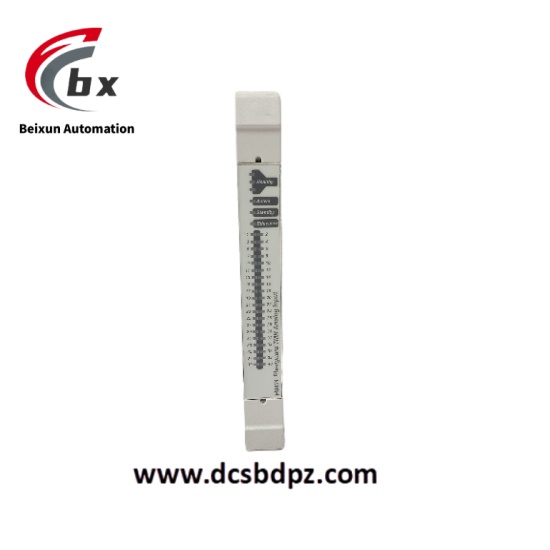

ABB P8431 Digital input/output hybrid module

Specific Parameters

Digital Input Parameters
Number of Input Channels: 8 channels
Input Type: Dry contact (passive contact), wet contact (active signal)
Input Voltage Range: 24VDC (±10%)
Input Current: 2mA (typical), max 5mA
Response Time: ≤1ms (from signal input to status update)
Isolation Level: 2.5kVAC between channels, between channel and power supply (1 minute)
Input Status Indication: LED indicator per channel (green = on, off = off)
Digital Output Parameters
Number of Output Channels: 8 channels
Output Type: Relay output (normally open contact)
Rated Load Voltage: AC 250V/DC 30V
Rated Load Current: 2A per channel, total load ≤10A
Operation Time: Pull-in ≤10ms, release ≤5ms
Mechanical Life: ≥1,000,000 cycles (no load)
Electrical Life: ≥100,000 cycles (rated load)
Output Status Indication: LED indicator per channel (red = closed, off = open)
Electrical & Power Parameters
Supply Voltage: 24VDC (±10%)
Power Consumption: Static ≤3W, dynamic (full load) ≤10W
Power Isolation: 2.5kVAC (between power supply and input/output channels, 1 minute)
Common Mode Rejection Ratio: ≥100dB (50/60Hz)
Environmental & Mechanical Parameters
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing)
Protection Class: IP20 (module itself)
Dimensions: 45mm (W) × 100mm (H) × 165mm (D)
Weight: Approximately 450g
Mounting Method: 35mm DIN rail (compliant with EN 60715 standard)

Product Performance

P8431 input channels adopt photoelectric isolation technology, and output channels adopt relay isolation design, realizing complete electrical isolation between channels and between channels and the system, effectively resisting electromagnetic interference in industrial sites and ensuring undisturbed signal transmission. The input response time is ≤1ms, which can quickly capture on-site signal changes, meeting the needs of high-speed discrete control; the output relay has high mechanical and electrical life, adapting to control scenarios with frequent start-stop.

The hot-swap function supports on-line maintenance of the module, and the replacement process does not affect the overall operation of the system, significantly reducing downtime and improving system availability. The module integrates comprehensive self-diagnosis functions, which can detect relay sticking, power undervoltage, channel open/short circuit and other faults, and transmit fault codes to the control system in real-time through the communication interface, facilitating maintenance personnel to quickly locate problems. It communicates seamlessly with ABB control systems via protocols such as PROFIBUS DP and Profinet IO, with data update delay ≤50ms, ensuring real-time execution of control commands and timely and accurate status feedback.
