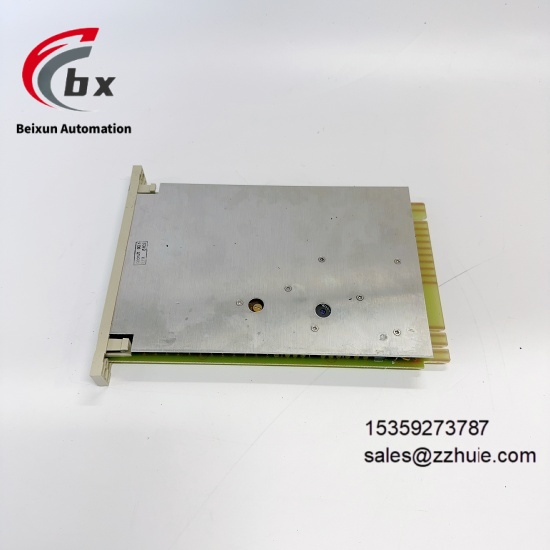

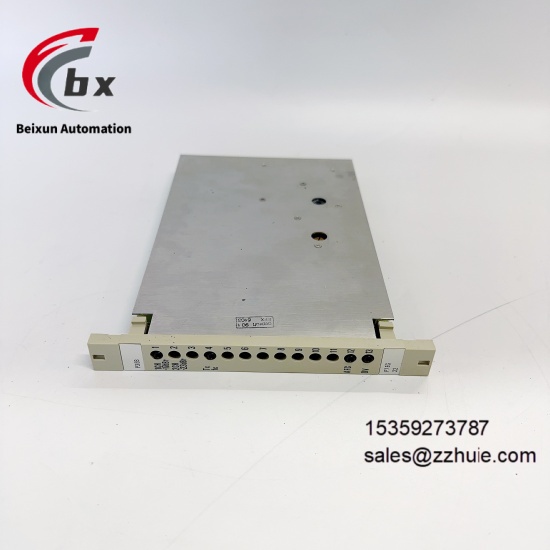

ABB P3EB HENF315223R1 Enhanced industrial grade process controller

ABB P3EB HENF315223R1 Enhanced industrial grade process controller

SPECIFIC PARAMETERS​

Brand ABB​

Product Series P3 Series Enhanced Process Controller​

Product Type Industrial-grade High-performance Process Control Module​

Model P3EB HENF315223R1​

Working Voltage 24VDC Wide Range Adaptation 19.2-28.8VDC​

Working Temperature -40℃ to 70℃​

Storage Temperature -55℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP20 (Rail-mounted Installation)​

Installation Method 35mm DIN Rail Installation​

Processor Dual-core Industrial-grade CPU 1.2GHz Main Frequency​

Memory Configuration 4GB DDR4 RAM 16GB eMMC Flash​

Programming Environment ABB Automation Builder (Supports Full Range of IEC 61131-3 Programming Languages)​

Control Cycle Minimum 0.08ms​

Redundancy Support Supports Controller Hot Redundancy Configuration (Dual-machine Backup)​

Communication Interfaces 4 Gigabit Ethernet Ports (Supports TCP/IP, PROFINET, EtherNet/IP) 2 RS485 Serial Ports (Modbus RTU) 2 CANopen Interfaces 1 PROFIBUS DP Master Interface​

I/O Expansion Capacity Supports Up to 48 S800I/O Modules Maximum 12288 I/O Points​

Current Consumption Typical 380mA (24VDC) Maximum 550mA (24VDC)​

Size 140mm×100mm×50mm (Length×Width×Height)​

Weight 0.8kg​

Power Consumption Typical 9.1W Maximum 13.2W​

Certification Qualification CE UL CSA IEC 61010-1 IEC 61508 SIL 3 IEC 61850 IEC 61158​

Compatible System ABB AC 800M Control Systems S800I/O Distributed Modules SCADA Systems Industrial Ethernet Devices Third-party PLCs​

Diagnostic Function Support Hardware Redundancy Status Monitoring Communication Fault Location I/O Module Online Diagnosis Power Supply Abnormality Alarm Program Operation Status Monitoring​

Anti-interference Level Complies with EN 55032/EN 61000-6-2/EN 61000-6-4 Industrial EMC Standards​

MTBF (Mean Time Between Failures) ≥400,000 Hours​

PRODUCT PERFORMANCE​

Dual-core industrial-grade CPU with 1.2GHz main frequency, combined with 4GB DDR4 RAM and 16GB eMMC Flash, quickly processes complex process control logic and large-scale I/O data, with control cycle as low as 0.08ms, ensuring millisecond-level response of control commands​

Supports controller hot redundancy configuration, dual-machine real-time data synchronization, and disturbance-free switchover in case of faults, ensuring uninterrupted critical control processes and improving system reliability​

Compatible with the full range of IEC 61131-3 programming languages, realizing integrated programming of process control, logic interlock and batch control through ABB Automation Builder, adapting to multi-scenario industrial control needs​

Integrates 4 Gigabit Ethernet ports and multiple industrial protocol interfaces, enabling seamless interconnection with distributed I/O modules, intelligent instruments, upper SCADA systems and third-party equipment to meet complex system integration needs​

Industrial-grade wide-temperature design, can operate stably in the temperature range of -40℃ to 70℃ and non-condensing humidity environment of 5%-95%, adapting to extreme industrial scenarios such as alpine, high temperature and high humidity​

Supports expansion of up to 48 S800I/O modules and maximum 12288 I/O points, covering the multi-area and multi-parameter centralized control needs of large industrial plants​

Built-in comprehensive redundancy status monitoring and fault diagnosis functions, real-time feedback of hardware operation status, communication link quality and I/O module working conditions, accurate fault location, reducing operation and maintenance costs​

24VDC wide-range power supply design, withstanding voltage fluctuations and transient sags, adapting to complex industrial power grid environments, ensuring continuous and stable power supply to the controller​

Complies with IEC 61508 SIL 3 safety standard, can be applied to high safety level control systems to ensure the safety and controllability of industrial production processes​

35mm DIN rail installation and modular design, facilitating system expansion and maintenance, and flexibly expanding the control range according to production needs​

Supports remote programming, debugging and firmware upgrade, and equipment maintenance can be completed through the network without on-site attendance, improving operation and maintenance efficiency​

Data transmission adopts encryption and verification mechanisms to prevent data leakage and tampering, ensuring the integrity of control command and monitoring data transmission​
