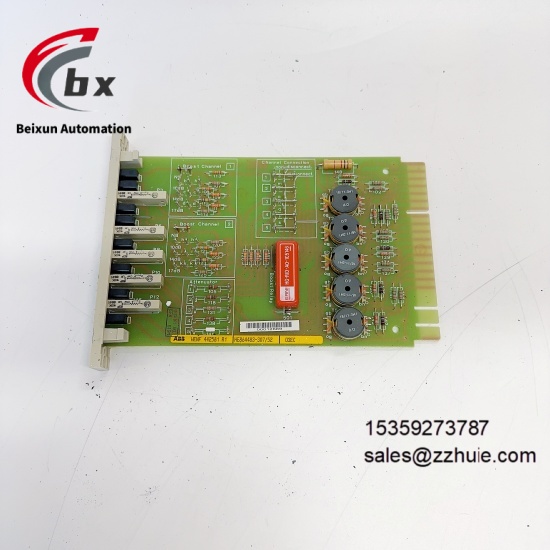

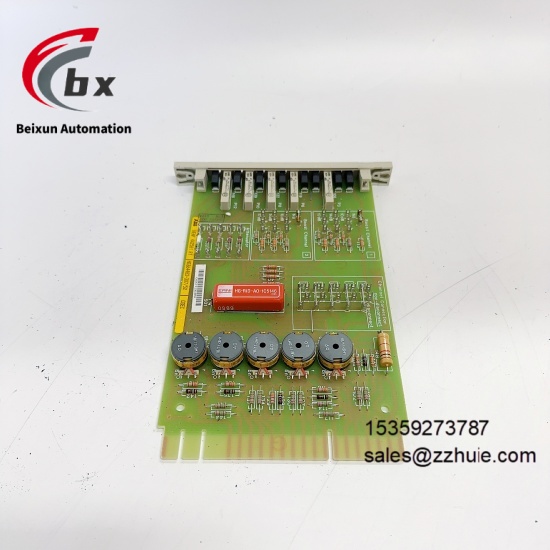

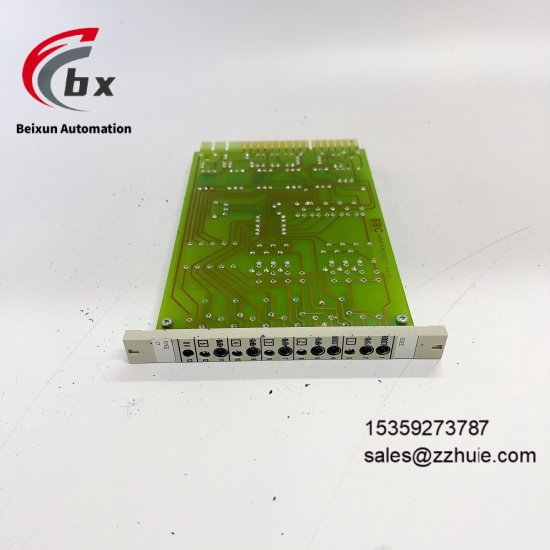

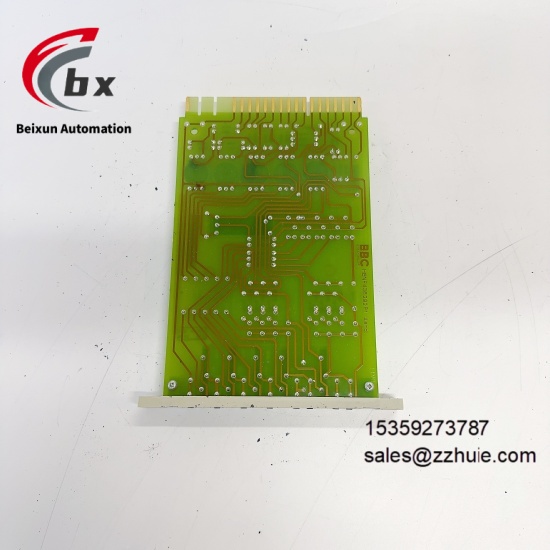

ABB O3EC HENF442581R1 High performance PLC control module

ABB O3EC HENF442581R1 High performance PLC control module

SPECIFIC PARAMETERS​

Brand ABB​

Product Series Advant Series DCS Control Module​

Product Type High-performance PLC Control Module​

Order Number HENF442581R1​

Working Voltage 24VDC​

Output Voltage 24VDC​

Maximum Output Current 2A​

Communication Protocols Modbus Profibus​

Working Temperature -20℃ to 60℃​

Storage Temperature -40℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing​

Protection Level IP20 (In-cabinet Installation)​

Supported I/O Modules Quantity Up to 32​

Control Standard Complies with IEC61131-3 Programming Standard​

Interface Type USB Port Ethernet IP Port​

Size 100mm×45mm×180mm (Standard 3U Module Size)​

Weight 0.6kg​

Power Consumption Typical 15W Maximum 20W​

Certification Qualification CE UL CSA​

Compatible System ABB Advant DCS System Industrial Automation Platforms​

Data Processing Function Support Real-time Data Acquisition Historical Data Storage​

Programming Function Built-in PLC Function Support Control Logic Customization​

PRODUCT PERFORMANCE​

Built-in PLC function complies with IEC61131-3 standard, supporting control logic programming and customization to adapt to different industrial control scenario requirements​

Supports Modbus and Profibus protocols, enabling seamless communication with sensors, actuators and upper computers to ensure system compatibility​

Compatible with up to 32 I/O modules for expansion, meeting the signal processing and control needs of large-scale industrial control scenarios​

24VDC stable power supply design with maximum output current of 2A, which can directly drive small executive components and simplify the system architecture​

Industrial-grade wide-temperature adaptation capability, can operate continuously and stably in the temperature range of -20℃ to 60℃, adapting to complex industrial environments​

Uses high-quality materials and advanced manufacturing processes, combined with optimized heat dissipation design, ensuring long-term reliability under high-load operation​

High-speed data processing technology ensures fast response of control commands, meeting the timeliness requirements of real-time control scenarios​

Supports real-time data acquisition and status monitoring, and can realize data visualization and historical data tracing with IO Studio software​

Modular 3U standard size design, easy to install, can be flexibly combined with Advant series modules to shorten the integration cycle​

Equipped with complete fault self-diagnostic function, real-time monitoring module operation status and communication links to achieve rapid fault location​
