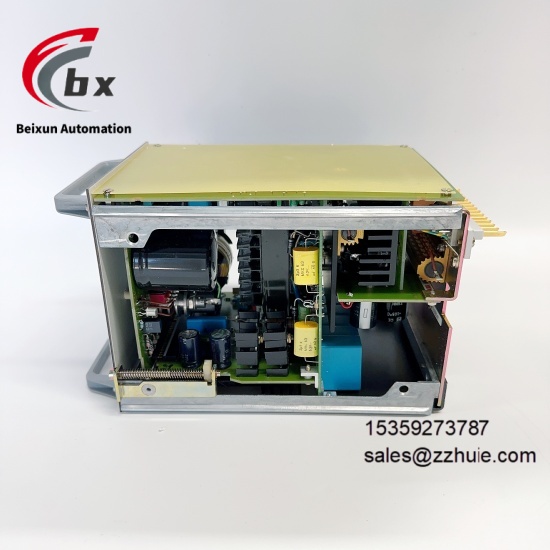

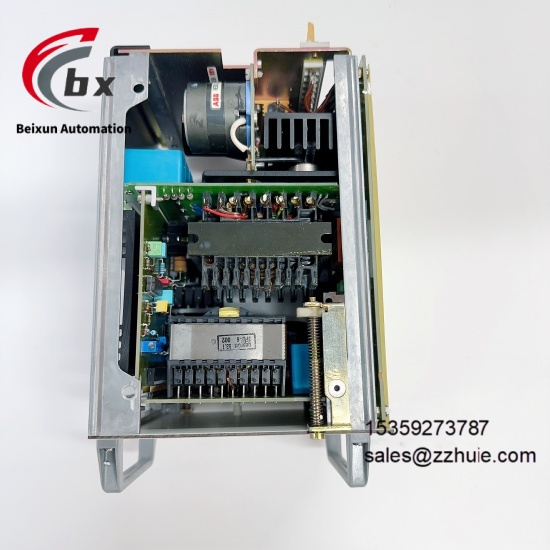

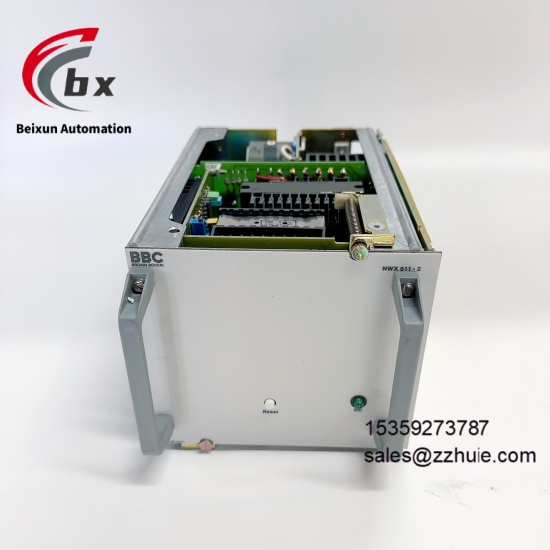

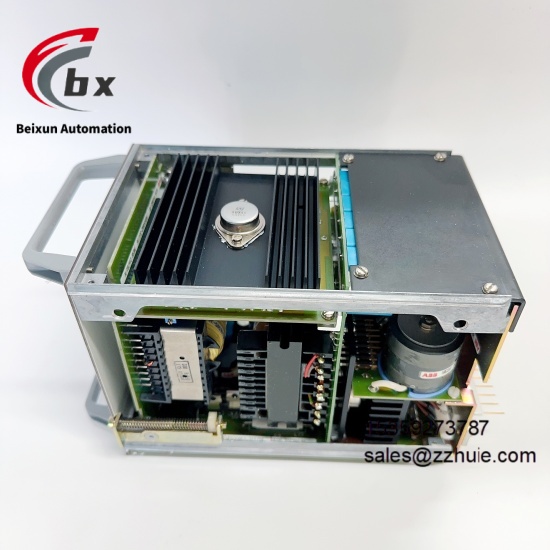

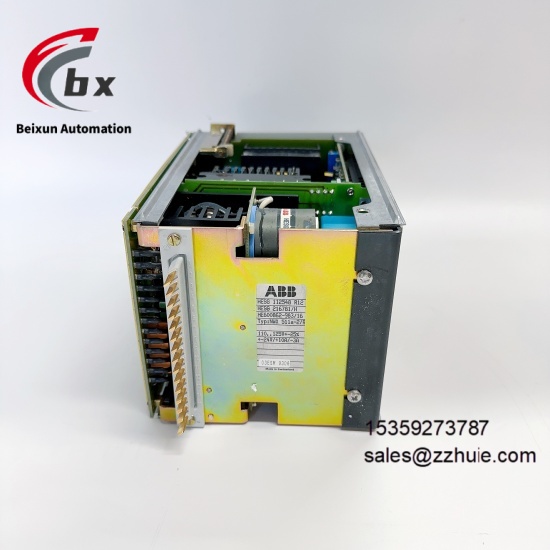

ABB NWX511a-2R HESG112548R12 Dual channel redundant control module

ABB NWX511a-2R HESG112548R12 Dual channel redundant control module

SPECIFIC PARAMETERS​

Brand ABB​

Product Series Industrial Redundant Control Module Series​

Product Type Dual-channel Redundant Control Module​

Order Number HESG112548R12​

Working Voltage 220-380VAC​

Power 230W​

Control Mode Torque Control​

Channel Configuration 2 Independent Control Channels​

Speed Regulation Ratio 2:500​

Working Temperature -10℃ to 50℃​

Storage Temperature -40℃ to 70℃​

Relative Humidity 10% to 90% Non-condensing​

Protection Level IP65​

Size 224mm×170mm×45mm​

Weight 1.2kg​

CPU 1.4GHz Dual-core Processor​

Storage 512MB RAM 2GB Flash Memory​

Interface Type 4 10/100/1000M Auto-negotiation Ethernet Ports 1 USB 3.0 Port 1 Fiber Optic Port​

Installation Method Direct On-machine Installation​

Certification Qualification CE UL CSA Industrial Control Equipment Certification​

Compatible System ABB DCS System SCADA System Industrial Automation Platforms​

Redundancy Type Dual-channel Redundancy Support Seamless Switching​

Input Signal Analog Signals (Temperature Pressure Flow)​

PRODUCT PERFORMANCE​

Adopt dual-channel redundancy design, seamless switching when fault occurs, ensuring continuous operation of industrial control systems without interruption​

1.4GHz dual-core processor with 512MB RAM, quickly processing complex control logic and large-scale collected data​

Speed regulation ratio up to 2:500 in torque control mode, realizing high-precision speed and load regulation to adapt to multi-working condition requirements​

Supports precise collection and conversion of analog signals, capable of connecting to multiple types of sensors such as temperature, pressure and flow​

IP65 high protection level, featuring excellent dustproof and waterproof performance, adapting to harsh industrial environments such as heavy industry workshops​

Industrial-grade wide-temperature adaptation capability, can operate stably in the temperature range of -10℃ to 50℃ and non-condensing humidity environment of 10%-90%​

Combination of 4 gigabit auto-negotiation Ethernet ports and fiber optic ports, realizing high-speed data transmission and long-distance communication​

Supports seamless integration with SCADA systems and robot control systems, improving the automation and collaboration efficiency of production processes​

Uses high-quality electronic components and strict manufacturing processes, with high reliability and long service life, reducing operation and maintenance costs​

Programmable design supports customized control logic, adapting to personalized control needs of different industrial scenarios​
