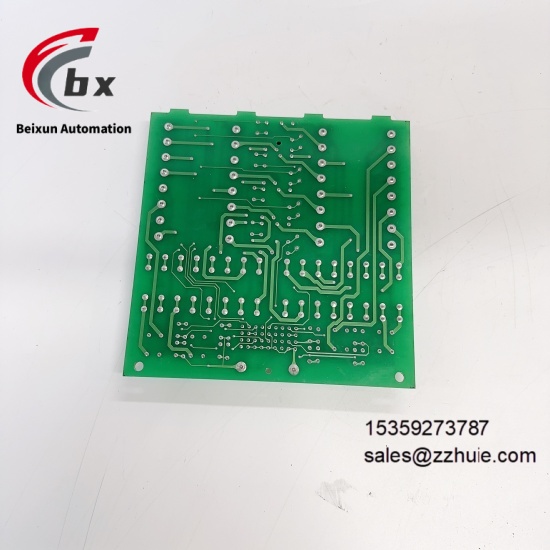

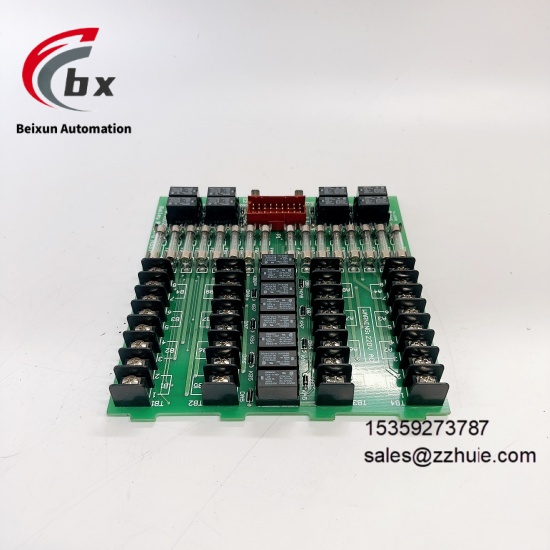

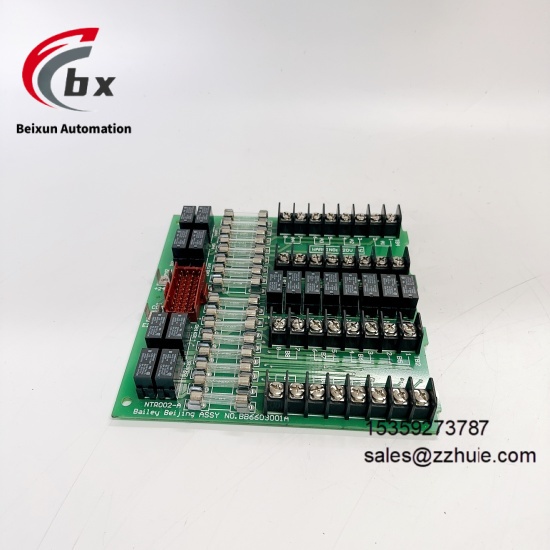

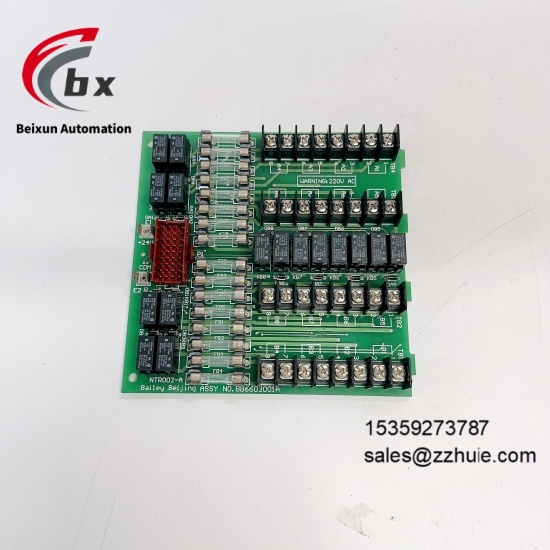

ABB NTR002-A Temperature sensor interface module

ABB NTR002-A Temperature sensor interface module

SPECIFIC PARAMETERS​

Brand ABB​

Product Series Industrial Temperature Sensor Interface Module Series​

Product Type High-precision Temperature Sensor Interface Module​

Country of Origin Switzerland​

Supported Sensor Types RTD Thermocouple​

Number of Channels 2 Independent Measurement Channels​

Measurement Range -200℃ to 1800℃​

Measurement Accuracy ±0.1℃​

Conversion Resolution 16-bit Analog-to-Digital Conversion​

Working Temperature -10℃ to 50℃​

Storage Temperature -40℃ to 70℃​

Relative Humidity 10% to 90% Non-condensing​

Protection Level IP20 (In-cabinet Installation)​

Size 100mm×50mm×30mm​

Weight 0.3kg​

Certification Qualification CE UL cULus​

Compatible System ABB Distributed Control System (DCS) Industrial Automation Platforms​

Connection Method Screw Terminal​

Wire Specification 0.2-2.5mm²​

Insulation Resistance >100MΩ​

Withstand Voltage Strength 500VAC/Minute​

Flame Retardant Rating UL94 V-0​

Installation Method DIN Rail Installation​

PRODUCT PERFORMANCE​

Adopt 16-bit high-precision analog-to-digital conversion technology with measurement accuracy up to ±0.1℃, ensuring the accuracy of measurement data in a wide temperature range​

Support 2-channel RTD/thermocouple sensor access, capable of collecting different types of temperature signals simultaneously to adapt to multi-monitoring point scenarios​

Covers an ultra-wide measurement range of -200℃ to 1800℃, meeting temperature monitoring needs of multiple scenarios such as low-temperature cold chain and high-temperature industrial furnace​

Industrial-grade environmental tolerance design, capable of stable operation in working temperature of -10℃ to 50℃ and non-condensing humidity environment of 10%-90%​

Screw terminal connection structure combined with UL94 V-0 flame-retardant shell ensures connection reliability and fire safety in vibration environments​

100MΩ insulation resistance and 500VAC withstand voltage strength, effectively blocking electromagnetic interference in industrial sites and ensuring signal transmission integrity​

Compatible with ABB distributed control system, can be directly integrated into existing control architecture without additional adaptation components​

Compact size design saves cabinet installation space, and DIN rail installation method simplifies deployment and maintenance processes​

Equipped with metal film resistor components, temperature coefficient as low as ±100ppm/℃, ensuring resistance stability during long-term operation​

Supports indirect diagnosis of sensor open-circuit and short-circuit faults, realizing rapid fault troubleshooting through signal abnormal feedback​
