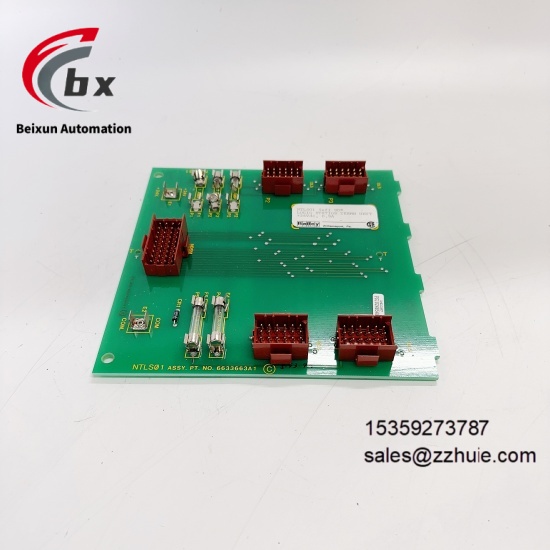

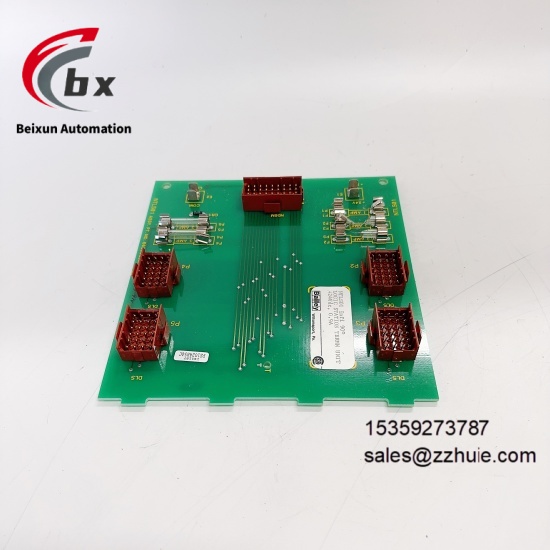

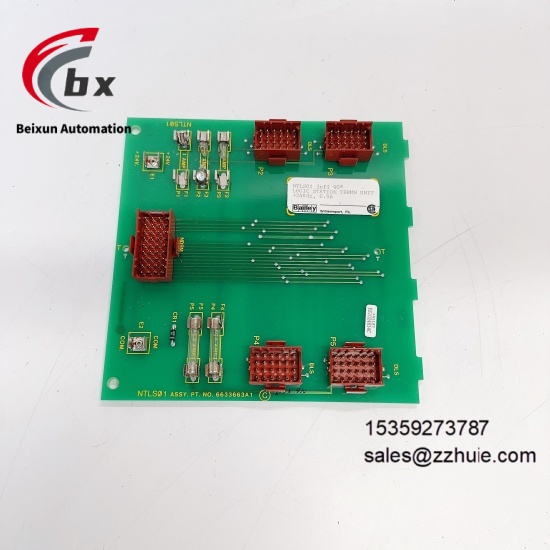

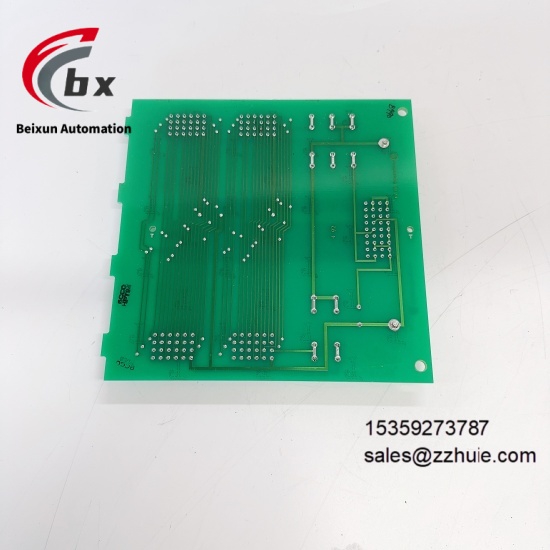

ABB NTLS01 Multi functional control module

ABB NTLS01 Multi functional control module

SPECIFIC PARAMETERS​

Brand ABB​

Product Series Industrial Automation Control Module Series​

Product Type Multi-functional Industrial Control Module​

Working Voltage 24VDC ±20%​

Working Temperature -40℃ to 85℃​

Storage Temperature -55℃ to 90℃​

Relative Humidity 5% to 95% Non-condensing​

Protection Level IP20 (In-cabinet Installation)​

Number of Input Channels 8 Channels​

Input Type Single-ended/Differential Signal Compatible with Analog/Digital Signal​

Output Type Relay Output​

Output Voltage 220VAC​

Output Frequency 100Hz​

Maximum Load Current 2A​

Communication Protocols Modbus RTU Profibus DP​

Communication Interfaces Ethernet Port Serial Port CAN Bus​

Processing Speed 550μs/Instruction​

Program Capacity 300 Steps​

Data Capacity 200 Words​

Size 100mm×60mm×40mm​

Weight 0.2kg​

Certification Qualification CE UL ROHS​

Isolation Feature Electrical Isolation Between Channels​

Diagnostic Function Support Channel Fault Signal Abnormality Communication Interruption Detection​

PRODUCT PERFORMANCE​

Adopt high-precision signal processing circuit to realize accurate conversion of analog/digital signals and ensure data acquisition accuracy​

Processing speed up to 550μs/instruction, which can quickly respond to signal changes in industrial sites and ensure real-time execution of control logic​

Supports 8 independent input channels and relay outputs to meet the needs of multi-parameter monitoring and multi-device control​

Electrical isolation design between channels effectively blocks electromagnetic interference in industrial sites and improves signal transmission stability​

Compatible with mainstream industrial protocols such as Modbus and Profibus, enabling seamless communication with sensors, actuators and controllers​

Industrial-grade wide-temperature adaptation capability, can operate continuously and stably in extreme temperature environments of -40℃ to 85℃​

Equipped with complete fault diagnosis function, real-time monitoring of channel status and communication links to achieve rapid fault location​

Modular compact design, easy to install, can be flexibly integrated into existing industrial control systems to shorten deployment cycle​

High anti-electromagnetic interference performance, compliant with industrial EMC standards, ensuring reliable operation in harsh environments​

Supports remote diagnosis and maintenance, reducing system operation and maintenance costs and improving equipment availability​
