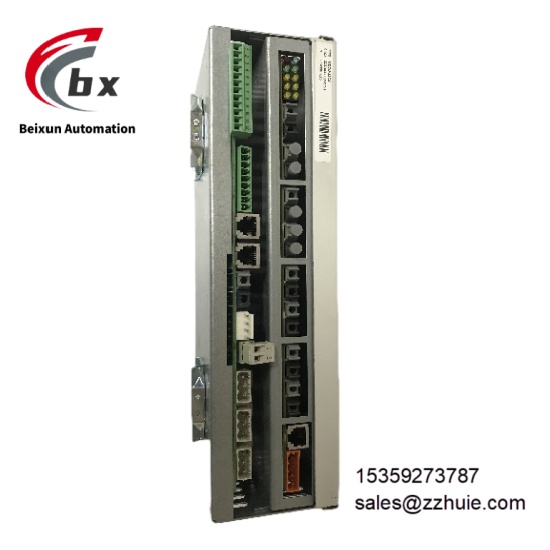

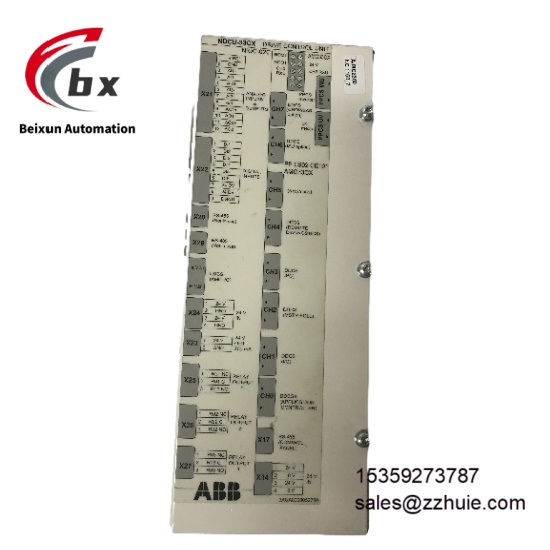

ABB NDCU-33CX 3AUA0000052751 Core control unit module
Specific Parameters
Electrical Parameters
Power Supply Voltage: 24V DC ±10%, typical power consumption 15W, maximum power consumption 20WCPU Specification: 32-bit RISC processor, 400MHz clock speedControl Modes: Supports vector control (sensorless/sensor-based), torque control, V/F controlSpeed Control Accuracy: ±0.01% rated speed (with sensor), ±0.1% rated speed (sensorless)Torque Control Accuracy: ±1% rated torque (static), ±3% rated torque (dynamic)Communication Interfaces: 2 Ethernet ports (supports Profinet IRT, EtherNet/IP), 1 RS-485 port (supports Modbus RTU), 1 CANopen portInput Signals: 8 digital inputs (24V DC), 4 analog inputs (0-10V DC/4-20mA)Output Signals: 4 digital outputs (relay contacts, 250V AC/30V DC, 5A), 2 analog outputs (0-10V DC/4-20mA)Feedback Adaptation: Supports incremental encoders (max. 1MHz), absolute encoders (PROFIBUS DP/V1), resolversDiagnostic Functions: Built-in detection for overcurrent, overvoltage, overload, motor stall, temperature abnormality; fault code storage ≥100 entries
Environmental Parameters
Operating Temperature: -25℃ to +70℃ (non-condensing environment)Storage Temperature: -40℃ to +85℃Relative Humidity: 5% to 95% (non-condensing, compliant with IEC 60068-2-3 standard)Protection Rating: IP20 (unit itself, must be installed in frequency converter control cabinet)Vibration Resistance: 10-500Hz frequency range, 0.5g acceleration (sine wave), 30 minutes of continuous testing per axisEMC Compliance: Complies with EN 61800-3 (industrial environment), EN 55022 Class A standards, common-mode interference immunity ≥120dB
Mechanical Parameters

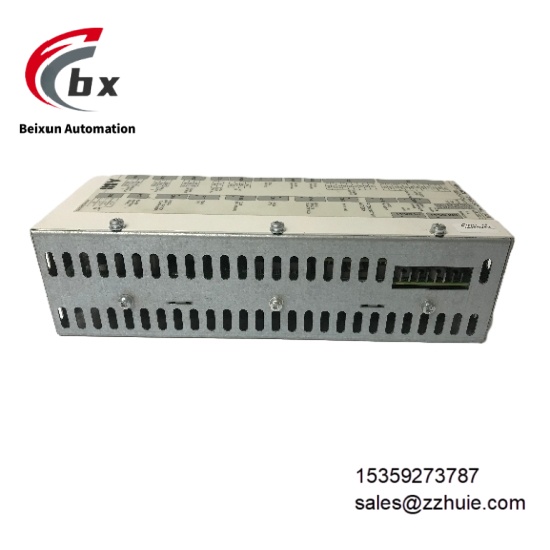

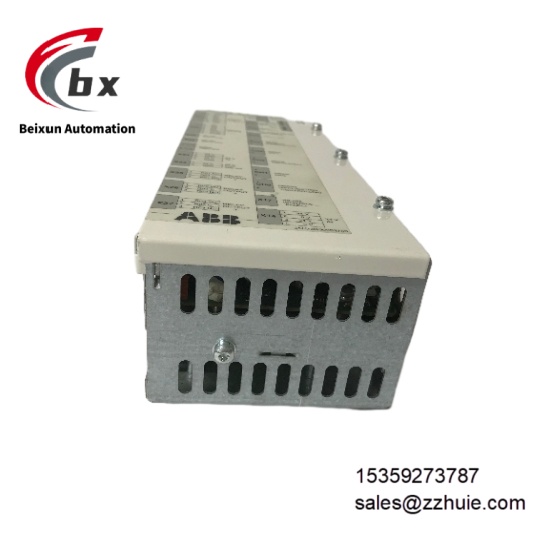

Overall Dimensions: 140mm (L) × 180mm (W) × 50mm (H)Housing Material: Flame-retardant engineering plastic (UL94 V-0 grade), anti-static coating on surface, with RFI shielding functionWeight: Approximately 0.8kgMounting Method: Integrated mounting with frequency converter power modules (adapts to ACS880 series standard mounting slots)Wiring Method: Plug-in terminal blocks (power, signal), supporting wire diameter 0.5-2.5mm², terminals with anti-misplug latchesStatus Indication: 1 system operation LED (green), 1 fault alarm LED (red), 1 communication status LED (yellow)
Product Performance
Excellent control accuracy: Speed accuracy reaches ±0.01% in sensor-based vector control mode, enabling stable low-speed and high-torque output of motors, adapting to scenarios with strict speed control requirements such as rolling mills and hoists.
Fast dynamic response: Torque step response time ≤10ms, speed step response time ≤50ms, which can quickly respond to load fluctuations and avoid motor speed overshoot or instability.
Wide communication compatibility: Supports industrial Ethernet protocols such as Profinet IRT and EtherNet/IP, as well as serial protocols such as Modbus RTU and CANopen, which can be seamlessly connected to PLC and DCS systems to realize remote monitoring and parameter debugging of frequency converters.
High operational reliability: Redundant power supply design and comprehensive fault diagnosis function can real-time monitor the status of power modules, motors and communication links, with fault switching time ＜100ms, ensuring continuous system operation.
Excellent maintenance convenience: Supports hot-swap function, allowing control unit replacement without shutting down the frequency converter; fault records can be read online and parameters calibrated via ABB DriveComposer software, reducing maintenance time.
