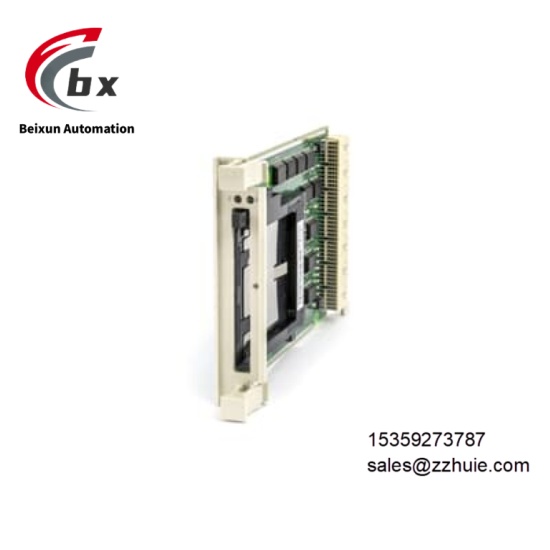

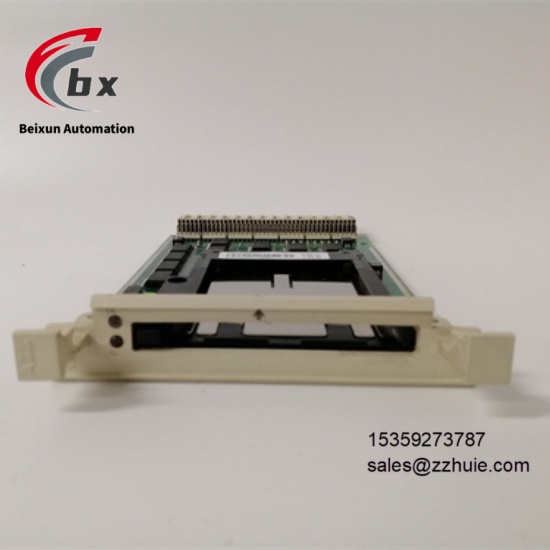

ABB MB510 3BSE002540R1 Digital expansion module

Specific Parameters

Brand ABB (Switzerland)

Product Series ABB Industrial Automation Expansion Module Series

Product Type Industrial-Grade Digital Expansion Module, Industrial Control Spare Part Module

Model ABBMB510 3BSE002540R1

Country of Origin Switzerland

Compatible Devices ABB Advanced DCS Distributed Control System, Advant Controller, Relion Series Control and Protection Devices, Industrial Sensors, Actuators

I/O Points 24 Points

Digital Input 16 Channels

Digital Output 16 Channels

Input Type Single-Ended and Differential

Output Type Relay

Operating Power Supply 24VDC (Input Voltage Range 24VDC±20%)

Input Current Maximum 5mA

Output Voltage 0~10VDC

Processing Speed 550μs

Program Capacity 300

Data Capacity 200

Output Frequency 100Hz

Communication Protocols Modbus RTU, Profibus DP Industrial Communication Protocols

Communication Interfaces RS-485 Interface, Ethernet Interface

Communication Rate Up to 19.2kbps (Modbus RTU)

Protection Type Electromagnetic Interference Protection, Overvoltage Protection, Overcurrent Protection

Operating Temperature Range -25℃ to 70℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Level IP20

Physical Dimensions Standard DIN Rail Mounting Dimensions (Width 18cm, Height 18cm, Depth 10cm)

Physical Weight Approximately 0.8kg

Mounting Method Standard DIN Rail Mounting

Special Functions Digital Signal Conversion, Channel Expansion, Fault Diagnosis, Remote Maintenance, Software Upgradable

Product Material Industrial-Grade Flame-Retardant Material

Customizable No

Certification Standards CE, EMC

Warranty Period 12 Months

Product Performance

Compatible with various ABB control systems and control protection devices, powered by 24VDC wide voltage, it can stably realize digital signal expansion and conversion. The MB510 3BSE002540R1 module has convenient spare part replacement to ensure the continuity of system channel expansion.

Equipped with 16 digital input channels and 16 digital output channels, the processing speed reaches 550μs, and the input and output types are suitable for various industrial scenarios, which can accurately receive sensor signals and drive actuators to operate.

Supports a variety of mainstream industrial communication protocols and interfaces, can be seamlessly integrated with various ABB control systems, realizes efficient data interaction, has strong anti-electromagnetic interference ability, and runs stably and reliably.

Reinforced packaging with industrial-grade flame-retardant material, protection level IP20, strong adaptability to wide temperature environment, can operate stably for a long time in harsh industrial environments, with complete fault diagnosis function and convenient and efficient maintenance.

The modular design is flexible and expandable, can be configured and expanded according to actual needs, in line with ABB industrial automation module design standards, with high reliability and long service life.
