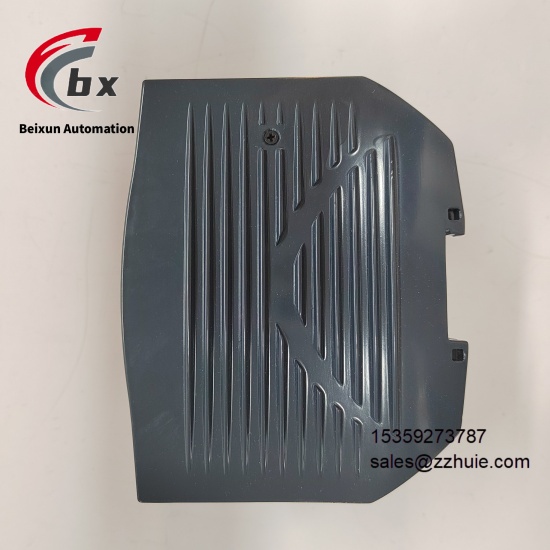

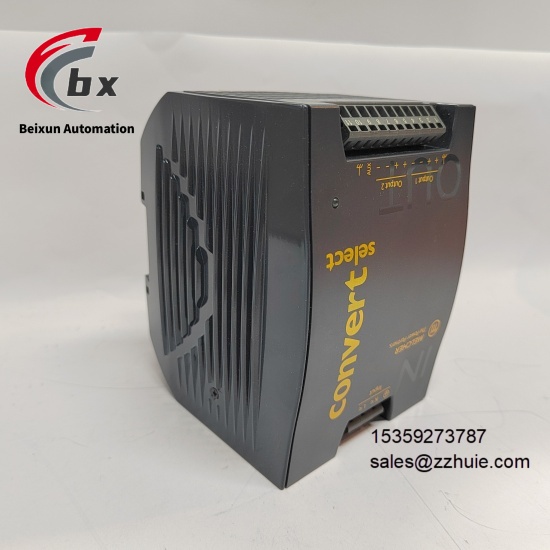

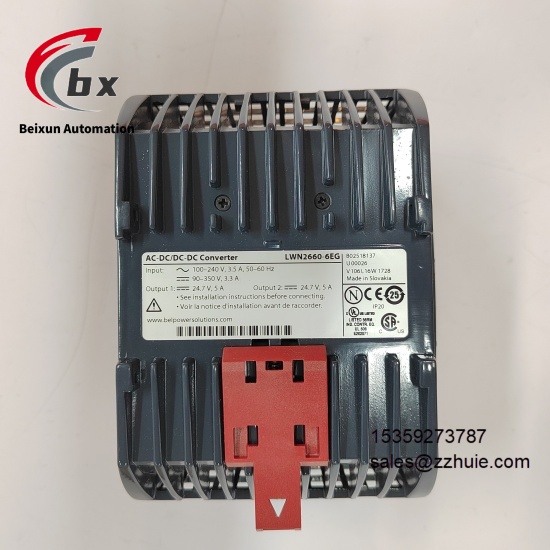

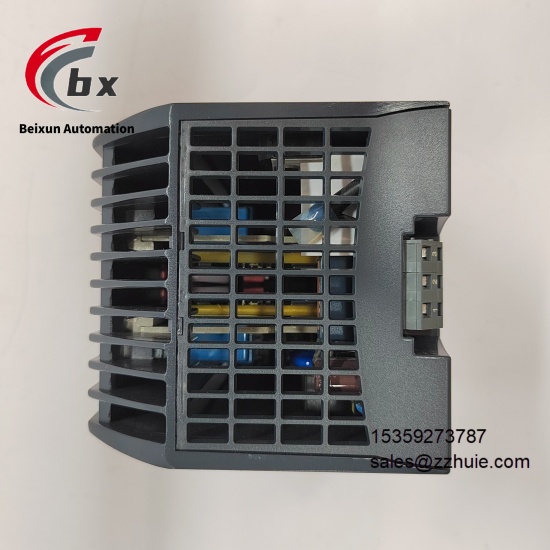

ABB LWN2660-6EG 3BHL000986P7002 AC/DC power module
Specific Parameters
Electrical Parameters
Input Voltage Range 85-264V AC (47-63Hz) or 90-350V DC, supporting stable operation over wide voltage rangeOutput Configuration Dual independent isolated outputs, each 24.7V DC, maximum 5A per channel (10A total)Output Power 247W (24.7V×10A), meeting industrial load requirementsVoltage Adjustment Range 24V to 25.8V DC (independently adjustable per channel), adapting to different equipment voltage needsConversion Efficiency 87-88%, energy-efficient design reducing system energy consumptionIsolation Characteristics Input-output isolation voltage 2.8kV DC, enhancing system safetyProtection Features Overload protection (constant current limiting), short circuit protection (auto-recovery), overvoltage protection, ensuring system stabilityEMC Compliance Meets EN 55032, EN 62368-1 standards, low electromagnetic interference and high anti-interference capabilityCertification Standards Passed CE, UL, cUL, RoHS certification, meeting international safety standards
Mechanical Parameters
Overall Dimensions 113.6mm×103mm×138mm (length×width×height), compact design saving spaceWeight Approximately 0.65kg, lightweight design facilitating installationMounting Method Standard 35mm DIN rail mounting, supporting quick deploymentConnection Method Spring-loaded quick-connect terminals, supporting 26-14AWG wires, tool-free connectionProtection Rating IP20, dust-proof design, suitable for indoor industrial environmentStatus Indication Power (green), fault (red), load (yellow) LED indicators, clear working status monitoring
Environmental Parameters
Operating Temperature -40°C to +60°C, stable operation throughout temperature range without deratingStorage Temperature -40°C to +85°C, adapting to extreme transportation and storage conditionsRelative Humidity 5%-95% (non-condensing), adapting to humid industrial environmentsVibration Resistance Complies with IEC 60068-2-6 standard, 2g acceleration at 5-500Hz frequency rangeShock Resistance Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration)
Product Performance
Excellent output stability with dual independent isolated design, each channel precisely adjustable between 24-25.8V, ensuring stable power supply for load equipmentHigh conversion efficiency up to 88%, reducing energy loss and meeting green industry standardsFast response speed, quickly adapting to load changes with minimal voltage fluctuationExcellent electrical isolation (2.8kV DC), effectively preventing electrical interference between systems and improving reliabilityMultiple protection mechanisms ensuring rapid response to overload, short circuit, overvoltage and other 异常 conditions, protecting equipment safetyCompact design saving more than 70% installation space, standard DIN rail mounting simplifying deploymentSpring-loaded terminal design reducing wiring time by 60%, convenient maintenanceIndustrial-grade component selection with mean time between failures (MTBF) ≥600,000 hours, long service life
