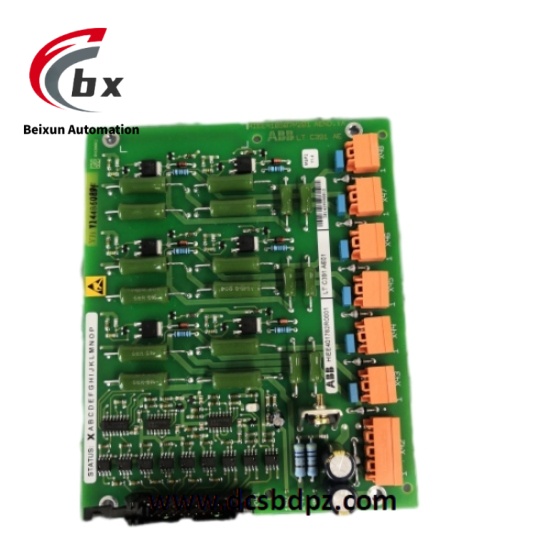

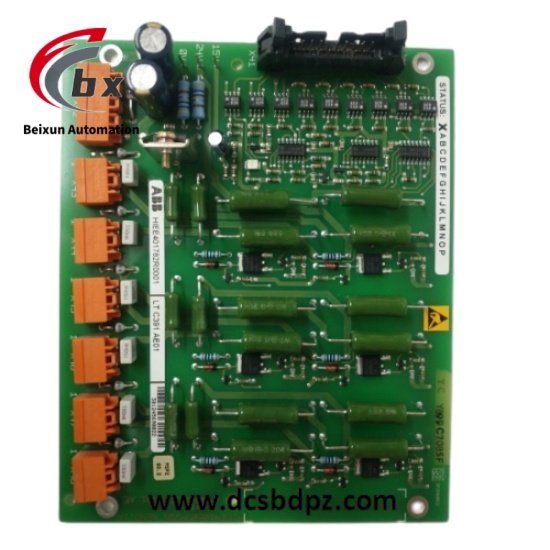

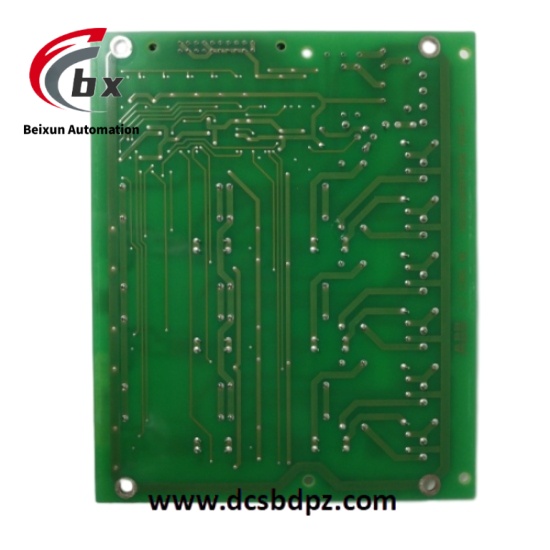

ABB LTC391AE01 HIEE401782R0001 Tension control module
ABB LTC391AE01 HIEE401782R0001 is an industrial-grade intelligent tension control module designed for closed-loop tension control of coil processing equipment. The module integrates tension detection, signal processing and drive control functions, which can collect coil tension signals in real time, calculate adjustment values, and realize precise tension control by controlling magnetic powder brakes or servo drives. It is suitable for production scenarios requiring stable coil tension such as printing, packaging and papermaking.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB LTC391AE01 HIEE401782R0001 Tension control module
Specific Parameters
- Power supply voltage: 24V DC±10%
- Tension detection range: 0-5000N (supports strain gauge tension sensors)
- Control output signals: 0-10V DC analog output, 4-20mA current output
- Response time: ≤5ms
- Control accuracy: ±0.5% full scale
- Communication interfaces: RS485 (Modbus RTU), Ethernet (Modbus TCP)
- Operating temperature range: -10°C to +60°C
- Storage temperature range: -40°C to +85°C
- Protection class: IP20
- Dimensions: 140mm×100mm×60mm
- Weight: 0.5kg
- Input signal types: mV-level strain signals (tension sensors), 0-10V external setting signals
- Output load capacity: Maximum load 500Ω for analog output
- Certification standards: CE, UL
Product Performance
- High-precision tension control: With control accuracy of ±0.5% full scale, it can maintain stable tension in the coil speed range of 0-600m/min, solving the problem of thin material stretching or thick material relaxation.
- Fast dynamic response: Response time ≤5ms, which can instantly compensate for tension fluctuations caused by coil joints and speed mutations, ensuring continuous and stable production process.
- Flexible signal adaptation: Supports mV-level strain signal input and 0-10V setting signal, which can be directly connected to various tension sensors without additional signal conditioning modules.
- Wide speed range adaptation: Compatible with coil speed range of 0-600m/min, and can maintain stable tension control performance whether in low-speed precision processing or high-speed mass production.
- Convenient system integration: Communicates seamlessly with PLC and HMI through Modbus protocol, supports remote setting of tension parameters and status monitoring, simplifying automation integration of production lines.
