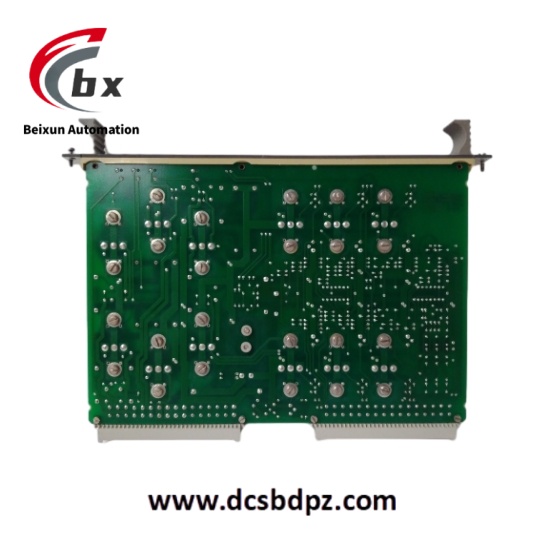

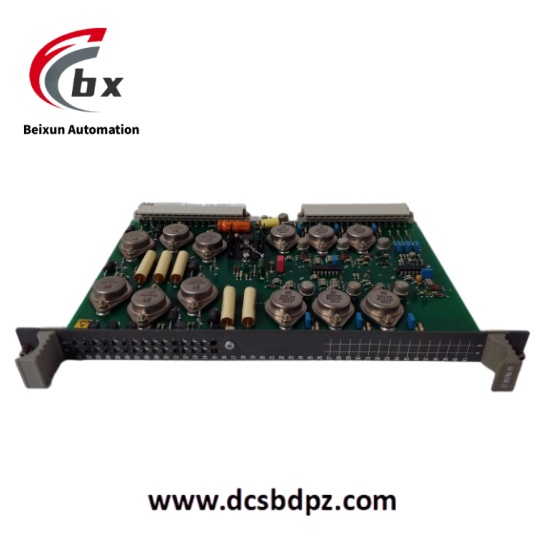

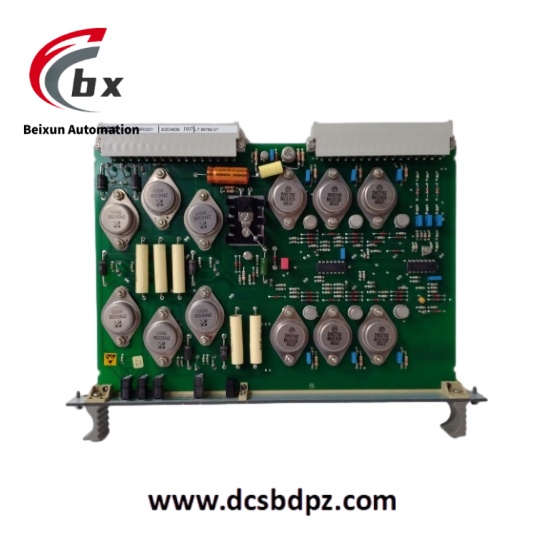

ABB LT8978b V1 HIEE320639R0001 Digital expansion module
ABB LT8978b V1 HIEE320639R0001 is a digital expansion module designed specifically for industrial automation applications. It belongs to the HIEE 3206 series and supports the PROFIBUS DP V1 protocol. It is mainly used to connect the PROFIBUS DP fieldbus to controllers or other devices, and can perform functions such as signal acquisition, logic control, and fault diagnosis.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB LT8978b V1 HIEE320639R0001 Digital expansion module
Specific Parameters
- Interface type: PROFIBUS DP
- Transmission rate: 9600 bps, 18.2 kbps, 48.75 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, 12 Mbps
- Node address: 0 to 255
- Bus length: Up to 1200 meters
- Power supply voltage: 24 VDC
- Power consumption: Typical value 2.5 W, maximum value 3.5 W
- Operating temperature: -20 to 70°C
- Storage temperature: -40 to 85°C
- Enclosure protection class: IP20
- Dimensions: 120 mm x 60 mm x 23 mm
- Weight: Approximately 150 grams
- Connection method: Screw terminal
- Indicators: Power indicator, bus activity indicator, error indicator
Product Performance
- High – speed and stable communication: Supports a maximum transmission rate of 12 Mbps, ensuring fast and accurate data transmission. It meets the stringent real – time requirements of industrial sites, with data transmission delays controlled within milliseconds.
- Flexible node configuration: It can automatically configure node addresses ranging from 0 to 255, which is convenient for deployment in complex network topologies, reducing manual configuration workload and improving system setup efficiency.
- Reliable fault diagnosis: Equipped with a fault diagnosis function, it provides real – time feedback on power supply, bus activity status, and error information through indicators, facilitating quick problem location and resolution, ensuring stable system operation and reducing maintenance costs.
- Wide – temperature operation adaptation: It can operate stably in the working temperature range of -20 to 70°C, adapting to temperature changes in different industrial environments. It can work properly in both high – temperature steel smelting workshops and low – temperature cold storage logistics scenarios.
- Convenient installation and use: Adopts a screw – terminal connection method and a compact 120 mm x 60 mm x 23 mm size design, making it easy to install in various control cabinets. The operation is simple and user – friendly for on – site engineers.
