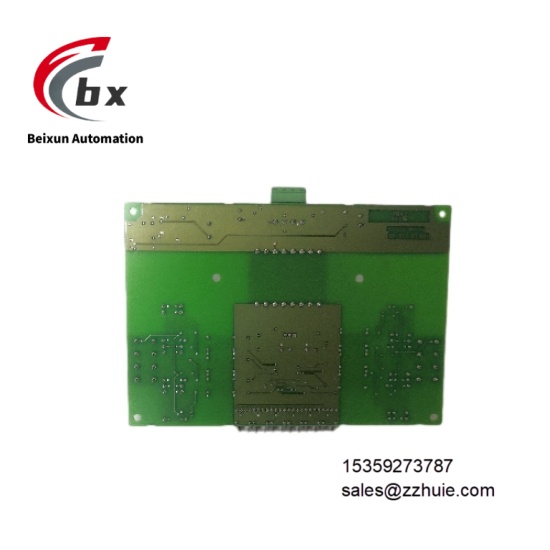

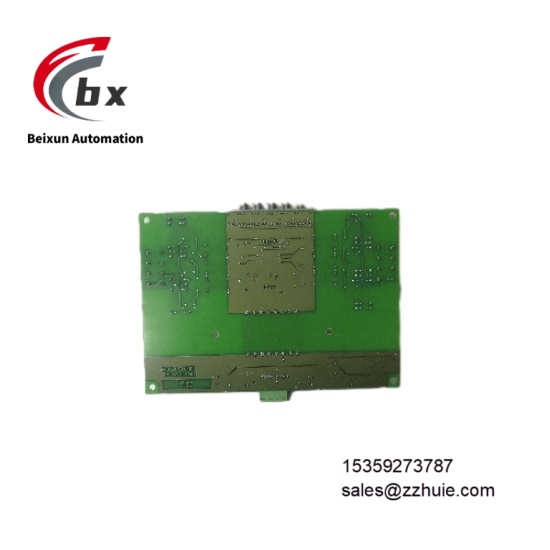

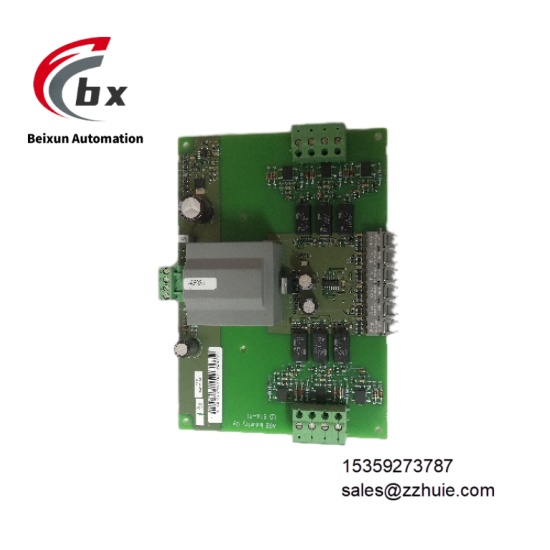

ABB LDSTA-01 Equipment status monitoring and diagnostic module

ABB LDSTA-01 Equipment status monitoring and diagnostic module

Specific Parameters​

Electrical Parameters​

Operating Voltage: 24V DC±10%, compatible with industrial standard power supply systems​

Measured Parameters: Vibration (acceleration, velocity, displacement), temperature (-40℃~+150℃), three-phase current (0~500A)​

Vibration Measurement Accuracy: ±0.5% full scale (acceleration 0.1~1000m/s², velocity 0.1~100mm/s, displacement 0.1~1000μm)​

Temperature Measurement Accuracy: ±0.3℃ (-40℃~+100℃), ±0.5℃ (+100℃~+150℃)​

Communication Protocols: Modbus TCP/IP, OPC UA, EtherNet/IP, supporting real-time data transmission​

Data Sampling Rate: 1024Hz for vibration signals, 1Hz for temperature/current signals, meeting dynamic monitoring requirements​

Output Signals: 2 relay outputs (fault alarm, early warning), 1 channel 4-20mA analog output​

Power Consumption: ≤3W, low power consumption for dense installation​

Diagnostic Functions: Integrated self-diagnosis for power failure, sensor disconnection, communication interruption, fault information output by coding​

Certification Standards: Compliant with CE, UL 508, IEC 61010-1 industrial safety and EMC standards​

Mechanical Parameters​

Overall Dimensions: 90mm (W) × 120mm (H) × 60mm (D), compact modular design​

Weight: Approximately 0.3kg, lightweight for dense installation in control cabinets​

Mounting Method: 35mm DIN rail mounting (complying with DIN EN 50022 standard), supporting horizontal/vertical installation​

Housing Material: Flame-retardant reinforced engineering plastic (UL94 V-0 grade), impact-resistant and oil-resistant​

Sensor Interfaces: 4 M12 connectors (vibration sensor ×2, temperature sensor ×1, current transformer ×1)​

Protection Rating: IP20 (module itself), sensor interface protection rating IP67 (depending on supporting sensors)​

Status Indication: 4 LED indicators (power, operation, communication, fault), providing intuitive feedback of working status​

Environmental Parameters​

Operating Temperature: -20℃ to +65℃, operation without derating​

Storage Temperature: -40℃ to +85℃, meeting extreme storage and transportation requirements​

Relative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenarios​

Vibration Resistance: 10-500Hz frequency range, 1.5g acceleration (sine wave), no structural loosening or measurement drift​

EMC Compliance: Meets EN 55014-1 (emission limits), EN 55014-2 (immunity), EN 61326-1 (industrial environment) standards​

Installation Altitude: ≤2000m (derating required when exceeding; power derating 10% for every 1000m increase from 2000m to 5000m)​

Product Performance​

High monitoring accuracy: Measurement errors of vibration and temperature parameters are controlled within the requirements of industrial-grade predictive maintenance, with fault identification accuracy ≥95%​

Strong analysis capability: Built-in FFT spectrum analysis and time-domain feature extraction algorithms, enabling real-time identification of common equipment fault types​

Wide communication compatibility: Multi-protocol support enables seamless integration with DCS, SCADA, and IoT platforms, with data transmission delay ≤100ms​

Excellent environmental adaptability: Wide operating temperature range and anti-vibration design, adapting to harsh working conditions in workshops, mines, chemical plants and other scenarios​

Good operation and maintenance convenience: Supports remote parameter configuration and firmware upgrade, fault self-diagnosis function shortens troubleshooting time to ≤15 minutes​

Reliable stability: Industrial-grade components and low-power design, Mean Time Between Failures (MTBF) ≥300,000 hours​

Flexible expandability: 1 reserved sensor expansion interface, allowing addition of monitoring parameters such as pressure and flow according to needs​
