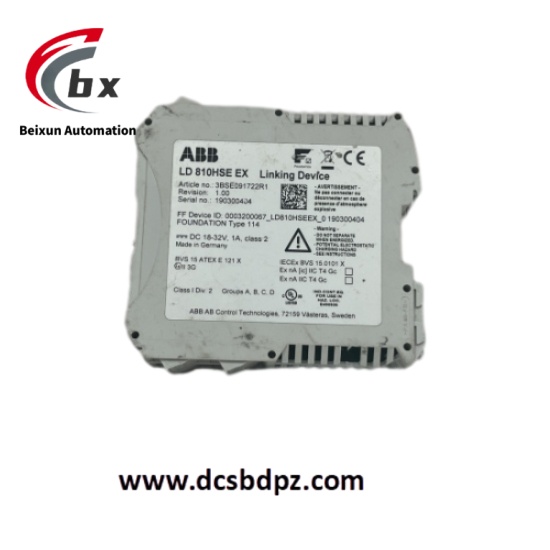

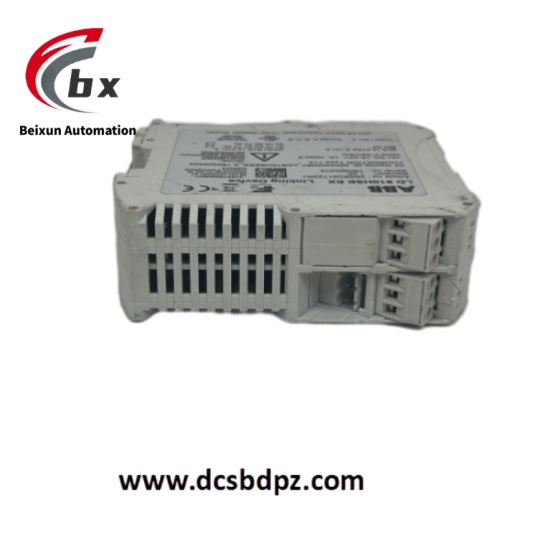

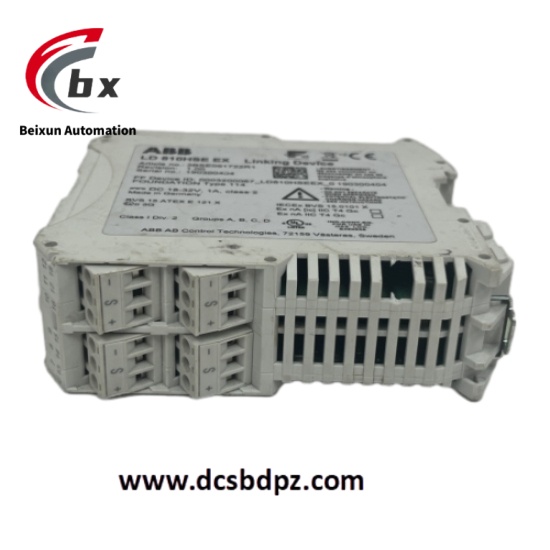

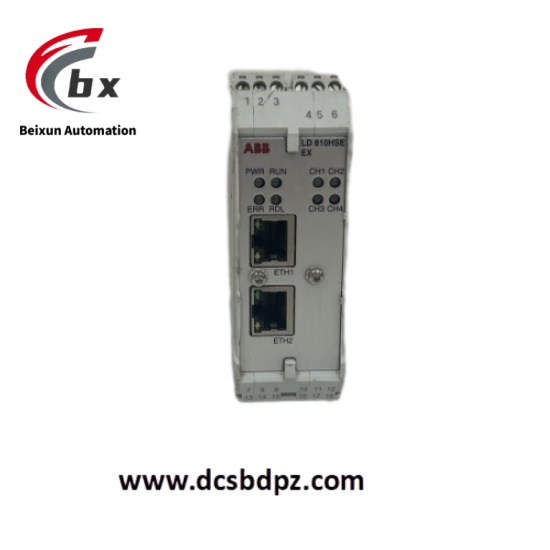

ABB LD810HSEEX 3BSE091722R1 Fieldbus connection module

The ABB LD810HSEEX 3BSE091722R1 is an industrial automation FOUNDATION Fieldbus linking device. Serving as a gateway between H1 links and HSE subnets, it supports connecting four H1 links to a single HSE subnet, enabling efficient communication between field devices and control systems. Compliant with FF HSE profile 42c, the device allows configuration and monitoring of H1 devices via HSE network and system management, supporting bidirectional transmission of process data between H1 links and HSE subnets. Designed with ATEX and IECEx explosion-proof certifications, it is suitable for use in hazardous area Zone 2/2 Divisions, ensuring stable operation in flammable and explosive environments.

Tag：ABB LD810HSEEX 3BSE091722R1

ABB LD810HSEEX 3BSE091722R1 Fieldbus connection module

Specific Parameters

Power Supply: 24V DC (±20%)
Current Consumption: Typical 200mA
Communication Interfaces: 4 H1 links, 1 HSE Ethernet (10/100Mbps)
Protection Level: IP20 (front panel)
Operating Temperature: -25°C to 60°C
Storage Temperature: -40°C to 85°C
Dimensions: 47×131×111mm (length×height×width)
Certifications: ATEX II 3G Ex nA IIC T4 Gc; IECEx Ex nA IIC T4 Gc
Coating Standard: G3 coating (compliant with ANSI/ISA7104 and EN 60068-2-60)
Time Synchronization: Supports SNTP protocol

Product Performance

Explosion-Proof Safety: Certified by ATEX and IECEx for use in Zone 2 hazardous areas, effectively preventing explosion risks caused by sparks or high temperatures.
Efficient Communication: Enables seamless data interaction between H1 links and HSE subnets, ensuring real-time data transmission with latency below 10ms.
Flexible Configuration: IP address configuration via integrated web server and remote parameter adjustment for H1 devices, adapting to diverse industrial communication requirements.
Environmental Adaptability: Wide temperature range and G3 coating resist corrosion, dust, and vibration in industrial environments, ensuring long-term stability.
Redundancy Support: Supports dual-device redundancy configuration to enhance system reliability and continuity of critical process control.
