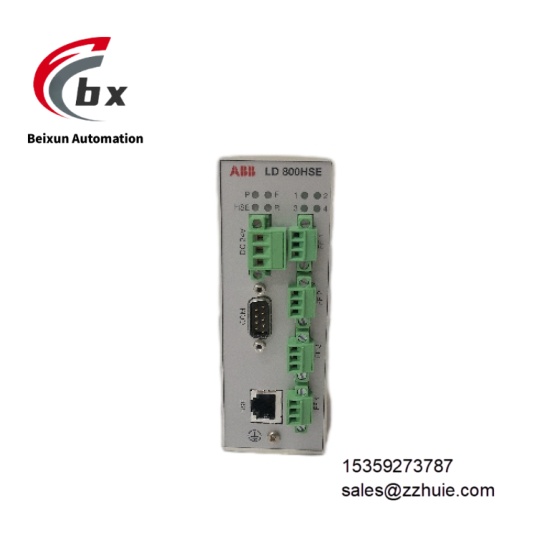

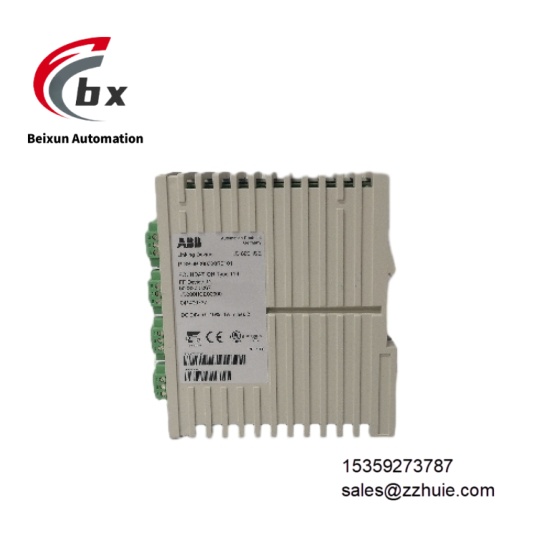

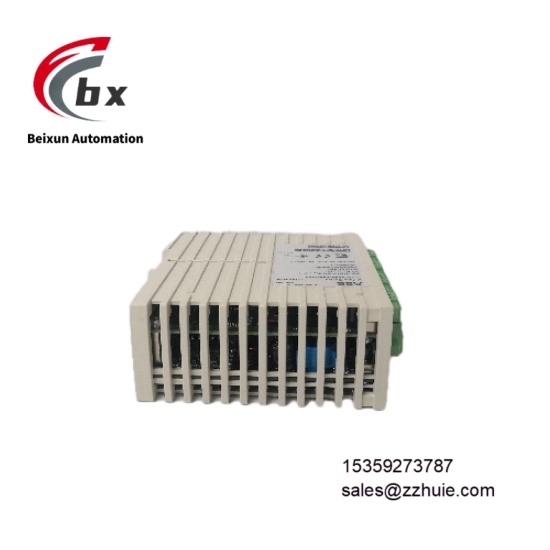

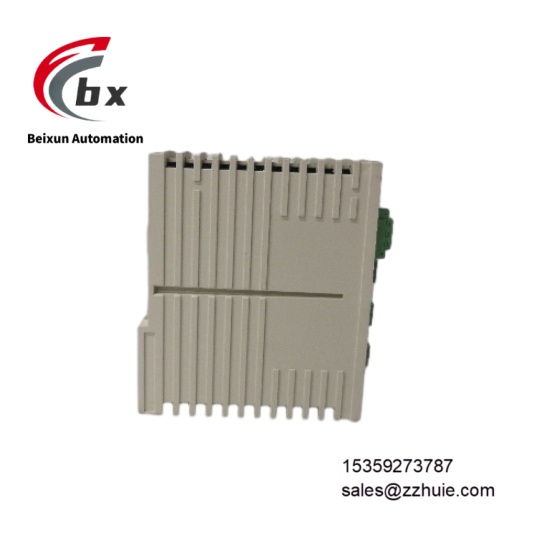

ABB LD800HSE 3BDH000320R0101 (FF) Linking devices

ABB LD800HSE 3BDH000320R0101 (FF) Linking devices

Specific Parameters​

Electrical Parameters​

Operating Voltage: 24V DC±20%, compatible with industrial standard power supply systems​

Input Current: 500mA, Output Current: 200mA​

Processor: 32-bit RISC processor with strong data processing capability​

Memory Configuration: 32MB flash memory + 64MB SDRAM, supporting program and data storage​

Communication Interfaces: 1 HSE interface, 4 H1 fieldbus interfaces, including RS-232/422/485 serial interfaces​

Transmission Rate: HSE interface 10/100Mbps (auto-sensing), H1 interface 31.25kbit/s​

System Bandwidth: 1.6Gbps, Buffer Capacity: 1Mbit, MAC Address Table Capacity: 2K​

Signal Processing: Supports 160 signals per second transmission between 4 H1 links and HSE network​

Diagnostic Functions: Integrated self-diagnosis for power failure, communication interruption and link abnormality, with real-time status feedback​

Certification Standard: Complies with HSE profile class 42C design specifications​

Mechanical Parameters​

Overall Dimensions: 47mm (W) × 131mm (H) × 111mm (D), compact modular design​

Weight: Approximately 0.4kg, lightweight for dense installation scenarios​

Mounting Method: 35mm DIN rail mounting (complying with DIN EN 50022 standard)​

Housing Material: High-strength flame-retardant engineering plastic with impact resistance​

Connection Method: H1 interface with 3-pole pluggable screw terminals, compatible with maximum 2.5mm² wires​

Status Indication: Integrated dual-color LED indicators for operation and fault, providing intuitive device status feedback​

Environmental Parameters​

Operating Temperature: -40℃ to +70℃, covering extreme industrial working conditions​

Storage Temperature: -40℃ to +85℃, meeting storage and transportation requirements​

Relative Humidity: 5% to 95% (non-condensing), suitable for humid scenarios​

Protection Rating: IP20, suitable for installation inside control cabinets​

EMC Compliance: Meets industrial-grade anti-interference standards, adapting to complex electromagnetic environments​

Vibration Resistance: Withstands 10-500Hz sine wave vibration without structural loosening or signal interruption​

Product Performance​

Outstanding communication efficiency: HSE and H1 interface rates match industrial real-time control needs with no data transmission delay​

Reliable redundancy capability: Supports dual-module redundant configuration and independent redundant links with no data loss during switching​

Strong expansion capability: Single module accesses 4 H1 links, supporting 4×16 client/server parallel connections​

High configuration flexibility: Transparently configures H1 device function blocks via host system, supporting cross-link data publishing​

Excellent maintenance convenience: Built-in diagnostic functions and status indicators, firmware upgradeable via download for quick fault troubleshooting​

Wide compatibility: Seamlessly integrates with 800xA system, compatible with third-party PLC and DCS equipment​

Strong operational stability: Wide temperature operating range and anti-interference design, Mean Time Between Failures (MTBF) ≥300,000 hours​
