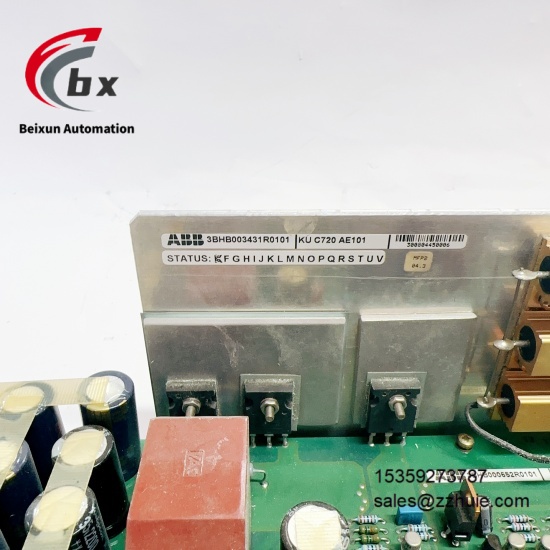

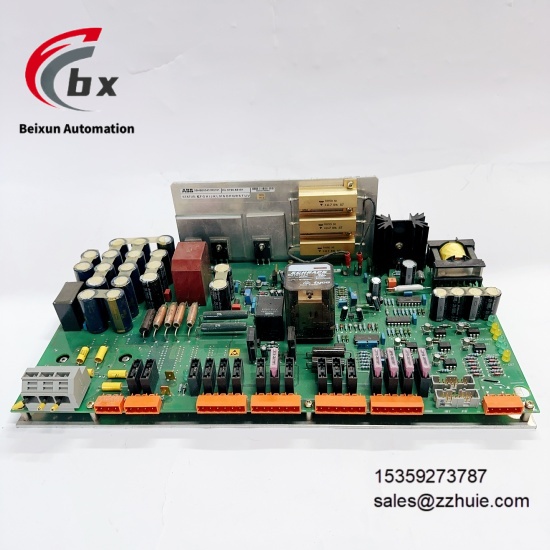

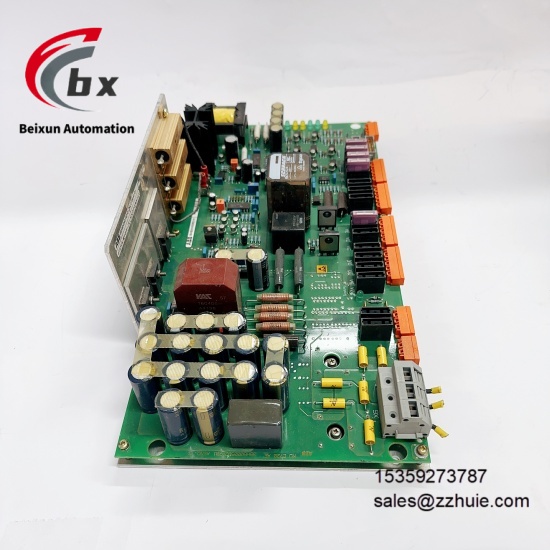

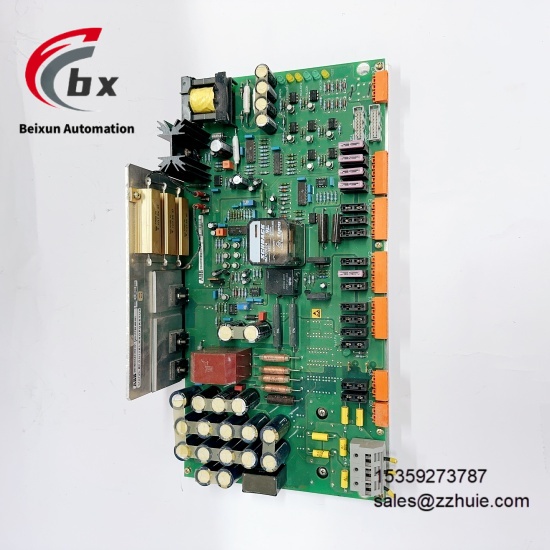

ABB KUC720AE01 3BHB003431R0101 3BHB000652R0101 PLC communication interface module

ABB KUC720AE01 3BHB003431R0101 3BHB000652R0101 PLC communication interface module

Specific Parameters​

Core and Function Parameters​

Product Type Industrial-grade PLC Communication Interface Module​

Manufacturer ABB​

Model KUC720AE01, Part Numbers 3BHB003431R0101, 3BHB000652R0101​

Series Advant OCS/AC 800M Series​

Communication Interfaces 2 Ethernet Ports (RJ45), 2 RS485/RS232 Serial Ports (switchable)​

Supported Protocols Ethernet/IP, PROFIBUS DP-V1, Modbus TCP/IP, Modbus RTU, OPC UA, IEC 61850​

Redundant Functions Communication Link Redundancy, Port Redundancy (dual Ethernet port backup)​

Compatible Systems ABB Advant Controller 400/800, AC 800M DCS System, Third-party PLCs (Modbus protocol compatible)​

Data Transmission Mode Full-duplex/Half-duplex (configurable)​

Diagnostic Functions Communication Link Fault Diagnosis, Port Status Diagnosis, Protocol Abnormality Diagnosis, Power Fault Diagnosis​

Protection Functions Port Over-voltage Protection (≤36V DC), ESD Protection (±15kV), Short-circuit Protection (self-recovery)​

Installation Method Controller Rack Slot Installation (3U Standard Rack)​

Certification Standards CE, UL, CSA, IEC 61131-3, RoHS, ATEX, IECEx​

Status Indication Power Normal (Green LED), Ethernet Communication (Yellow LED), Serial Communication (Yellow LED), Fault Alarm (Red LED)​

Electrical and Performance Parameters​

Power Supply Voltage 24V DC (19.2-28.8V DC wide-range compatible)​

Ethernet Transmission Rate 10/100/1000Mbps (auto-negotiation)​

Serial Port Transmission Rate 300bps-115.2kbps (adjustable)​

Maximum Communication Distance Ethernet: 100m (Cat5e/Cat6 Cable); RS485: 1200m (Shielded Twisted Pair)​

Isolation Level 3-way Isolation (Input-Output-Power), Isolation Voltage 1500V AC/1min​

Data Buffer 128KB Receive Buffer, 128KB Transmit Buffer​

Response Time ≤5ms (Protocol Data Processing Delay)​

Power Consumption Typical 4.5W, Maximum 6W​

Common Mode Rejection Ratio ≥90dB (50/60Hz)​

Physical and Environmental Parameters​

Overall Dimensions 105mm×215mm×85mm (L×W×H)​

Weight Approximately 0.9kg​

Operating Temperature Range -25°C to 70°C​

Storage Temperature Range -40°C to 85°C​

Relative Humidity 5%-95% (non-condensing, no dew)​

Protection Rating IP20 (per IEC 60529)​

Housing Material Flame-retardant ABS Plastic (UL94 V-0 Grade)​

Vibration Resistance 10-500Hz, 1.5G (30min per X/Y/Z axis)​

Shock Resistance 25G (11ms, 3 times per X/Y/Z axis)​

Product Performance​

Dual Ethernet + dual serial port design, supporting simultaneous operation of multiple protocols, adapting to complex industrial communication topologies with strong flexibility​

Ethernet rate up to 1000Mbps and adjustable serial port rate, meeting mixed communication needs of high-speed and low-speed devices​

Communication link and port redundancy design, enabling seamless switching in case of faults to ensure uninterrupted data transmission with extremely high reliability​

3-way electrical isolation combined with high common mode rejection ratio, effectively resisting industrial electromagnetic interference and electrostatic shock with strong communication stability​

128KB large-capacity data buffer reduces the risk of data loss, adapting to high-concurrency data transmission scenarios​

Compatible with mainstream industrial communication protocols and multi-brand devices, enabling seamless integration with existing automation systems with excellent compatibility​

Wide operating temperature range of -25°C to 70°C, adapting to extreme industrial environments with strong environmental adaptability​

Supports hot-swappable function, system maintenance and module replacement without shutdown, ensuring high operation and maintenance efficiency​
