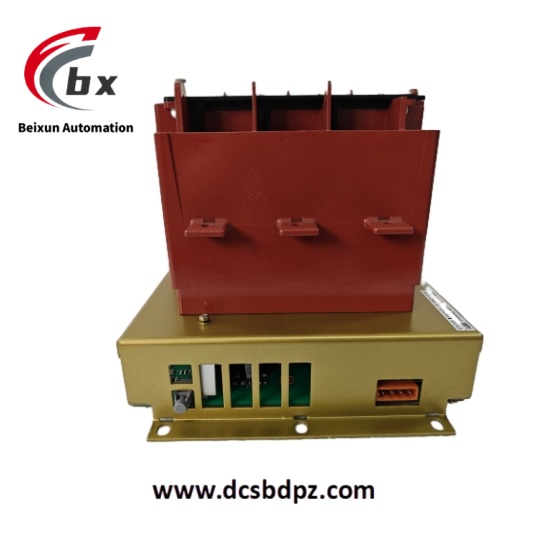

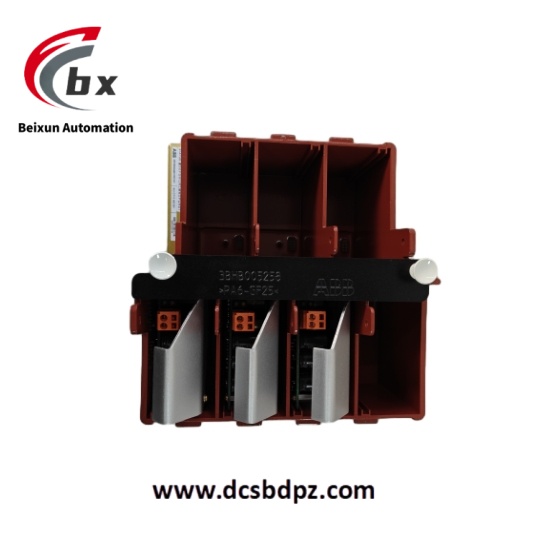

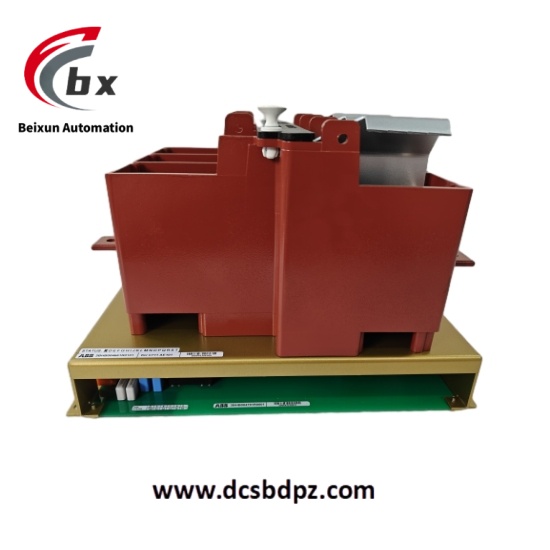

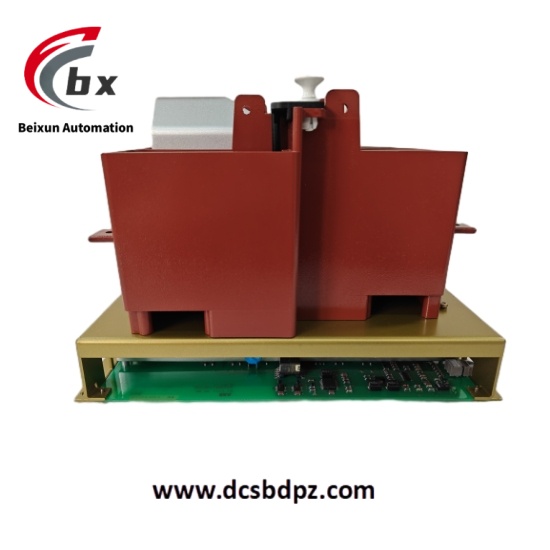

ABB KUC711AE101 3BHB004661R0101 Redundant controller main module
The ABB KUC711AE101 3BHB004661R0101 is a multi - functional module used in industrial automation control systems and is a key component of the ABB Symphony Plus distributed control system. This module is mainly responsible for high - speed communication between system components, ensuring the reliability and efficiency of data transmission. At the same time, it can also provide a stable 24VDC power supply for the gate units in the excitation system, ensuring the stable operation of related equipment in various industrial environments.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB KUC711AE101 3BHB004661R0101 Redundant controller main module
Specific Parameters
- Input Voltage: 85 – 264V AC
- Output Voltage: 24V DC
- Output Current: Up to 100A
- Communication Bandwidth: The bandwidth of each independent communication channel is 100Mbps
- Operating Temperature Range: From – 20°C to + 60°C
- Storage Temperature Range: From – 40°C to + 70°C
- Protection Level: IP20
- Dimensions: 100mm x 100mm x 50mm
- Weight: 1.5kg
- Protection Functions: Equipped with over – voltage, under – voltage, short – circuit, and thermal overload protection
- Status Indication: The operating status and fault conditions are displayed through LED lights
Product Performance
- High – Reliability Communication: Adopting a redundant design, equipped with dual Ethernet ports and supporting the Link Aggregation Control Protocol (LACP), it can still maintain the high availability and stability of the communication network in complex industrial electromagnetic environments and in the event of equipment failures, ensuring uninterrupted data transmission.
- Stable Power Output: It provides a precise and stable 24V DC power supply for the gate units, with minimal output voltage fluctuations, ensuring the stable operation of related equipment in the excitation system and reducing the risk of equipment failures due to power problems.
- Efficient Data Transmission: Two independent communication channels, combined with a 100Mbps bandwidth, can quickly process a large amount of data, meeting the stringent requirements of industrial automation systems for real – time data interaction and effectively improving the overall response speed of the system.
- Flexible Adaptability: It can adapt to the electrical parameters and environmental conditions of various industrial sites. With a wide input voltage range and a wide operating temperature range, it can work stably in different types of industrial scenarios without complex pre – adaptation debugging.
- Comprehensive Protection Mechanism: It has a variety of protection functions such as over – voltage, under – voltage, short – circuit, and thermal overload. When abnormal conditions occur, it responds quickly, automatically cuts off the circuit or adjusts the output, protecting itself and connected equipment from damage and extending the service life of the equipment.
