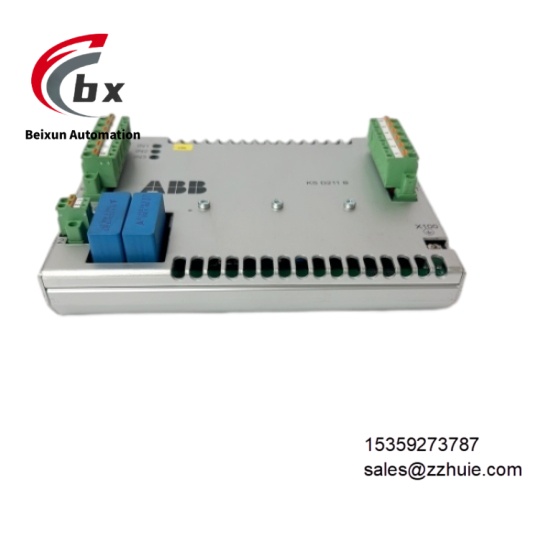

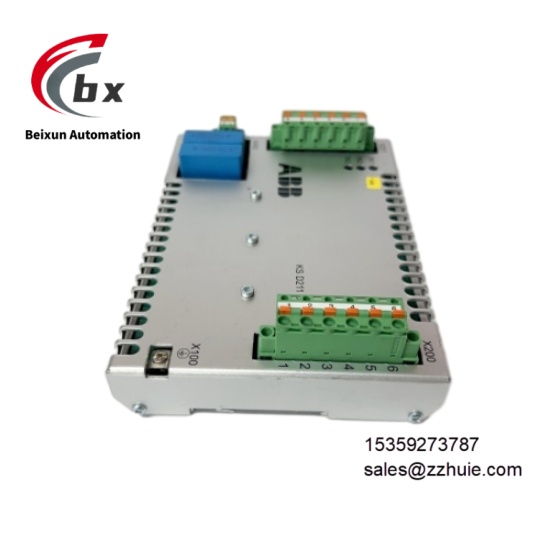

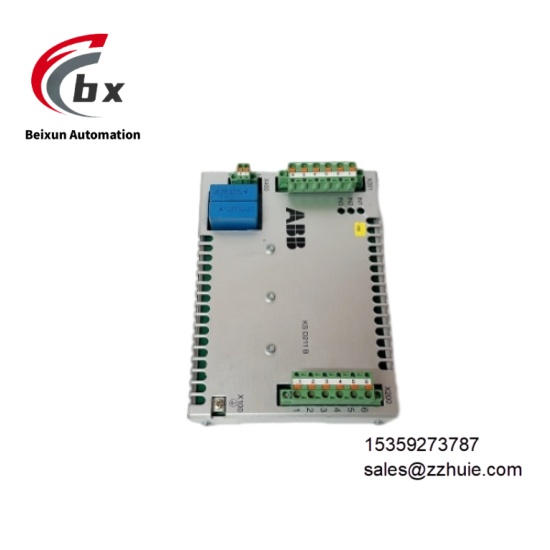

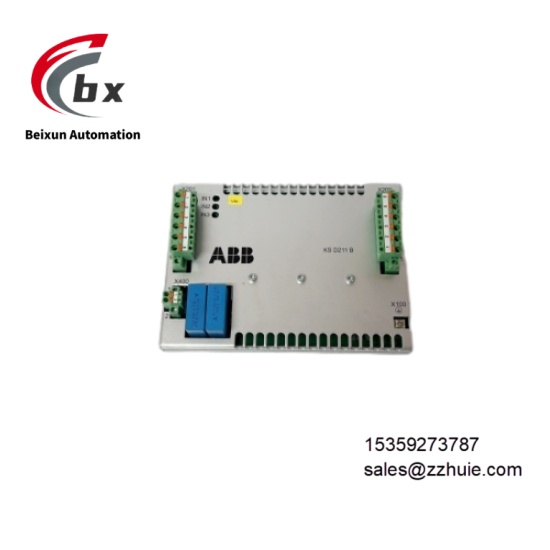

ABB KSD211B 3BHE022455R1101 Input coupling unit
Specific Parameters
Electrical Parameters
Operating Voltage 24VDC, supporting wide-range stable inputOutput Voltage 0~10VDC, meeting standard control signal requirementsMaximum Load Current 2A, adapting to various terminal devicesInput Signals Compatible with analog signals (voltage, current) and digital signals (switch signals)Output Signals Digital signals, supporting direct reading by controllersCommunication Protocols Supports Modbus RTU, Profibus, Ethernet/IP protocolsCommunication Interfaces RS485 serial interface, DB15 interfaceResolution 12-bit, measurement accuracy ±0.1%Isolation Level Independent isolation between input and output, up to 500VProtection Features Equipped with reverse polarity protection, overvoltage protection, short circuit protectionCertification Standards Compliant with relevant standards for industrial automation equipment
Mechanical Parameters
Overall Dimensions 100mm×70mm×35mm, compact structureWeight Approximately 0.5kg, facilitating installation and deploymentMounting Method 35mm DIN rail mounting, compatible with standard control cabinetsHousing Material Industrial-grade high-strength material, with both insulation and impact resistanceConnection Methods Plug-in terminals, DB15 connector, RS485 interfaceProtection Rating IP20, suitable for indoor control cabinet installation scenariosStatus Indication Equipped with power, operation, communication and fault status indicator lights
Environmental Parameters
Operating Temperature -20℃ to 70℃, no performance derating over the entire temperature rangeStorage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirementsRelative Humidity ≤95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance Complies with industrial standards, 3g acceleration at 3Hz-57Hz frequency range and 5g acceleration at 57Hz-500Hz frequency range (sine wave)Shock Resistance Withstands mechanical shocks during installation and transportation, with stable performanceEMC Compliance Excellent anti-external electromagnetic interference capability, adapting to complex industrial electromagnetic environments
Product Performance
Precise signal conversion: ±0.1% measurement accuracy combined with 12-bit resolution, accurately reflecting process variablesReliable isolation protection: 500V electrical isolation design, avoiding equipment damage from external interference and voltage impactWide communication compatibility: Supports multiple mainstream industrial protocols, seamlessly connecting to various control systemsFlexible modular design: Facilitates installation, maintenance and system expansion, reducing operation and maintenance costsStrong anti-interference capability: Multiple electromagnetic protection designs ensure stable signal transmission in harsh environmentsFast response speed: High-speed processor supports real-time signal collection and conversion, meeting dynamic control needsRedundancy configuration support: Adapts to redundant system architecture, improving operational reliability in critical scenariosOutstanding compatibility: Seamlessly integrates with ABB 800xA, UNITROL®6000 and other systems as well as various PLCs
