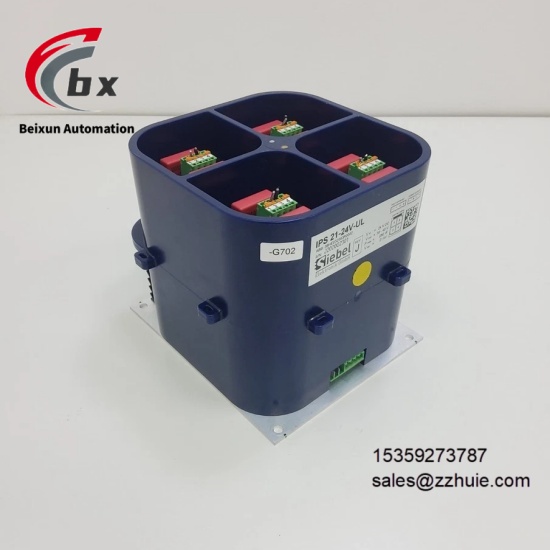

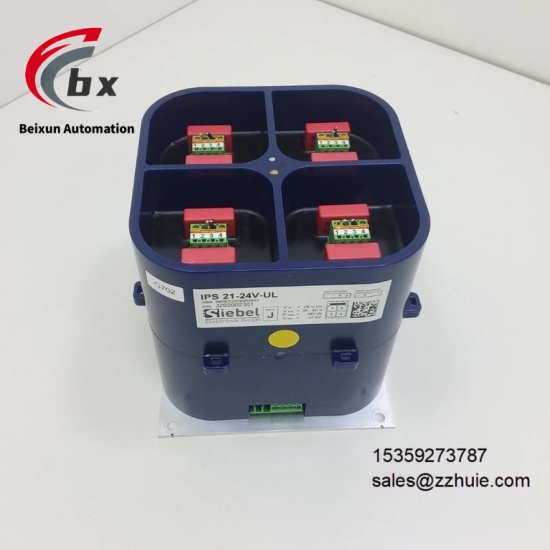

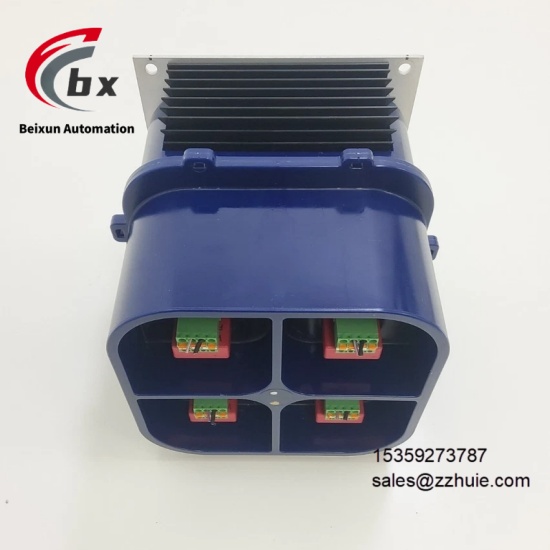

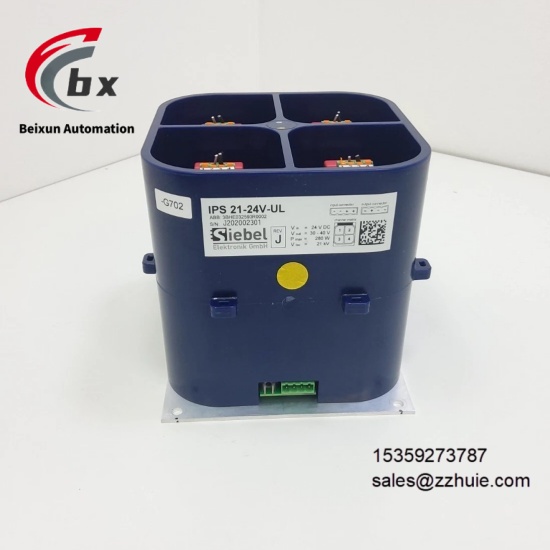

ABB IPS 21-24V-UL 3BHE032593R0002 High performance IGBT isolated power supply

ABB IPS 21-24V-UL 3BHE032593R0002 High performance IGBT isolated power supply

Specific Parameters

Brand ABB (ABB Group, Switzerland)

Product Series ABB IPS Power Supply Series

Product Type IGBT Isolated Power Supply, Industrial Switching Power Supply, Power Supply Component, Original Spare Part

Model ABB IPS 21-24V-UL 3BHE032593R0002

Country of Origin Sweden (Produced by ABB original factory)

Compatible Devices Various ABB Power Electronic Equipment, Industrial Automation Control Systems, IGBT Modules

Input Voltage 24VDC

Output Voltage 30-40VDC

Rated Power 280W

Insulation Level 21kV

Physical Dimensions 37.5cm×14.2cm×7.2cm

Physical Weight Approximately 1.48kg (Net Weight), Approximately 5.35kg (11.80lbs, Gross Weight)

Power Supply Mode DC Input, DC Output

Protection Functions Overcurrent Protection, Overvoltage Protection, Short Circuit Protection, Reverse Protection

Isolation Voltage DC1500V

Operating Temperature Range -20℃ to +60℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (To Be Installed in Closed Control Cabinet)

Mounting Method Rack Mounting

Protection Type Anti-Electromagnetic Interference, Insulation Protection, Moisture-Proof, Dust-Proof

Core Functions Stable Power Supply, Isolation Protection, Fault Protection, Efficient Power Conversion

Product Material Industrial-Grade Metal Shell, Flame-Retardant Circuit Board

Customizable No

Certification Standards CE, CQ, UL

Warranty Period 12 Months

Product Performance

ABB IPS 21-24V-UL 3BHE032593R0002 is an original ABB power supply with strong adaptability. It can be seamlessly integrated into various ABB power electronic equipment and industrial automation control systems, with convenient rack mounting, and can stably realize efficient power conversion and isolation protection to ensure the safety of equipment power supply.

Adopting an isolated design, the insulation level is as high as 21kV, the isolation voltage reaches DC1500V, and the anti-interference ability is excellent, which can effectively avoid the impact of external electromagnetic interference and voltage fluctuation on the stability of power supply, ensuring stable output voltage.

With a rated power of 280W, it has high power conversion efficiency, low energy consumption, stable input and output voltage, and can operate continuously for a long time. It integrates multiple protection functions, which can quickly respond to faults such as overcurrent, overvoltage and short circuit, avoiding equipment damage.

Industrial-grade packaging design, strong wide temperature adaptability, can operate stably in harsh industrial working conditions such as high temperature, high dust and strong electromagnetic interference for a long time, with a solid structure, convenient operation and maintenance, and complies with relevant industrial power supply standards.
